Specification

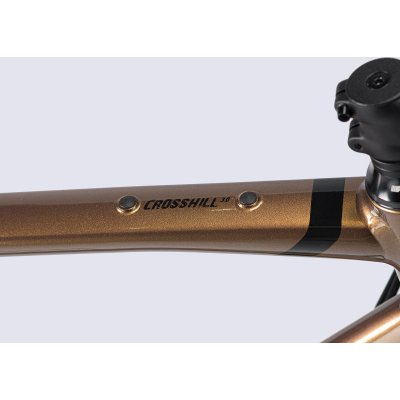

• Frame: Crosshill gravel Supreme 5 alloy internal cable routing
• Fork: Lapierre carbon blades, alloy steerer, 12mm thru axle
• Rear derailleur: Shimano Tiagra FD-R4700
• Front derailleur: Shimano Tiagra RD-R4700 GS 10s
• Crankset: FSA Omega Adventure MegaExo 46-30T, 170mm (XS/S), 172.5mm (M), 175mm (L/XL)
• Bottom bracket: FSA Road MegaExo
• Sprocket: Sunrace CSMS0 11-34T 10s
• Chain: KMC X10 silver/grey 1/2"x11/128" with CL566R link
• Brakes: Shimano Tiagra hydraulic brakes flat mount
• Discs: Shimano SM-RT30 160mm front/rear Center Lock
• Shifters / Brake levers: Shimano Tiagra ST-4720 2x10s
• Headset: FSA Orbit NO.57B semi-integrated

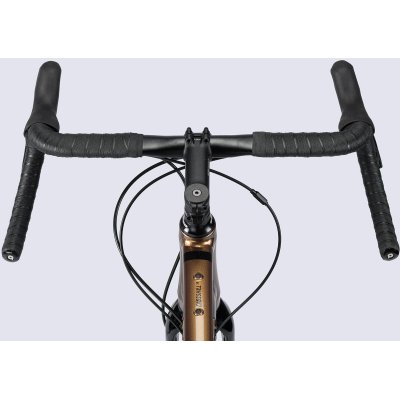

• Handlebar: Lapierre alloy gravel bar, Width: 420mm (XS/S), 440mm (M), 460mm (L/XL), Flare: 16°
• Bar tape: Lapierre elastomer tape black, shock proof, 3mm thick
• Stem: Lapierre alloy, 6°, Ø: 31.8mm, L: 90mm (XS/S), 100mm (M), 110mm (L), 120mm (XL)
• Seatpost: Lapierre alloy, Ø: 27.2mm, L: 350mm, O/S:12mm
• Saddle: Selle Royal Vivo co-branded saddle
• Front hub: Lapierre, Center Lock 32H 12mm E-thru axle
• Rear hub: Lapierre, Center Lock 32H 12mm E-thru axle
• Rims: Mavic XC621 32H 700c 21-622
• Tires: WTB Riddler 700x37c, Tan wall, Wire bead
• Pedals: Steel cage NW-91K
• Weight: 12 kg *
• Size: XS, S, M, L, XL
