The better sorted a bike is, the less you'll notice it when you're riding. That's why, for the compact-framed Stereo Hybrid 140 HPC SL 625, we began by choosing a Fox 34 Rhythm fork and matching Float DPS EVOL shock. Combined with the Newmen wheelset and Schwalbe 2.6in tyres, it's the closest thing to a magic carpet ride. Bosch's fourth-generation CX drive unit and 625Wh battery delivers your power to the trail via Shimano's slick-shifting, super-reliable XT 1x12 transmission. And strong, progressive Shimano XT four-piston hydraulic disc brakes with oversize rotors bring you safely to a stop, on demand. With a remote dropper post thrown into the mix, you'll be wondering how you ever managed without it. Simply add your spirit of adventure.

Features

• The Stereo Hybrid 140 HPC 625's compact dimensions give it an agility advantage over its larger stablemates, but with our Modular Battery System and a 625Wh power source you've got all the juice you need for your trail adventures.
• The battery and fourth-generation Bosch CX drive unit are protected from dust and moisture, of course.
• The Boost 148 rear axle, large pivot bearings and internal cable routing translate into great handling and lower maintenance.
• And our All Mountain Geometry is carefully designed to work with both the suspension kinematics and Bosch's drive system, so you end up with a bike that's stable, confidence-inspiring and fun.

Specification

• FRAME: C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing
• SIZE:27.5: XS (15"), S (17")
• FORK:Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm

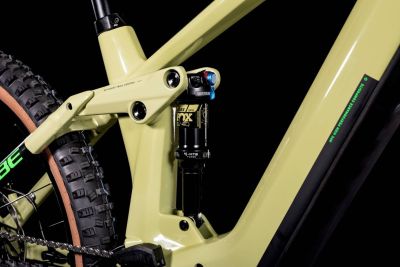

• SHOCK:Fox Float DPS EVOL, 185x55mm, Open/Medium/Firm Mode, Trunnion Mount
• SHOCK HARDWARE:Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
• DRIVE UNIT:Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
• BATTERY:Bosch PowerTube 625
• DISPLAY:Bosch Kiox
• CHARGER:Bosch 4A
• BRAKE SYSTEM:Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR:Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS:Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
• CRANKSET:ACID E-Crank, 165mm, 36T
• CHAIN GUIDE:e*thirteen Plus e*spec
• CASSETTE:Shimano Deore CS-M6100, 10-51T
• CHAIN:Shimano CN-M6100
• WHEELSET:Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TIRE:Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
• REAR TIRE:Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
• STEM:CUBE Performance Stem E-MTB, 31.8mm
• HANDLEBAR:Newmen Evolution SL 318.25, 760mm
• GRIPS:ACID Disrupt, Soft Compound
• SEAT POST:CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm)
• SEATCLAMP:CUBE Screwlock Semi Integrated, 34.9mm
• SADDLE:Natural Fit Venec
• HEADSET:ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• WEIGHT:23,8 kg

Geometry
