Race-inspired and mountain-ready, the Stereo Hybrid 160 HPC Actionteam 625 packs a powerful punch in a compact form. At its heart is Bosch's powerful fourth-generation CX drive unit and a 625Wh battery. Shimano's slick-shifting, reliable XT 1x12 transmission delivers your power to the trail via a light, tough Newmen Evolution wheelset shod with Schwalbe's Magic Mary SuperTrail and Big Betty SuperGravity 2.4in tyres. A Fox 38 Float Factory fork and Float X Factory shock soak up the hits, large and small. And the remote dropper and strong, dependable Shimano XT hydraulic disc brakes mean it's you calling the shots, not the trail.

Features

• Smaller and more agile than its larger-framed stablemates, the Stereo Hybrid 160 HPC 625's frame is designed to punch above its weight.
• With the 625Wh battery and fourth-generation Bosch drive unit housed entirely inside the down tube, it's as powerful as it is good to look at.
• Hidden by a cover with shock protection, push-button access and a hidden lock, the battery is both secure and easy to access.
• The trunnion shock mount, oversize linkage bearings, Boost 148 rear end and 1.5in head tube all contribute to accurate tracking, even when it's all coming at you thick and fast.
• And sorted, race-inspired geometry gives you the advantage you need to show the trail exactly who's boss.

Specification

• FRAME: C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing
• SIZE: S (16")
• FORK: Fox 38 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm, Kashima Coated
• SHOCK: Fox Float X Factory, 205x60mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
• BATTERY: Bosch PowerTube 625
• DISPLAY: Bosch Kiox
• CHARGER: Bosch 4A
• BRAKE SYSTEM: Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano XT SL-M8100-IR, Direct Attach
• CRANKSET: e*thirteen Plus Crank, 165mm, 36T
• CHAIN GUIDE: e*thirteen Plus e*spec
• CASSETTE: Shimano XT CS-M8100, 10-51T
• CHAIN: Shimano CN-M8100
• WHEELSET: Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TIRE: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
• REAR TIRE: Schwalbe Big Betty, Addix Soft, Super Gravity, Tubeless Easy, 2.4
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• HANDLEBAR: Newmen Advanced 318.25, Carbon, 780mm
• GRIPS: ACID Disrupt, Soft Compound
• SEAT POST: Fox Transfer Factory 31.6mm, Kashima Coated (S: 100mm)
• SEATCLAMP: CUBE Screwlock Semi Integrated, 34.9mm
• SADDLE: Natural Fit Venec
• HEADSET: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• WEIGHT: 24,2 kg

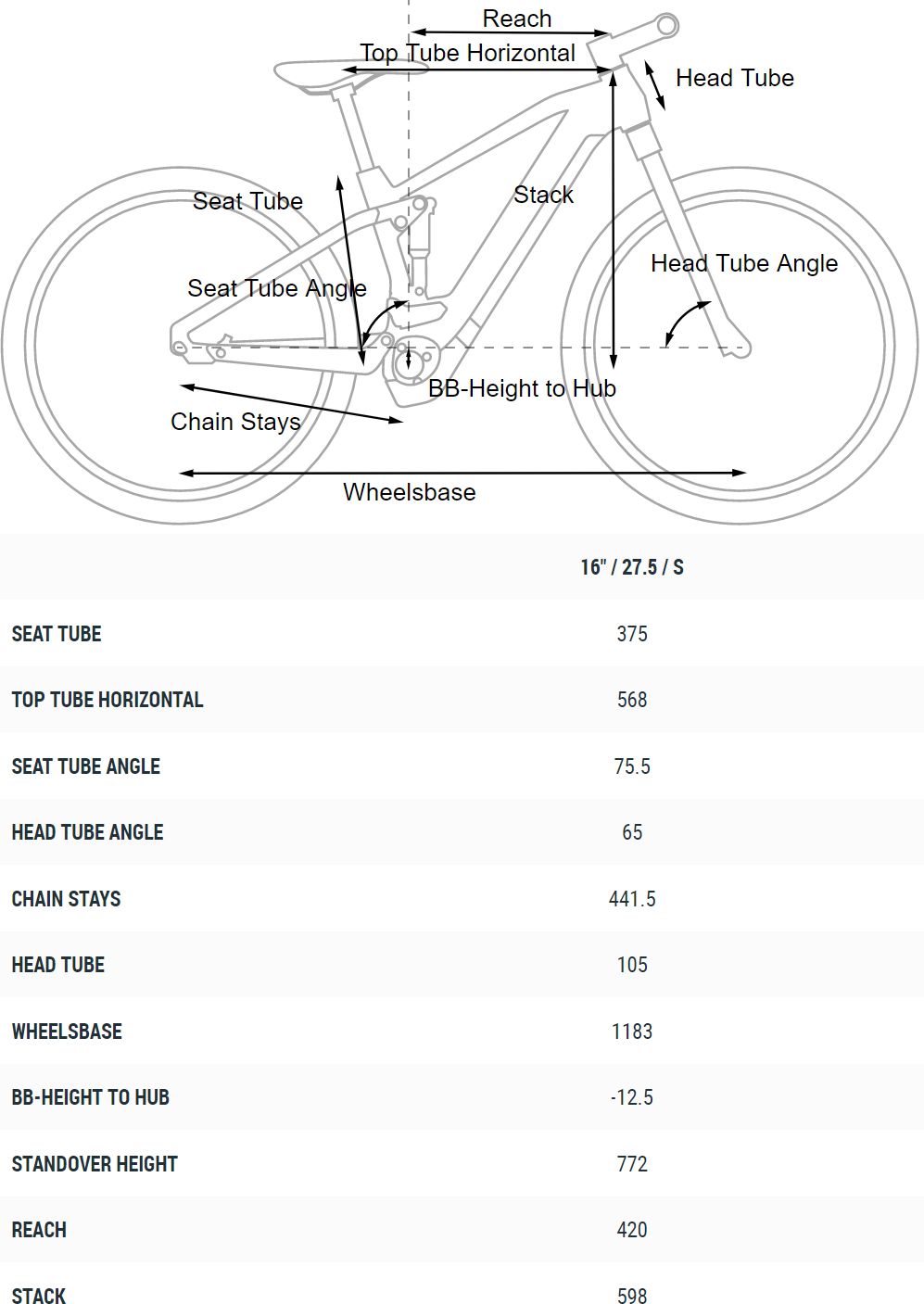

Geometry
