It may be more compact than its larger-framed stablemates, but the Stereo Hybrid 160 HPC TM 625 is no lightweight. Rock-solid handling from Fox's 38 Float Performance fork and Float X Performance piggyback shock is matched by the smooth power delivery of Bosch's fourth-generation drive system, backed by a 625Wh battery. Magura's MT7 hydraulic disc brake system - featuring two-piece discs - works with the Newmen wheelset and Maxxis Assegai 2.5in and DHR II 2.4in tyres to ensure you're always in full control. And the remote dropper post and accurate Sram GX Eagle 1x12 gears put even the toughest of trails within reach.

Features

• Smaller and more agile than its larger-framed stablemates, the Stereo Hybrid 160 HPC 625's frame is designed to punch above its weight.
• With the 625Wh battery and fourth-generation Bosch drive unit housed entirely inside the down tube, it's as powerful as it is good to look at.
• Hidden by a cover with shock protection, push-button access and a hidden lock, the battery is both secure and easy to access.
• The trunnion shock mount, oversize linkage bearings, Boost 148 rear end and 1.5in head tube all contribute to accurate tracking, even when it's all coming at you thick and fast.
• And sorted, race-inspired geometry gives you the advantage you need to show the trail exactly who's boss.

Specification

• FRAME: C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing
• SIZE: S (16")
• FORK: Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm

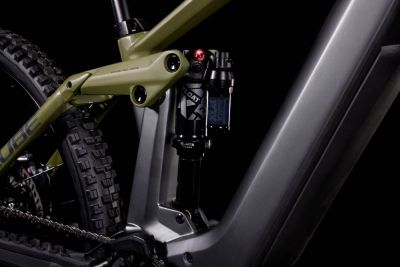

• SHOCK: Fox Float X, 205x60mm, Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
• BATTERY: Bosch PowerTube 625
• DISPLAY: Bosch Kiox
• CHARGER: Bosch 4A
• BRAKE SYSTEM: Magura MT7, Hydr. Disc Brake (203/203)

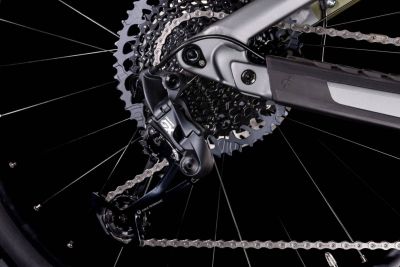

• REAR DERAILLEUR: Sram GX Eagle™, 12-Speed
• SHIFTERS: Sram GX Eagle™ Trigger, Single Click
• CRANKSET: ACID E-Crank, 165mm, 36T
• CHAIN GUIDE: e*thirteen Plus e*spec
• CASSETTE: Sram XG-1275 Eagle™, 10-52T
• CHAIN: Sram NX Eagle™
• WHEELSET: Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TIRE: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
• REAR TIRE: Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• HANDLEBAR: Newmen Evolution SL 318.25, 800mm
• GRIPS: ACID Disrupt, Soft Compound
• SEAT POST: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (S: 100mm)
• SEATCLAMP: CUBE Screwlock Semi Integrated, 34.9mm
• SADDLE: Natural Fit Venec
• HEADSET: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• WEIGHT: 24,2 kg

Geometry
