At CUBE we believe the bike should just get out of the way and let you enjoy the ride. That's why, with the brand-new Aim, we started with a Suntour 100mm suspension fork and 2.25in tyres - for grip, comfort and control. Shimano's 2x8-speed gears give you the range you need at the push of a button, and powerful flat mount disc brakes bring you safely to a stop. And SizeSplit, with a wider range of sizes than ever before, means every rider can find their ideal Aim.

Features

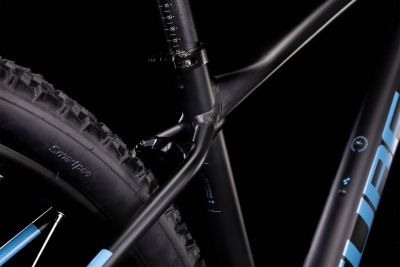

• Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
• It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.
• There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
• Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

Specification

• SIZE: Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22")
• FRAME: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• FORK: SR Suntour XCE, 100mm

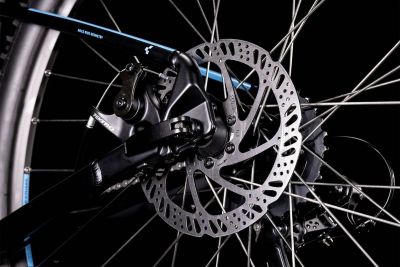

• BRAKE SYSTEM: Tektro MD-280/U310R, Mech. Disc Brake (160/160)
• REAR DERAILLEUR: Shimano RD-TX800, 8-Speed
• FRONT DERAILLEUR: Shimano FD-M315, Top Swing, 31.8mm Clamp
• SHIFTERS: Shimano SL-M315, Rapidfire-Plus
• CRANKSET: Shimano FC-M315, 36x22T
• CASSETTE: Shimano CS-HG200, 12-32T
• CHAIN: KMC Z8.3
• FRONT HUB: CUBE Alloy Light, QR, 6-Bolt
• REAR HUB: CUBE Alloy Light, QR, 6-Bolt
• RIMS: CUBE ZX20, 32H, Disc
• TYRES: CUBE IMPAC Smartpac, 2.25
• STEM: CUBE Performance Stem, 31.8mm
• HANDLEBAR: CUBE Rise Trail Bar, 680mm
• GRIPS: ACID React
• SEAT POST: CUBE Performance Post, 27.2mm
• SEATCLAMP: CUBE Varioclose, 31.8mm
• SADDLE: Natural Fit Venec Lite
• HEADSET: CUBE FPH863, Semi-Integrated
• PEDALS: CUBE PP MTB
• WEIGHT: 14,8 kg
