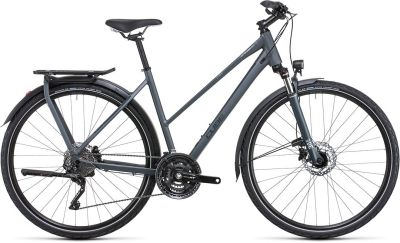

From zipping across town to tackling mountain passes you've never ridden before, the brand-new Kathmandu EXC is designed to get you there - and back - in comfort and style. We chose Shimano's 3x10 XT gears for their deserved reputation for reliability and ease of use. Then we added powerful Shimano hydraulic disc brakes, so you know you're in full control at all times. Finally, we selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With our redesigned Integrated Carrier 3.0 and a full complement of accessories - including mudguards, kickstand and lights - you've everything you need. Just jump on and go...

Features

• Completely redesigned for 2022, we've taken everything that's good about the Kathmandu and made it even better.
• So, for example, the reworked Integrated Carrier 3.0 is designed to work seamlessly with our Acid mudguard.
• We've fitted a flat mount for the rear disc brake - it also accommodates the kickstand - and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks.
• We also upgraded the rear end to a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden.
• With internal cable routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything.
• Just don't forget your toothbrush...

Specification

• FRAME: Aluminium Superlite, Trekking Comfort, IC 3.0, Double Butted
• SIZE: Men: XS (46cm), S (50cm), M (54cm), L (58cm), XL (62cm), Trapeze: XS (46cm), S (50cm), M (54cm)
• FORK: SR Suntour NCX D LO Air, 63mm, Lockout
• BRAKE SYSTEM: Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)

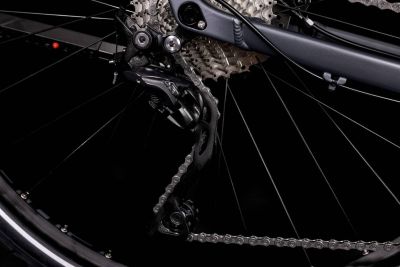

• REAR DERAILLEUR: Shimano XT RD-T8000, 10-Speed
• FRONT DERAILLEUR: Shimano Deore FD-T6000, Top-Swing, 31.8mm
• SHIFTERS: Shimano Deore SL-M6000, Rapidfire-Plus
• CRANKSET: Shimano XT FC-T8000, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard
• CASSETTE: Shimano CS-HG500, 11-34T
• CHAIN: KMC X10
• FRONT HUB: Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
• REAR HUB: Shimano FH-MT400, 12mm, Centerlock
• RIMS: CUBE EX21, 32H, Disc, Tubeless Ready
• TYRES: Schwalbe Range Cruiser, Active, K-Guard, 47-622
• STEM: CUBE Performance Stem Pro, 31.8mm
• HANDLEBAR: CUBE Comfort Trail Bar, 660mm
• GRIPS: Natural Fit Comfort
• SEAT POST: CUBE Performance Post, 27.2mm
• SEATCLAMP: CUBE Screwlock, 31.8mm
• SADDLE: Natural Fit Sequence Comfort
• HEADSET: VP Integrated, Top 1 1/8", Bottom 1 1/2"
• PEDALS: ACID PP Trekking
• FRONT LIGHT: CUBE IQ-XS-Friendly N plus
• REAR LIGHT: ACID Mudguard Rear Light PRO-D, 6V, AC
• KICKSTAND: ACID Pro Flat Mount Kickstand

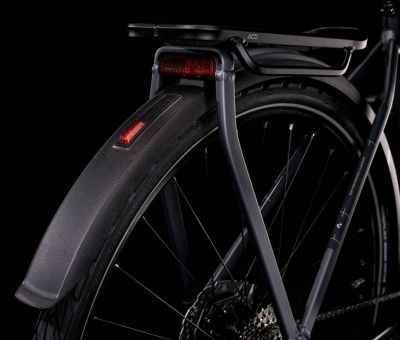

• MUDGUARDS: ACID 56 Integrated Carrier 3.0
• BELL: Knog Oi
• CARRIER: CUBE Integrated Carrier 3.0, ACID RILink Adapter Compatible
• WEIGHT: 15,5 kg
