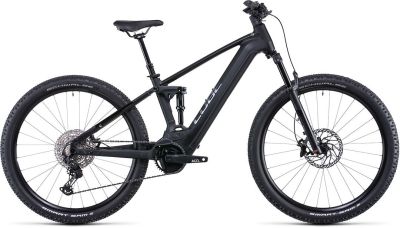

With our Stereo Hybrid 120 SL 750, your weekend riding just got a whole lot more interesting. From its dropper post to the four-piston Shimano hydraulic disc brakes with oversize rotors, we've carefully selected the perfect components to help you get the most out of your riding. The fourth-generation Bosch CX motor combined with a 750Wh battery and Shimano's slick-shifting XT 1x12 gears makes light work of any route. And Fox's brand-new 34 AWL fork - with 130mm travel - and Float DPS EVOL rear shock help keep the grippy, comfortable Schwalbe 2.6in tyres glued to the trail. The only remaining question is, where will your next adventure take you?

Features

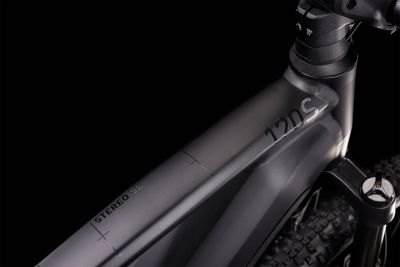

• Brand new for 2022, our Stereo Hybrid 120 SL 750 frame takes everything that's great about our popular, Bosch-powered trail explorer, and makes it better.
• With a 750Wh battery, you've more range than ever before to go further - and our Modular Battery System means it's both easy to get to and safely out of reach of dust and water.

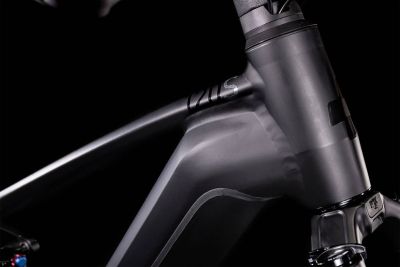

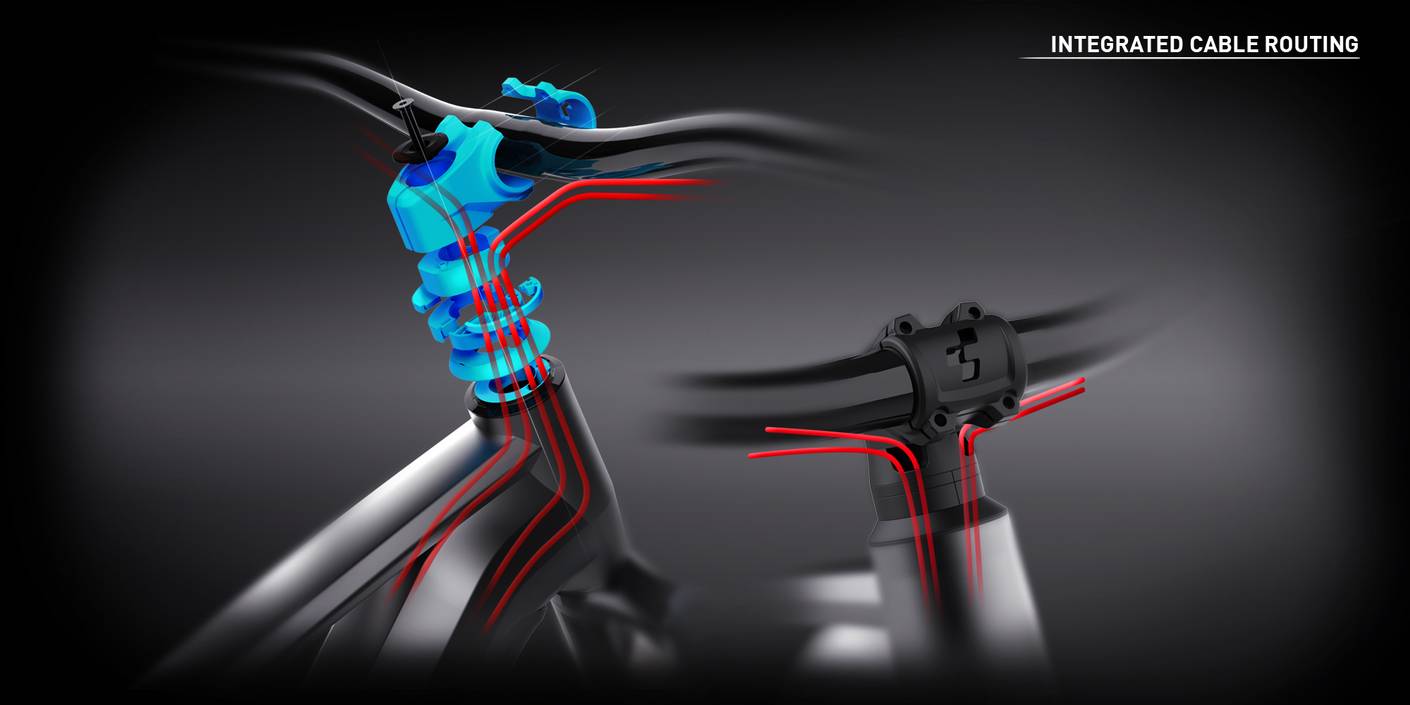

• Our integrated cable routing isn't just neat, it also means there are no cable holes in the head tube. Comfort Control Geometry puts you in control, while the refined four-bar suspension design keeps you isolated from trail shocks and vibration.
• We even made it simple to add accessories like mudguards, a luggage carrier and a kickstand.

Specification

• FRAME: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
• SIZE: 29: M (18"), L (20"), XL (22")
• FORK: Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 130mm

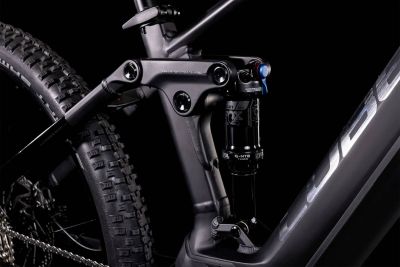

• SHOCK: Fox Float DPS EVOL, 185x55mm, Open/Medium/Firm Mode, Trunnion Mount
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 30x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
• BATTERY: Bosch PowerTube 750
• DISPLAY: Bosch Kiox 300
• CHARGER: Bosch 4A
• BRAKE SYSTEM: Shimano BR-MT520, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano Deore SL-M6100, Rapidfire-Plus

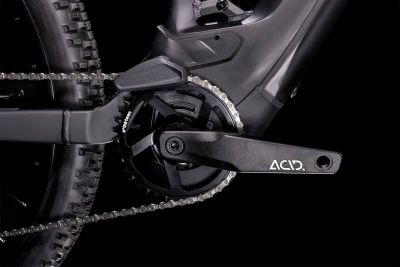

• CRANKSET: ACID E-Crank, 170mm, 38T
• CASSETTE: Shimano Deore CS-M6100, 10-51T
• CHAIN: Shimano CN-M6100
• WHEELSET: Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• TYRES: Schwalbe Smart Sam, Active, 2.6
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• HANDLEBAR: Newmen Evolution SL 318.25, 760mm
• GRIPS: Natural Fit All Terrain
• SEAT POST: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (M: 120mm, L, XL: 130mm)

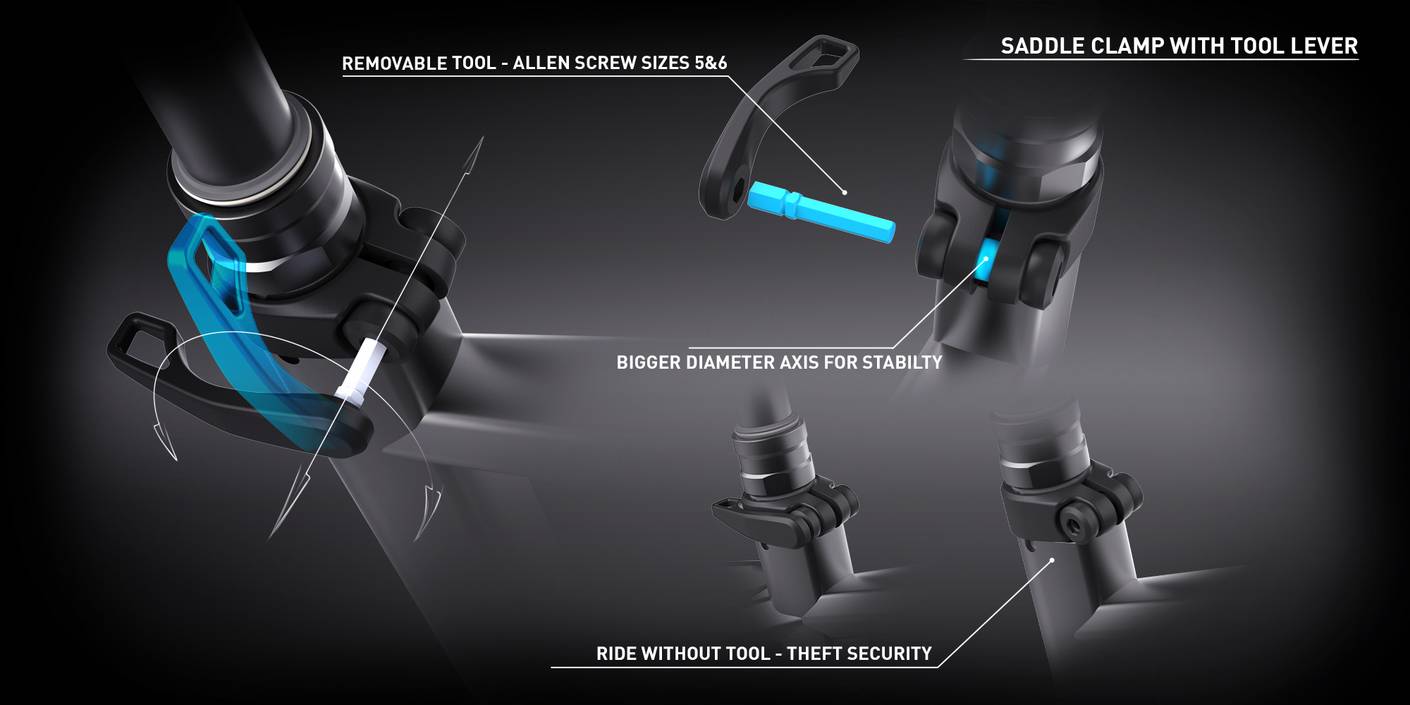

• SEATCLAMP: CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm
• SADDLE: Natural Fit Sequence
• HEADSET: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• PEDALS: CUBE PP MTB
• WEIGHT: 25,4 kg

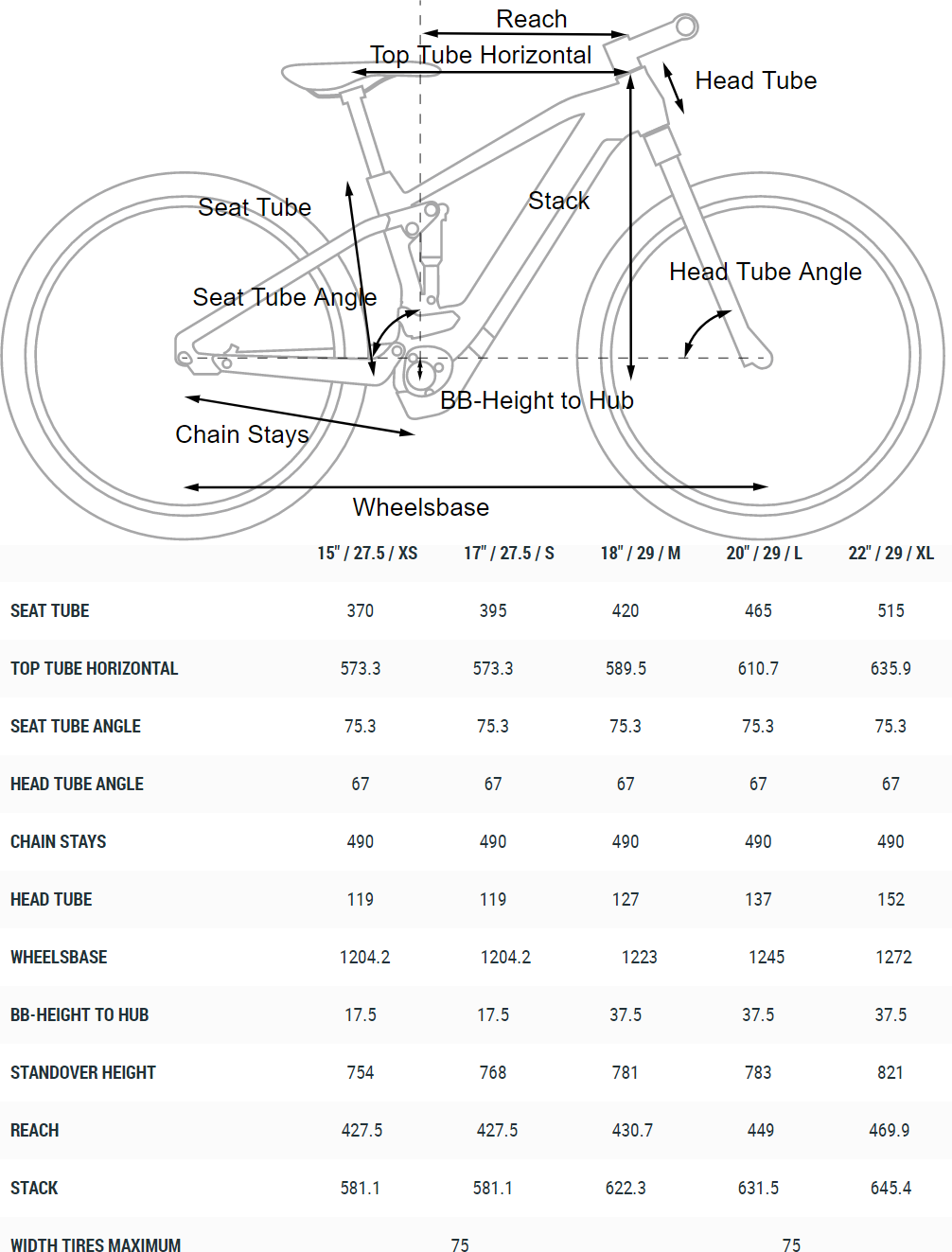

Geometry
