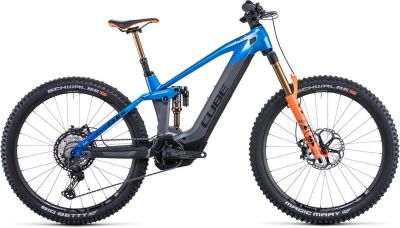

Small but perfectly formed, the Stereo Hybrid 140 HPC Actionteam 625 defines all-mountain e-mtb performance. Four-piston Shimano XT brake calipers harness the incredible grip of Schwalbe's Magic Mary SuperTrail and Big Betty SuperGravity 2.4in tyres to provide powerful speed control, no matter the conditions. Shimano XT 1x12 gears deliver the combined power of the fourth-generation Bosch CX drive unit and your pedalling to the Newmen Evolution wheelset, backed up by a 625Wh battery. And with a Fox 36 Float Factory fork, Float X Factory shock and remote dropper post, you'll soon discover that winning feeling out on the trail.

Features

• The Stereo Hybrid 140 HPC 625's compact dimensions give it an agility advantage over its larger stablemates, but with our Modular Battery System and a 625Wh power source you've got all the juice you need for your trail adventures.
• The battery and fourth-generation Bosch CX drive unit are protected from dust and moisture, of course.
• The Boost 148 rear axle, large pivot bearings and internal cable routing translate into great handling and lower maintenance.
• And our All Mountain Geometry is carefully designed to work with both the suspension kinematics and Bosch's drive system, so you end up with a bike that's stable, confidence-inspiring and fun.

Specification

• FRAME: C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing
• SIZE: 27.5: XS (15"), S (17")

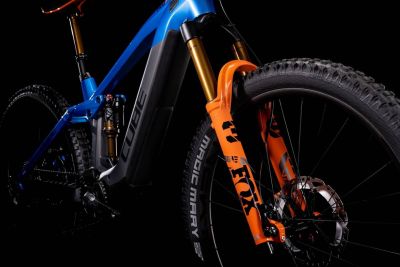

• FORK: Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated

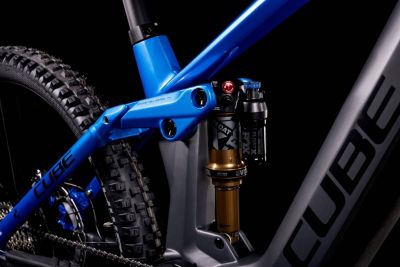

• SHOCK: Fox Float X Factory, 185x55mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
• BATTERY: Bosch PowerTube 625
• DISPLAY: Bosch Kiox
• CHARGER: Bosch 4A
• BRAKE SYSTEM: Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano XT SL-M8100-IR, Direct Attach

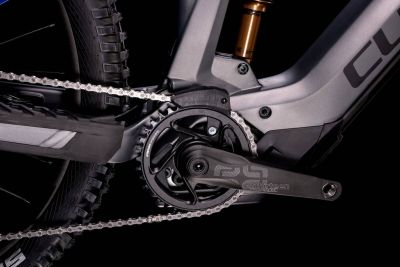

• CRANKSET: e*thirteen Plus Crank, 165mm, 34T
• CHAIN GUIDE: e*thirteen Plus e*spec
• CASSETTE: Shimano XT CS-M8100, 10-51T
• CHAIN: Shimano CN-M8100
• WHEELSET: Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TIRE: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
• REAR TIRE: Schwalbe Big Betty, Addix Soft, Super Gravity, Tubeless Easy, 2.4
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• HANDLEBAR: Newmen Advanced 318.25, Carbon, 780mm
• GRIPS: ACID Disrupt, Soft Compound

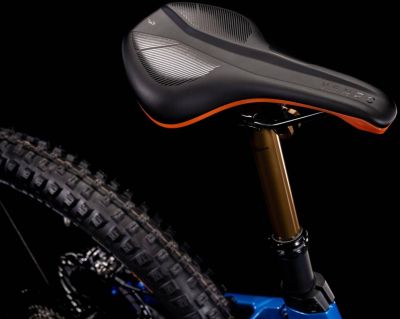

• SEAT POST: Fox Transfer Factory 31.6mm, Kashima Coated (XS: 100mm, S: 125mm)
• SEATCLAMP: CUBE Screwlock Semi Integrated, 34.9mm
• SADDLE: Natural Fit Venec
• HEADSET: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• WEIGHT: 24 kg
