Gunning for the race win or digging deep for a pr, this composite road racing bike gives you the speed, efficiency and control to push it to the limit, and then a little bit more.

Features

• Class-leading efficiency: With the highest pedalling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
• Advanced aerodynamics: This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
• Total control: Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.

Specifications

• Sizes: XS, S, M, M/L, L, XL
• Colours: Gloss Carbon Smoke / Knight Shield
• Frame: Advanced-Grade Composite, disc
• Fork: Advanced-Grade Composite, full-composite OverDrive steerer, disc
• Shock: N/A
• Handlebar: Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost: Giant Variant, composite, -5/+15mm offset
• Saddle: Giant Approach
• Pedals: N/A
• Shifters: Shimano 105
• Front Derailleur: Shimano 105
• Rear Derailleur: Shimano 105
• Brakes: Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
• Brake Levers: Shimano 105 hydraulic
• Cassette: Shimano 105, 11-speed, 11x30
• Chain: KMC X11EL-1
• Crankset: Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: Shimano, press fit
• Rims: Giant P-R2 Disc wheelset (22mm inner rim width)
• Hubs: Giant P-R2 Disc wheelset, 12mm thru-axle
• Spokes: Giant P-R2 Disc wheelset
• Tyres: Giant Course 1, tubeless, 700x25c (effective width 28mm), folding
• Extras: Factory tubeless set up including sealant, 32mm max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

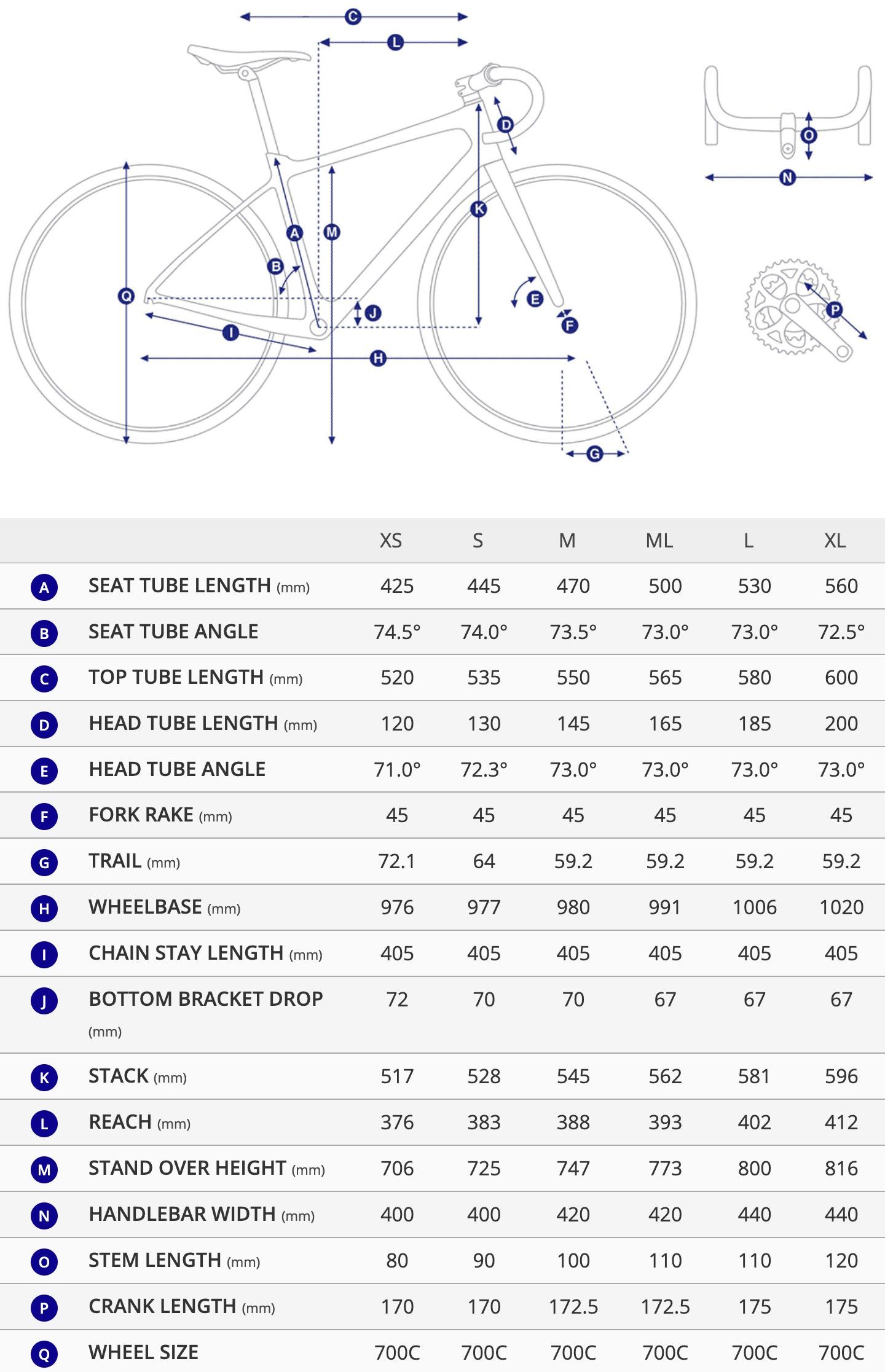

Geometry

Size Chart
