Climb, corner and descend with speed and efficiency. From the mountains to the flats, in all types of conditions, this lightweight composite road racer takes you to the next level.

Features

• Class-leading efficiency: With an impressive stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
• Advanced aerodynamics: This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
• Total control: Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Gloss Amber Glow / Matte Carbon
• Frame: Advanced-Grade Composite, disc
• Fork: Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
• Shock: N/A
• Handlebar: Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact SL S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost: Giant Variant, composite, -5/+15mm offset
• Saddle: Giant Fleet SL
• Pedals: N/A
• Shifters: Shimano Ultegra Di2 ST-R8170 2x12
• Front Derailleur: Shimano Ultegra Di2 FD-R8150
• Rear Derailleur: Shimano Ultegra Di2 RD-R8150 max 34T
• Brakes: Shimano Ultegra Di2 hydraulic, Shimano RT-MT800 rotors [F]160mm, [R]140mm
• Brake Levers: Shimano Ultegra Di2 hydraulic
• Cassette: Shimano Ultegra, 12-speed, 11x30
• Chain: Shimano Ultegra
• Crankset: Shimano Ultegra, 36/52 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: Shimano, press fit
• Rims: Giant SLR 1 42 Carbon Disc Hookless WheelSystem (19mm inner rim width)
• Hubs: Giant SLR 1 42 Carbon Disc WheelSystem, 12mm thru-axle
• Spokes: Giant SLR 1 42 Carbon Disc WheelSystem
• Tyres: CADEX Race, tubeless, 700x25c (effective width 26.5mm), folding
• Extras: RideSense Bluetooth/ANT+, computer mount, factory tubeless set up including sealant, 32mm max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

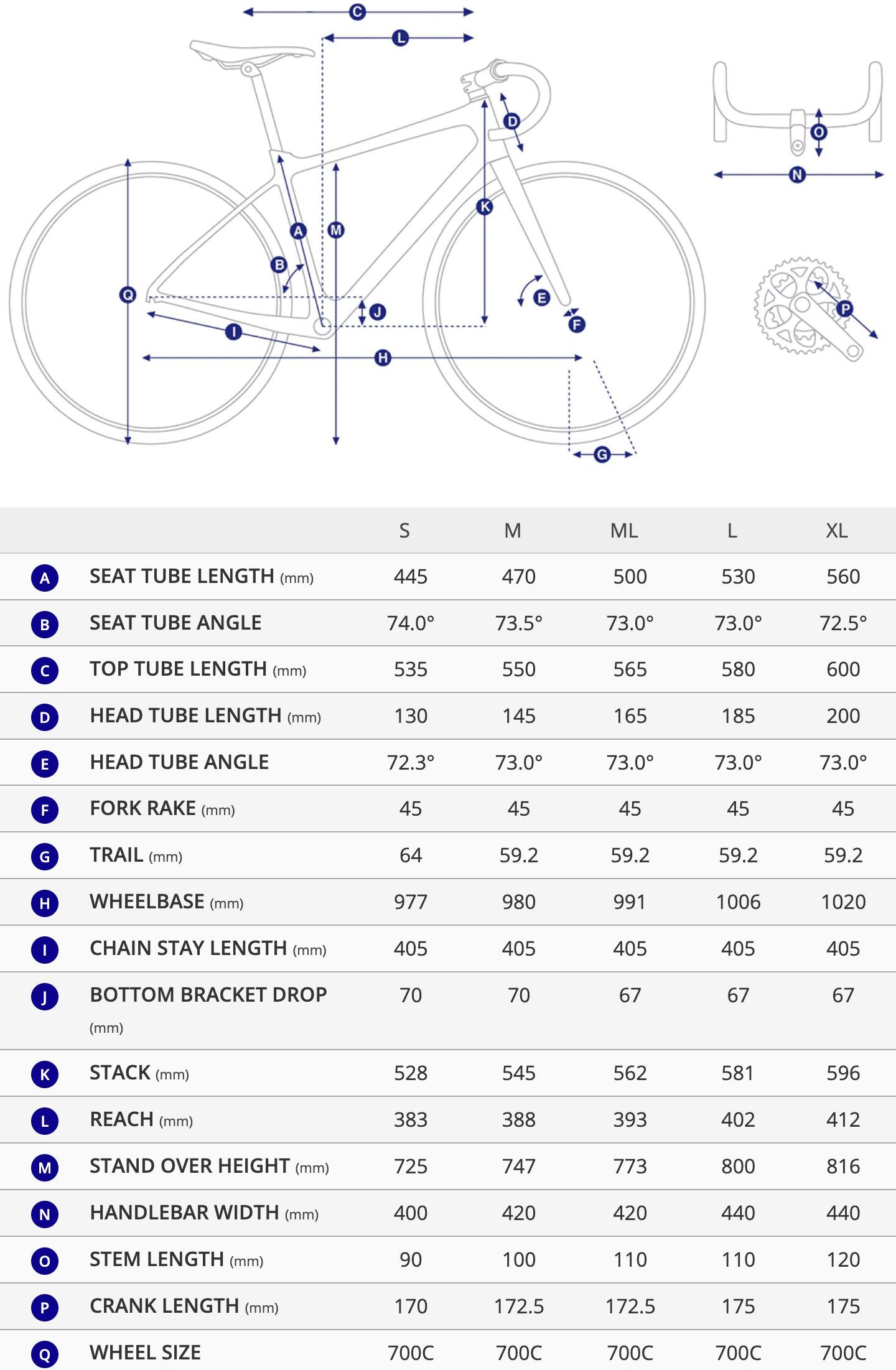

Geometry

Size Chart
