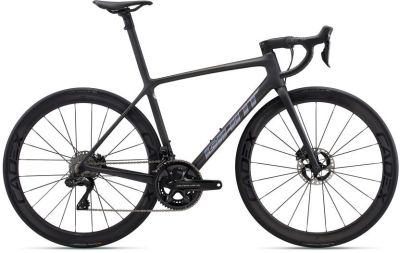

Climb, corner and descend with speed and efficiency. From the mountains to the flats, in all types of conditions, this lightweight composite road racer takes you to the next level.

Features

• Class-leading efficiency: With an impressive stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
• Advanced aerodynamics: This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
• Total control: Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.

Specifications

• Sizes: S, M, M/L, L
• Colours: Matte Raw Carbon / Iris / Reflective Silver
• Frame: Advanced SL-Grade Composite, integrated seatpost, disc
• Fork: Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
• Shock: N/A
• Handlebar: Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact SLR S:90mm, M:100mm, M/L:110mm, L:110mm
• Seatpost: Advanced SL-Grade composite, integrated design, -5/+15mm offset
• Saddle: Giant Fleet SLR
• Pedals: Not Included
• Shifters: Shimano Dura-Ace Di2 ST-R9270 2x12
• Front Derailleur: Shimano Dura-Ace Di2 ST-R9250
• Rear Derailleur: Shimano Dura-Ace Di2 ST-R9250 max 34T
• Brakes: Shimano Dura-Ace Di2 hydraulic, Shimano RT-MT900 rotors [F]160mm, [R]140mm
• Brake Levers: Shimano Dura-Ace Di2
• Cassette: Shimano Dura-Ace, 12-speed, 11x34
• Chain: Shimano Dura-Ace M9100
• Crankset: Shimano Dura-Ace, 36/52 with FC-9200P power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm
• Bottom Bracket: Shimano, press fit
• Rims: CADEX 42 Disc Hookless WheelSystem (19mm inner rim width)
• Hubs: CADEX 42 Disc WheelSystem, 12mm thru-axle
• Spokes: CADEX 42 Disc WheelSystem
• Tyres: CADEX Race, tubeless, 700x25c (effective width 26.5mm), folding
• Extras: Computer mount, factory tubeless set up including sealant, 2 ISP clamps plus shims, 32mm max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.:

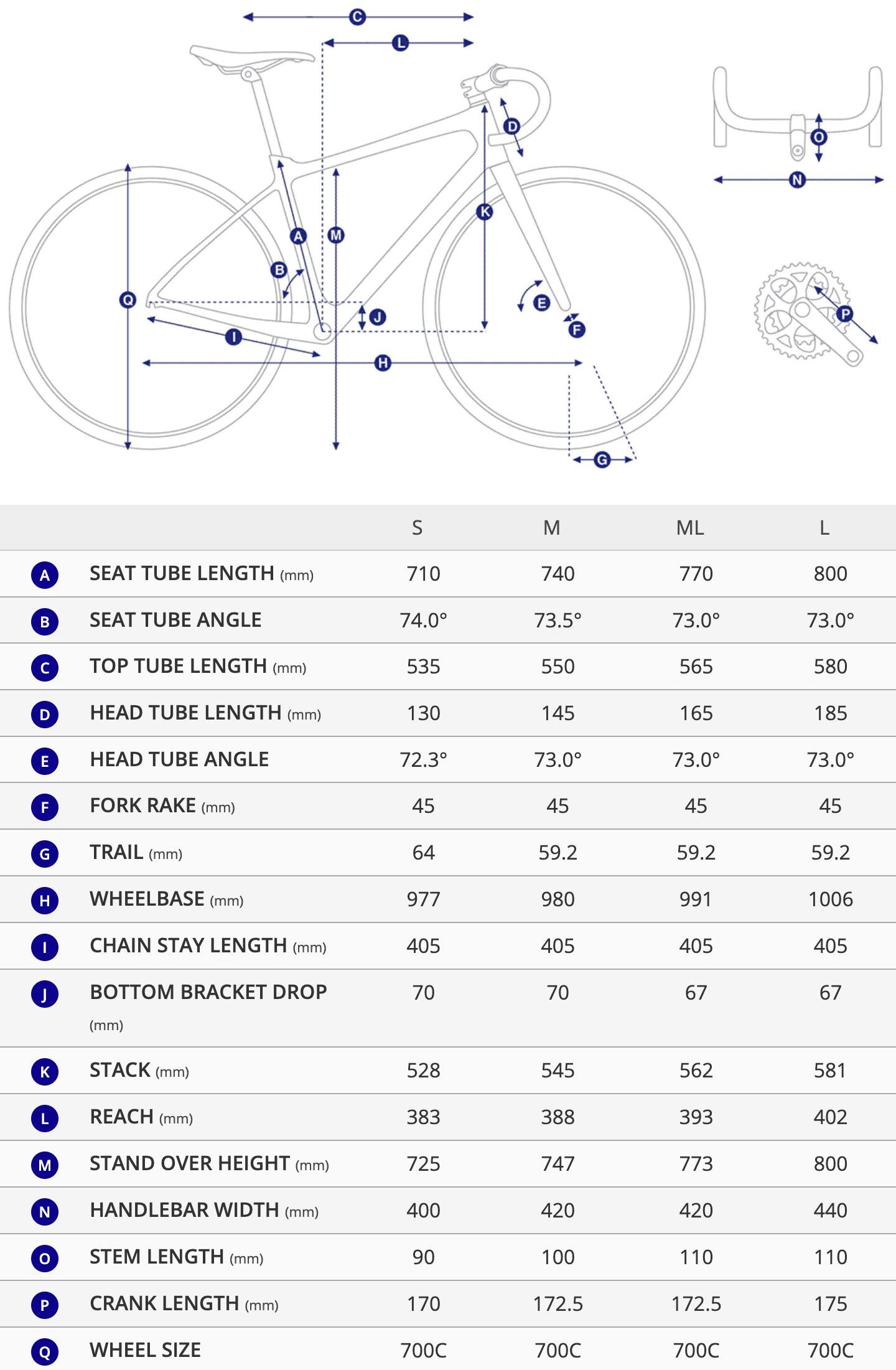

Geometry

Size Chart
