Now lighter, smoother and more adaptable to variable terrain, this all-new, ready-for-anything gravel bike combines ultra-efficient performance with next-level control.

Features

• Lightweight efficiency: New Advanced composite frame and Advanced SL composite fork save a combined 200 grams compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper headtube angle for improved acceleration and climbing.
• Tuned compliance: New frame features a lower seatstay junction with smaller diameter tubes to absorb road shocks and vibrations. Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimize compliance without sacrificing stiffness while cornering, sprinting or climbing.
• Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Matte Carbon / Gloss Black

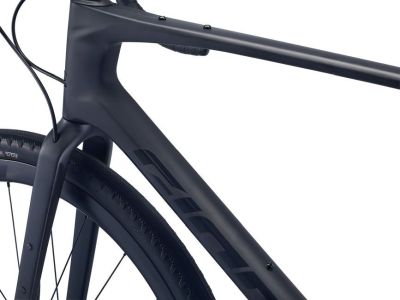

• Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout

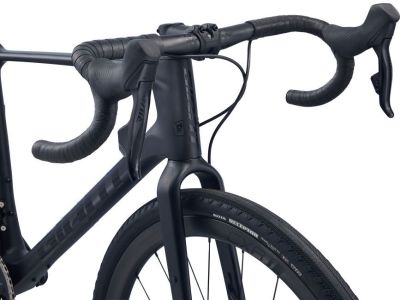

• Fork: Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Shock: N/A

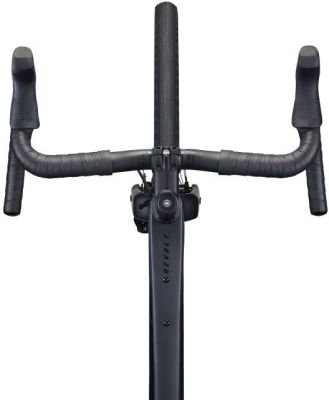

• Handlebar: Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost: Giant D-Fuse SLR, composite, -5/+15mm offset
• Saddle: Giant Approach SL
• Pedals: N/A
• Shifters: SRAM Rival eTap AXS, 2x12
• Front Derailleur: SRAM Rival eTap AXS

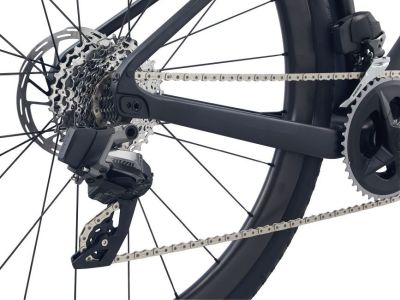

• Rear Derailleur: SRAM Rival eTap AXS Max 36T
• Brakes: SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers: SRAM Rival eTap AXS hydraulic
• Cassette: SRAM Rival, 12-speed, 10x36
• Chain: SRAM Rival D1
• Crankset: SRAM Rival D1 DUB, 30/43 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant CXR 1 Carbon Disc WheelSystem, 25mm inner rim width
• Hubs: Giant CXR 1 Carbon Disc WheelSystem
• Spokes: Giant CXR 1 Carbon Disc WheelSystem
• Tyres: Maxxis Receptor, 700x40c, tubeless
• Extras: Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 42mm max tyre size in "short" flip chip position
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.:

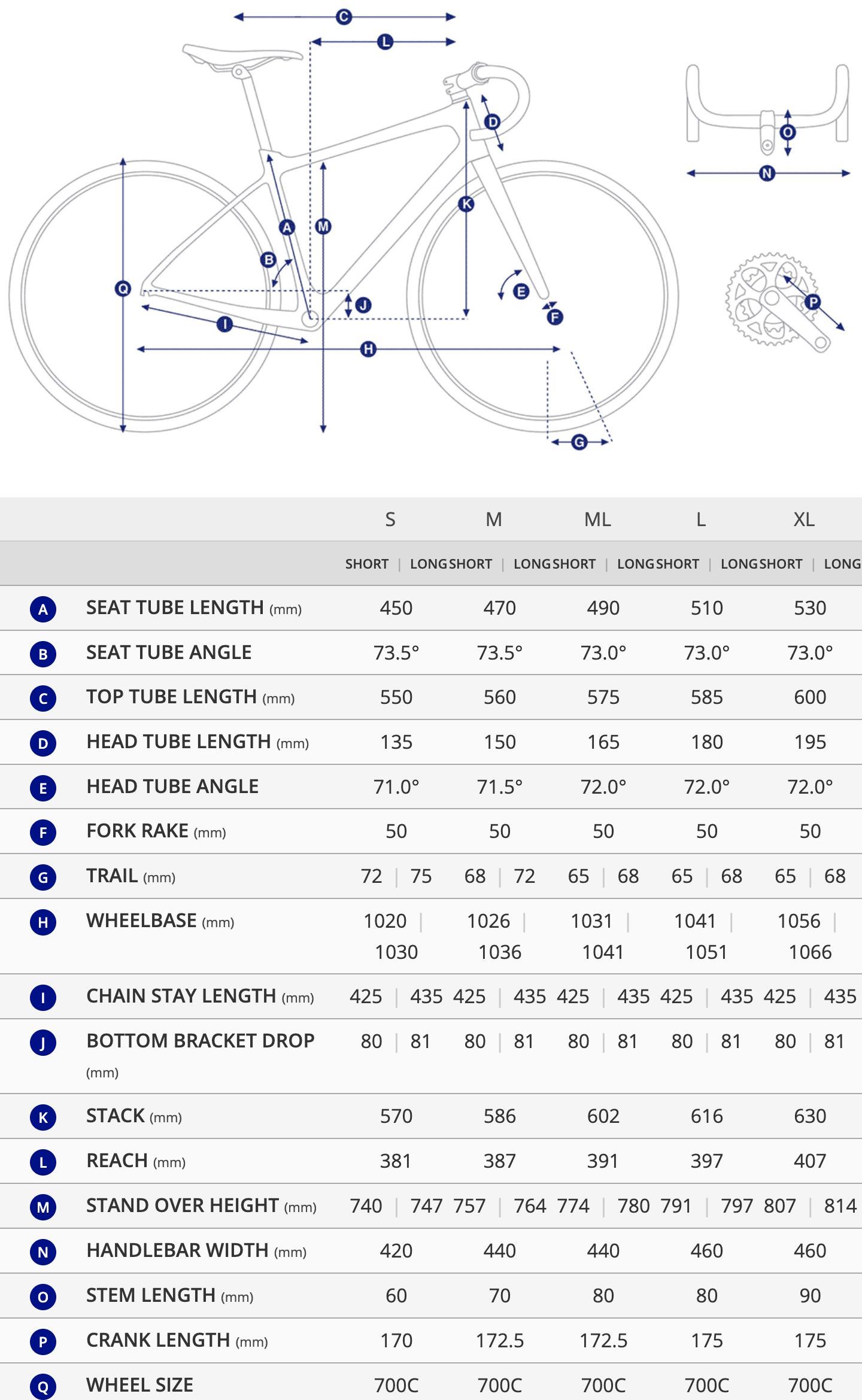

Geometry

Size Chart
