From high alpine climbs to sprints and solo rides, this is the road bike frame of choice for ultralight weight, super-stiff pedaling transmission and aero efficiency.

Features

• Class-leading efficiency: With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered for superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
• Advanced Aerodynamics: This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
• Total Control: Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Matte Raw Carbon / Gloss Black Diamond

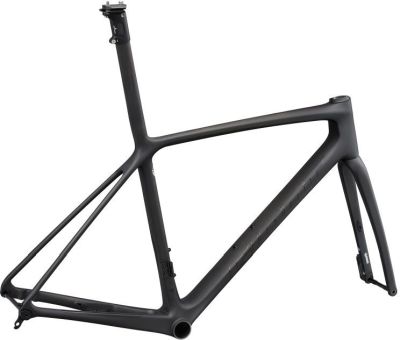

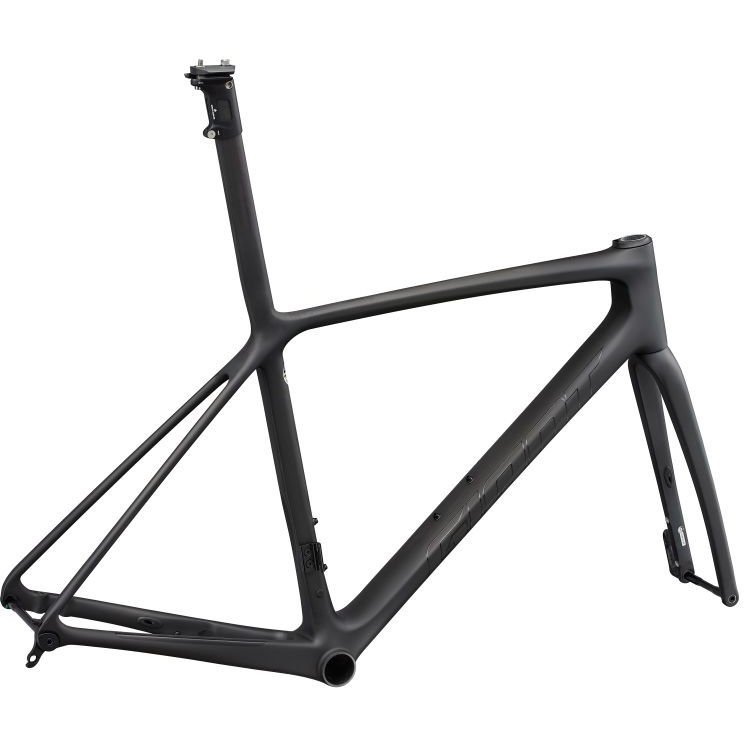

• Frame: Advanced SL-Grade Composite, integrated seatpost, disc
• Fork: Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
• Shock: N/A
• Seatpost: Advanced SL-Grade composite, integrated design, -5/+15mm offset
• Extras: 2 ISP clamps plus shims, thru-axles, headset plus spacers, RideSense Bluetooth/ANT+, 32mm max tyre size, SRAM eTap or Shimano Di2 shifting only.
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

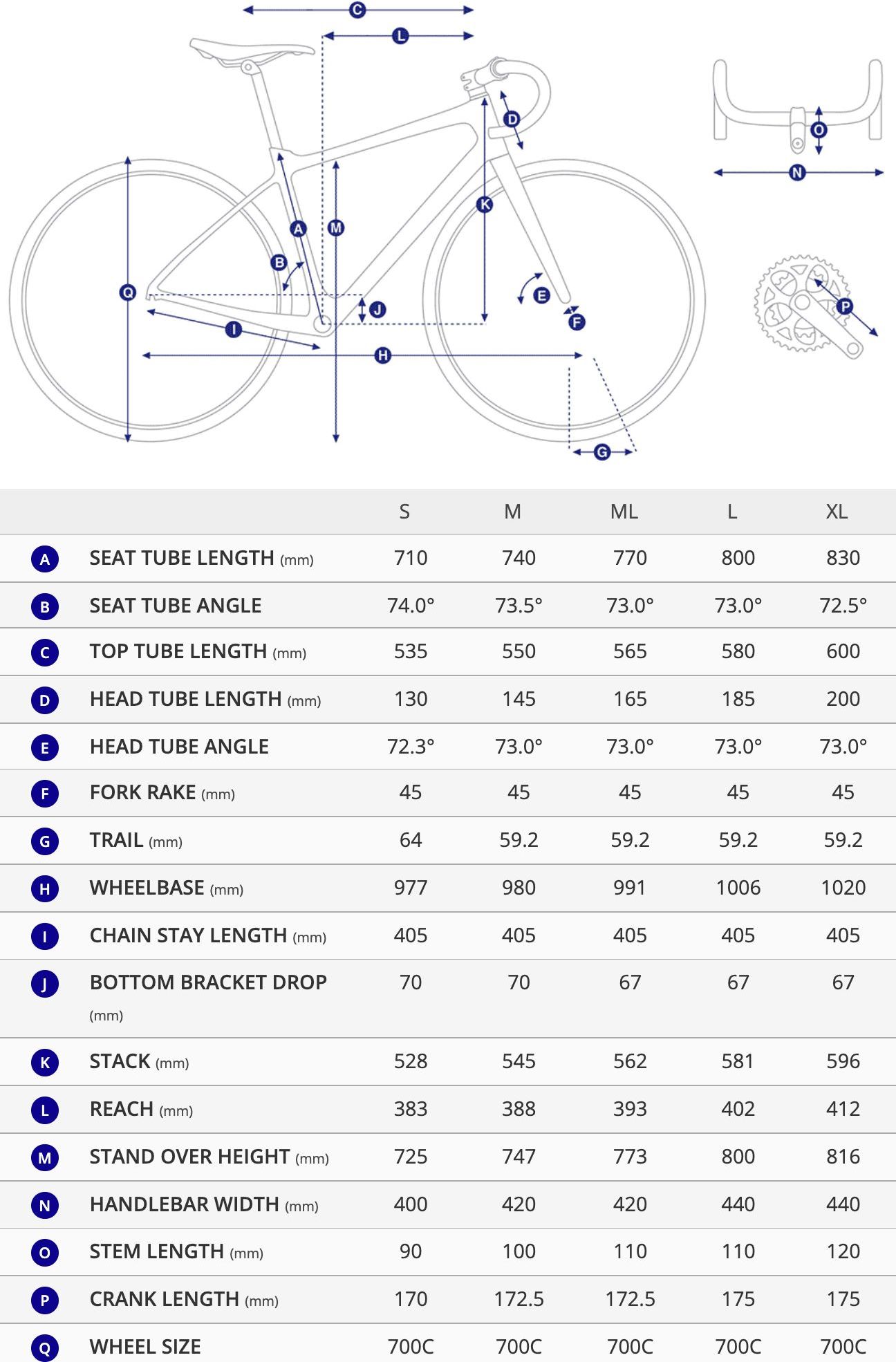

Geometry

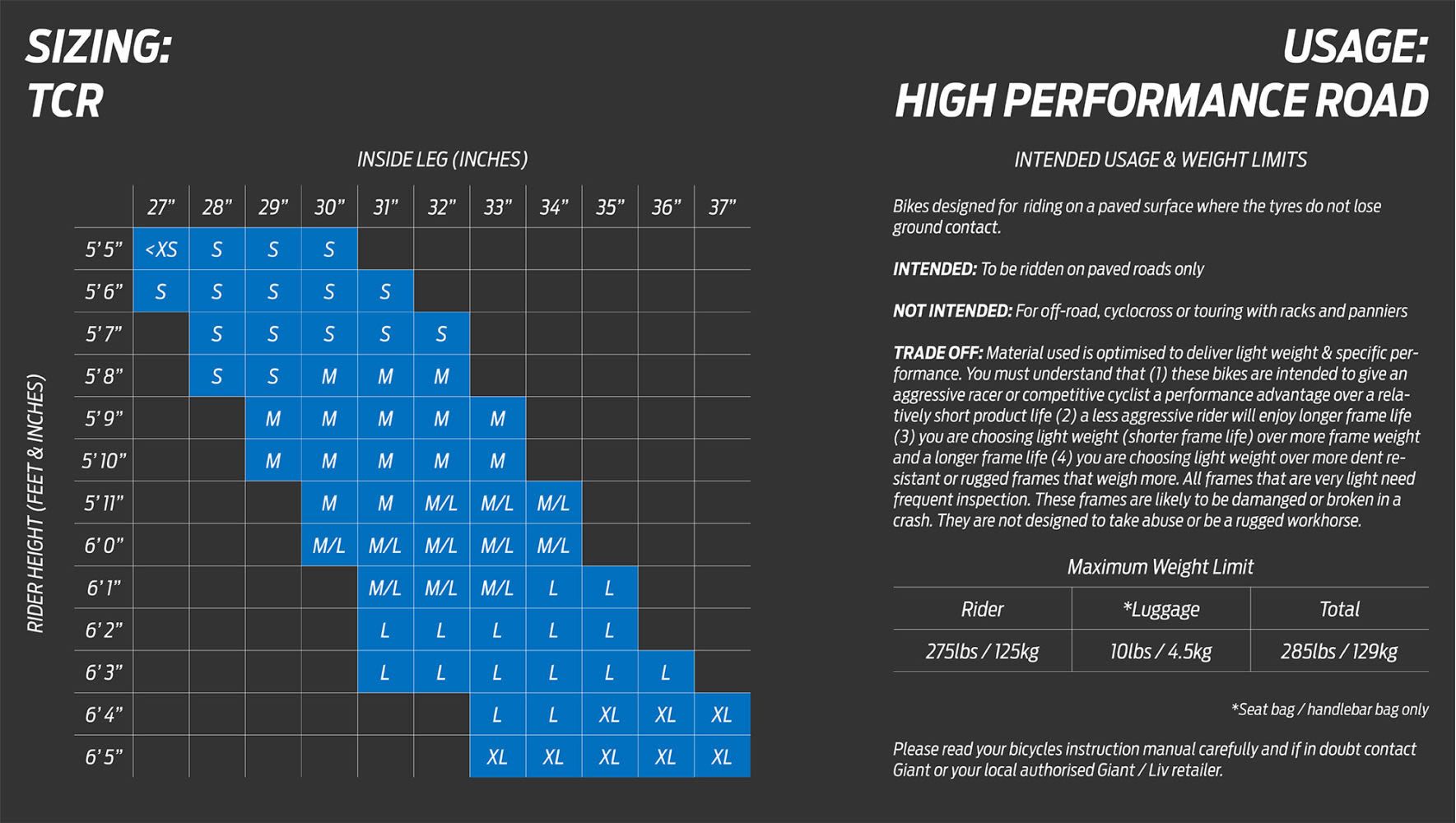

Size Chart
