Anywhere and everywhere – jump lines, street jibs, skatepark flow, pump-track laps, whatever. Dave’s into it.

Features

• Durable SmartForm C3 Alloy frame w/ Integrated Chain Tensioners
• Manitou Circus Expert 100mm air fork
• Maxxis DTH tires / Tektro cable-actuated disc brake

Specifications

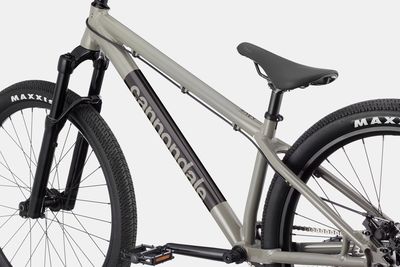

• Frame: C3 Alloy, Threaded BB, Disc Brake Mount, Integrated 1-1/8""-1.5"" Tapered Headtube, 3/8"" Dropout w/ Integrated Chain Tensioners
• Fork: Manitou Circus Expert, Air w/ Rebound Adjust, 100mm, 20mm Thru Axle, 1-1/8""-1-1/2"" Tapered Steerer, Preload Adjust, Black Stanchions
• Rear Shock: Null
• Rims: Alloy, double wall, 32h
• Hubs: (F) Formula 20x110mm Boost thru-axle / (R) Sealed bearing cassette, 3/8x17mm female bolt
• Spokes: Stainless steel, 14g
• Tires: Maxxis DTH 26 x 2.3""
• Pedals: Low profile alloy with grippy pins, boron axle
• Crank: Tubular Cr-Mo 3pc., 170mm Arms, Cold Forged CR-MO 22mm x 8T Spline Spindle, 28T
• Bottom Bracket: BMX Euro Type w/ Solid Spindle
• Chain: KMC HL1 Wide
• Rear Cogs: Sunrace 13T
• Front Derailleur: N/A
• Rear Derailleur: N/A
• Shifters: N/A
• Handlebar: Cannondale 3 Riser, 6061 Alloy, 30mm rise, 8° sweep, 6° rise, 780mm
• Grips: Fabric Funguy
• Stem: Cannondale 3, 6061 Alloy, 31.8, 0°

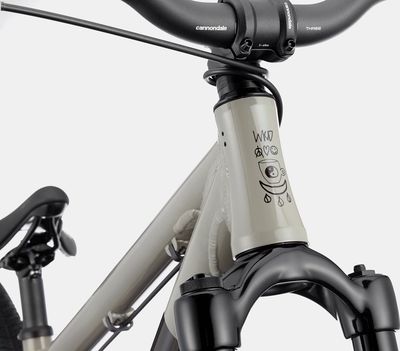

• Headset: Integrated Sealed Bearing, Tapered
• Brakes(R) Tektro mechanical disc, 160mm rotor
• Brake Levers: Tektro 2 finger
• E-Bike Display: Null
• E-Bike Battery: Null
• E-Bike Charger: Null
• E-Bike Drive Unit: Null

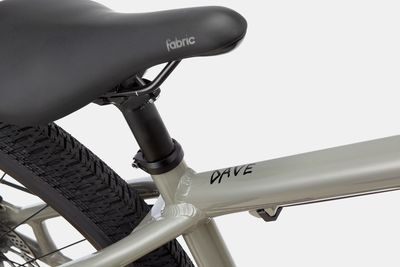

• Saddle: Fabric Magic Steel, steel rails
• Seatpost: Cannondale 3, 6061 Alloy, 27.2 x 200mm
• Speeds: 1
• Extras: 0
• Sizes Available: One Size
• Chain Device: 0
• Connectivity: Null
• Consumer Name 1: Dave
• Consumer Name 2: Dirt Jump
• Electric: No
• Fork Travel: 100mm
• Frame Travel: Null
• Front Tire Size: 2.3
• Material: Aluminum
• Tire Size: 2.3
• Wheel Size: 26

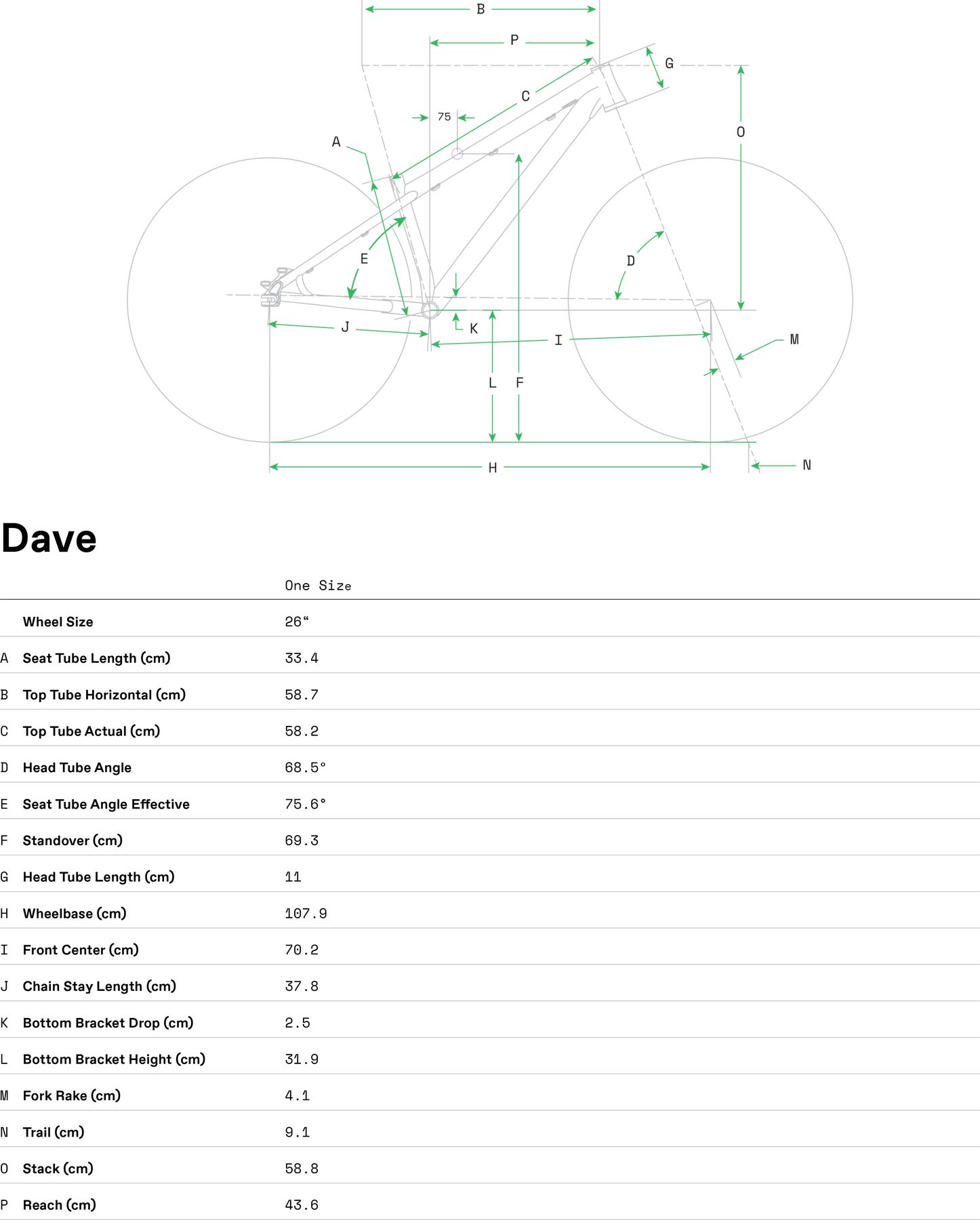

Geometry
