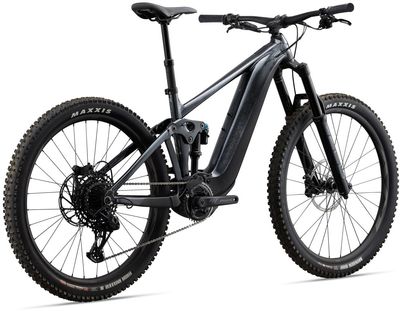

Every trail, every steep climb, every thrilling descent. Tested and developed by Gant’s e-Bike enduro pros, this updated trail ripper gives you the power to enjoy the best parts of the ride again and again.

A 29-inch front wheel and 27.5-inch rear wheel work together to offer superior handling and agility on technical terrain. The updated frameset features new geometry with a shorter rear end and longer reach. New control units include RideControl Go, which is integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grip. A new flip chip feature lets you adjust frame geometry for riding style and terrain.

Features

• Trail technology: Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents.
• Total control: RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
• Long-lasting power: Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak

Specifications

• Motor: SyncDrive Pro, 85Nm, powered by Yamaha
• Controller: RideControl Ergo 3, grip integrated
• Display: RideControl GO, frame integrated LED displayANT+ Wireless display compatible
• Battery: EnergyPak Smart 625WhEnergyPak Plus range extender compatible
• Charger: EnergyPak 6A smart charger
• Sizes: S, M, L, XL
• Colours: Black Diamond
• Frame: ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, UDHTM derrailleur hanger
• Fork: RockShox ZEB Select 29er, 170mm travel, Charger RC damper, 15x110 Boost, Maxle Stealth, E bike approved
• Shock: Fox Float DPX2 Performance, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned
• Handlebar: Giant Contact Trail, 35x800mm
• Grips: Giant Tactal Pro-E, single lock-onl
• Stem: Giant Contact SL 35
• Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
• Saddle: Giant Romero Trail
• Pedals: Flat pedal
• Shifters: SRAM NX
• Front Derailleur: MRP 1X HD2 custom co-molded chain guide
• Rear Derailleur: SRAM GX 12-speed
• Brakes: SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]
• Brake Levers: SRAM Code R
• Cassette: SRAM PG-1230, 11-50T, 12-speed
• Chain: SRAM NX Eagle PowerLock
• Crankset: SRAM X-Sync Eagle 36T chainring Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)
• Bottom Bracket: -
• Rims: Giant AM 29"[F] 27.5"[R], Tubeless ready, 30mm inner width
• Hubs: Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, , [F] 110x15 [R] 148x12mm Thru-axle
• Spokes: Sapim E-Lite [r] Race [f]
• Tyres: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
• Extras: Tubeless kit (liquid, valves, levers, manual, tool)
• Lighting: Optional:- Giant Recon series e-bike lights available and direct connectable
• Lock: Torx 25 Battery Lock with built-in Torque limiter
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Additional Information

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

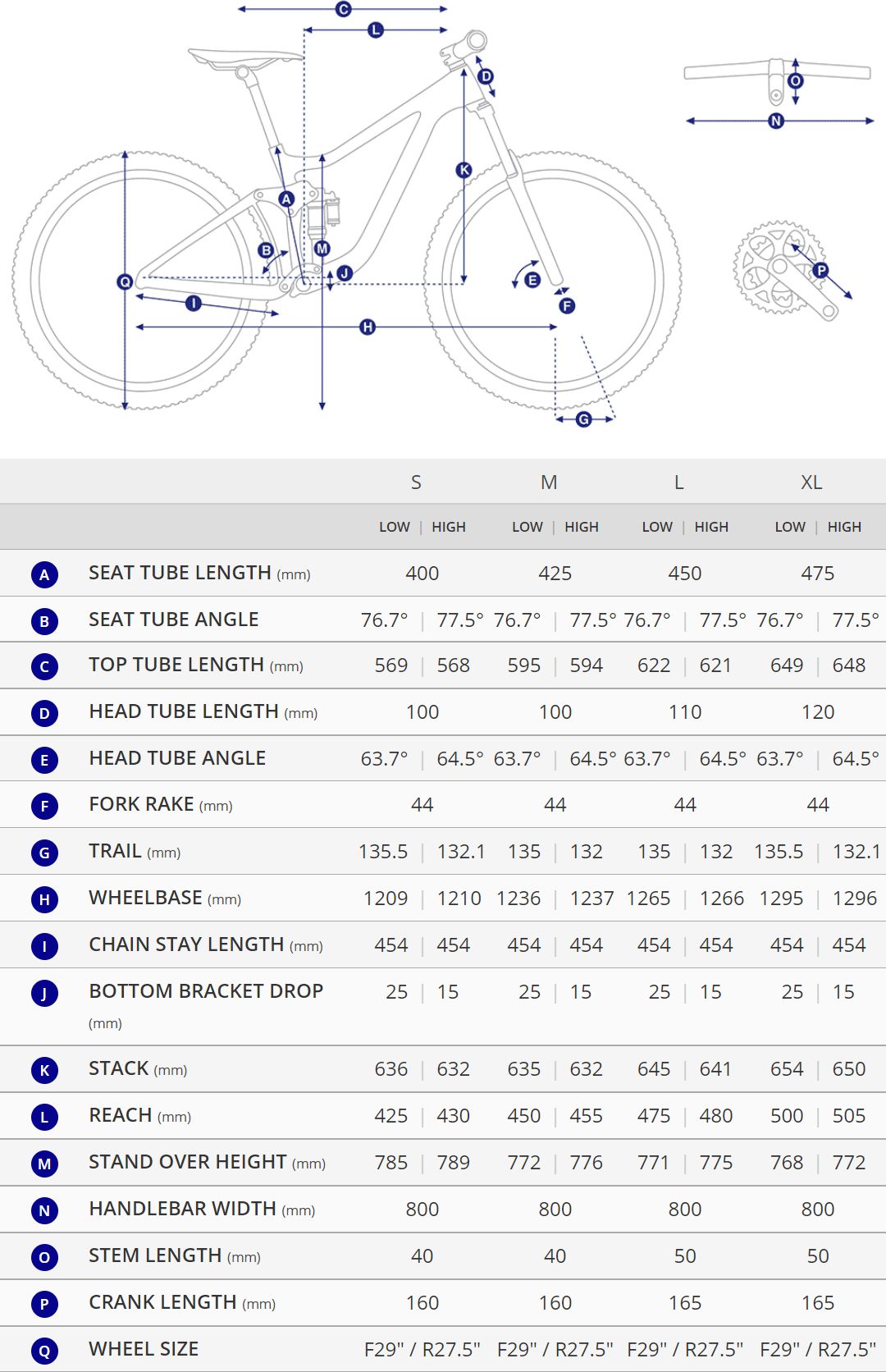

Geometry
