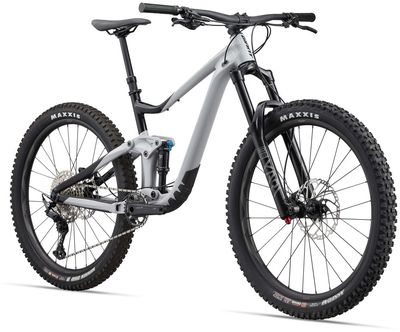

Float through rock gardens, hit the jumps, and find the faster line. With quick-handling 27.5 wheels and adjustable frame geometry, this lively trail bike is a party on wheels.

Built for those who favor the responsive, agile handling of 27.5 wheels, Trance X features a flip chip that lets you adjust the frame geometry for riding style and terrain. You can choose a steeper or slacker head tube angle and either a 20mm or 30mm bottom bracket drop. The ALUXX SL aluminum frame has an updated Maestro rear suspension featuring 145mm of smooth, active rear travel. A trunnion-mount shock and Advanced Forged Composite rocker arm help soak up bumps, giving you traction and control to float through rocks, roots and ruts. Confidence is further bolstered by a 160mm travel suspension fork up front.

Features

• Adjustable frame geometry: New flip chip feature lets you change the headtube and seattube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
• 27.5 agility and control: 27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.
• Progressive suspension: Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 145mm of rear travel (and 160mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Specifications

• Sizes: S, M, L, XL
• Colours: Good Grey / Black
• Frame: ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, flip chip, 12x148mm thru-axle
• Fork: RockShox Yari RC, Motion Control, DebonAir, 37mm offset, 160mm, 15x110 Stealth, custom tuned for Giant
• Shock: Fox Float DPS Performance, 185/55, custom tuned for Giant
• Handlebar: Giant Contact TR35, 800x35mm, 20mm rise
• Grips: Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Seatpost: Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm
• Saddle: Giant Romero
• Pedals: Not included
• Shifters: Shimano Deore, 1x12
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore
• Brakes: Tektro Orion HD-M475 4 piston hydraulic disc brakes [F]203mm, [R]180mm rotors
• Brake Levers: Tektro Orion HD-M745
• Cassette: Shimano Deore, 10x51
• Chain: KMC X-12
• Crankset: Praxis Cadet M24 HD, 32t S:165mm, M:170mm, L:170mm, XL:170mm
• Bottom Bracket: Praxis, press fit
• Rims: Giant AM 27.5 sleeve-joint rim, 30mm inner width
• Hubs: Giant Boost, sealed bearing
• Spokes: Sapim
• Tyres: [F] Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR [R] Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless
• Extras: Factory set up tubeless, 2.6" max tyre size, 34t max chainring size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
