Every ride just got more epic.

Features

• Accessible and Reliable: Access to new trails and experiences is easily within reach thanks to the up to 170 km* range of the ultra-reliable EnergyPak Smart 500Wh battery. The SyncDrive Sport motor, powered by Yamaha, delivers 70Nm of torque and has six speed control settings, with a maximum 350% support. *Actual range depends on several factors including weight, elevation, terrain and acceleration.

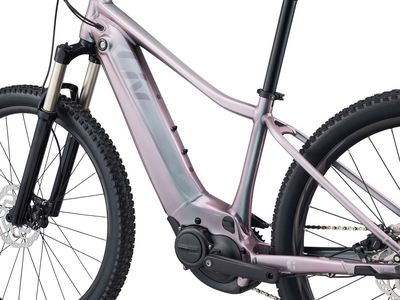

• Integrated Design: Along with the integrated speed sensor, the EnergyPak Smart battery is integrated into the downtube and easily accessible.

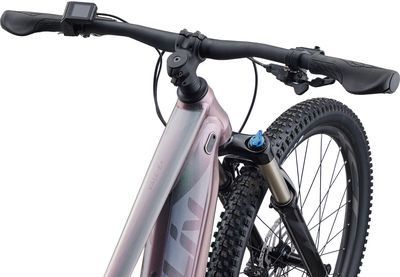

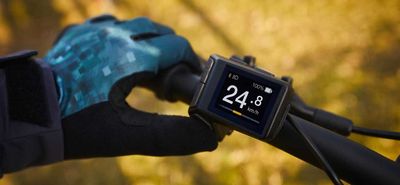

• Smooth Riding: Smart Assist Technology smooths out bumps, and the handlebar-mounted RideControl Dash is makes it easy to select pedal assist functions and view battery levels.

Specifications

• Sizes: XS, S, M (XS-S: 27.5 / M: 29)

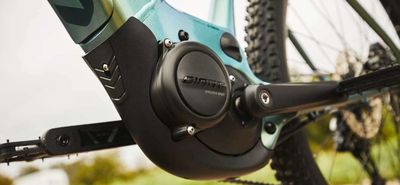

• Motor: SyncDrive Sport, 70Nm, Powered by Yamaha
• Controller: RideControl Dash, full color LCD screen
• Display: RideControl Dash, full color LCD screen
• Battery: EnergyPak Smart 500, 36V Integrated Lithium-IonEnergyPak Plus range extender compatible
• Charger: EnergyPak 4A smart charger compact
• Colours: Echeveria
• Frame: ALUXX Aluminum, Overdrive 1½ - 1?" Head Tube, 141mm Boost QR, ISS, EnergyPak Plus Range Extender Compatible, Integrated KS18 Kickstand Mount

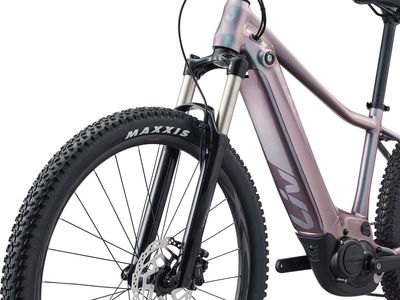

• Fork: SR Suntour XCR 32 Coil LO Boost 29/27.5 120mm travel, Tapered 1½ - 1?" steerer, lockout
• Shock: N/A
• Handlebar: Giant Connect TR Riser 31.8x690, 750mm (XS-S: 690 / M-L: 750)
• Grips: Liv Comfort Ergo Microtech Plus
• Stem: Giant Contact
• Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle: Liv Sport
• Pedals: Aluminum Platform
• Shifters: Shimano Deore
• Front Derailleur: -

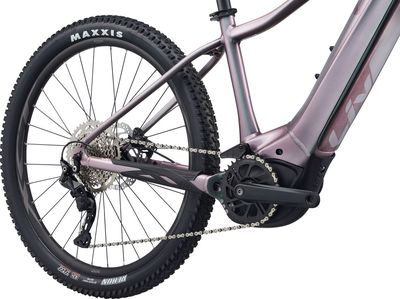

• Rear Derailleur: Shimano Deore, 10-speed, Shadow+
• Brakes: Tektro HD-M280, hydraulic disc, 180mm [F&R]
• Brake Levers: Tektro HD-M280
• Cassette: Shimano CS-M4100-10, 11-46T, 10-speed
• Chain: KMC e.10 Sport, e-bike optimised
• Crankset: FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
• Bottom Bracket: N/A
• Rims: Giant XCT 29/27.5 Tubeless Ready 25mm e-bike optimised
• Hubs: Shimano HB-MT401-B front, Shimano FH-MT200-B rear
• Spokes: Stainless steel
• Tyres: Maxxis Rekon 2.4", EXO, 60 TPI
• Extras: -
• Lighting: -
• Lock: -
• Carrier: -
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Additional Information

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

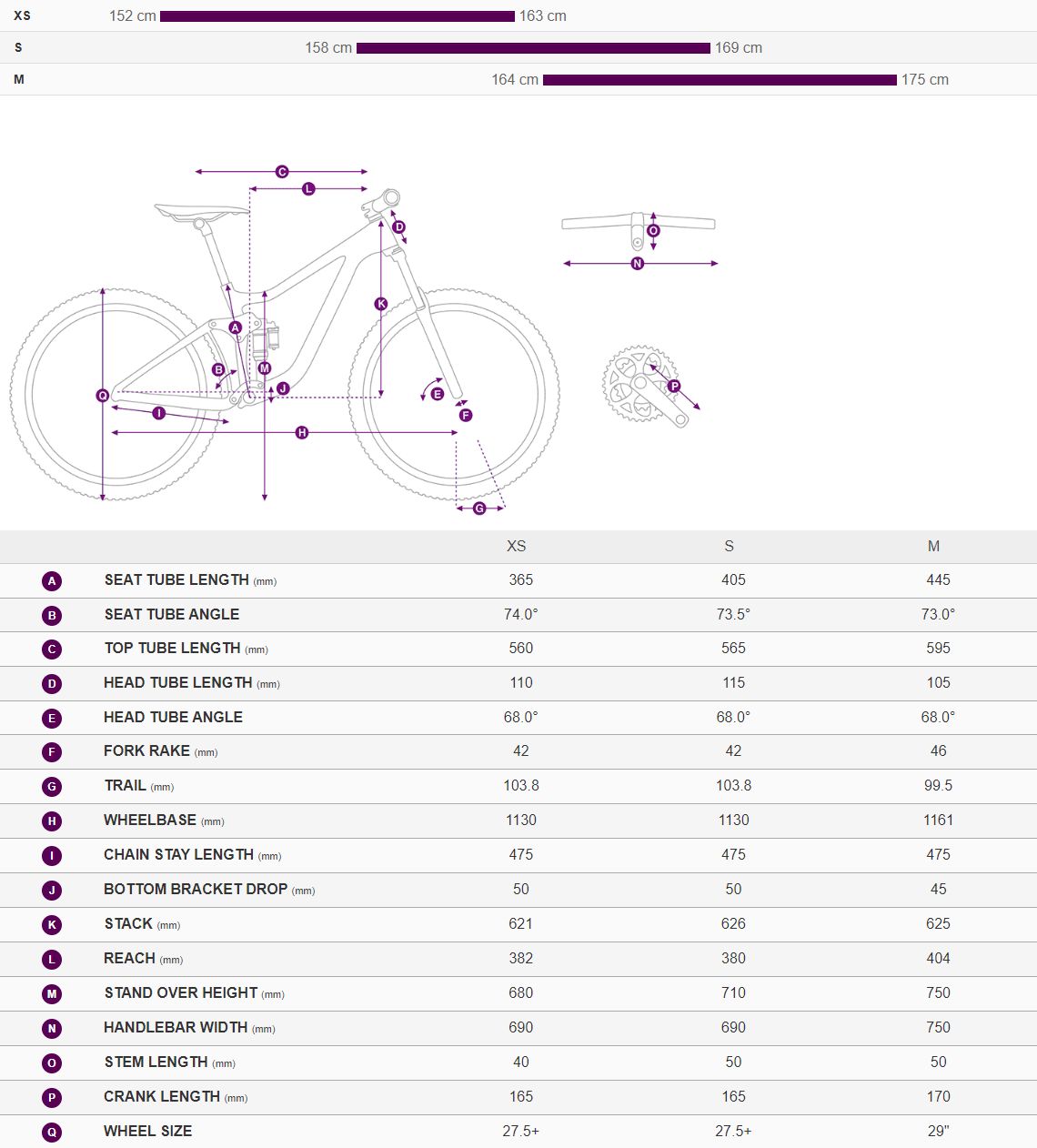

Geometry
