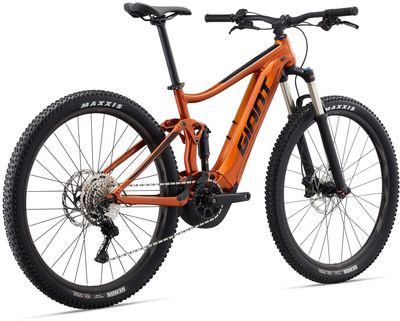

Steep climbs, technical descents, longer days on the trail. With a smooth suspension setup and a seamless boost of pedaling support, this e-bike gives you the power and technology to ride the trails you dream about.

Features

• Strong motor support: The SyncDrive Sport motor with 70Nm of torque and 360 percent tunable support helps you climb steep, rugged trails with ease.
• Total control: ALUXX SL aluminum frame with 120mm FlexPoint suspension and 29-inch wheels produces a smooth, confident ride on technical trails. The Giant E-bike App gives you navigation, health and fitness functions.
• Efficient: The EnergyPak Smart 625Wh & 500Wh offers long riding range. This integrated battery is easy to charge up to 80 percent in 2.5 hours with new 6A Fast Charger.

Specifications

• Motor: SyncDrive Sport, 70Nm, powered by Yamaha
• Controller: Giant RideControl One ANT+
• Display: ANT+ Wireless display compatible
• Battery: EnergyPak Smart 500Wh
• Charger: EnergyPak 4A smart charger compact
• Sizes: S, M, L, XL
• Colours: Amber Glow
• Frame: ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount
• Fork: SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110x15 thru-axle
• Shock: RockShox Monarch R, High Volume, 184x44mm, custom tuned
• Handlebar: Giant Connect TR Riser 31.8x780mm
• Grips: Giant Tactal single lock-on
• Stem: Giant Contact
• Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle: Giant Sport
• Pedals: Aluminum Platform
• Shifters: Shimano Deore, 10-speed
• Rear Derailleur: Shimano Deore, 10-speed, Shadow+
• Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
• Brake Levers: Tektro HD-M745 Orion
• Cassette: Shimano CS-M4100-10, 11-46T, 10-speed
• Chain: KMC e.10 Sport, e-bike optimised
• Crankset: Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160, M/L:165, XL:170)
• Bottom Bracket: -
• Rims: Giant AM 29", Tubeless ready, 30mm inner width
• Hubs: Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
• Spokes: Stainless Steel
• Tyres: Maxxis Rekon 29x2.4" foldable, 60tpi, EXO, Tubeless Ready
• Lighting: -
• Carrier: -
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Additional Information

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

Geometry
