Why buy bike from us?
Ride rough roads, paths or singletrack with power and control. This trail-friendly hardtail e-bike helps you conquer hills and challenging terrain in a whole new way.
Features

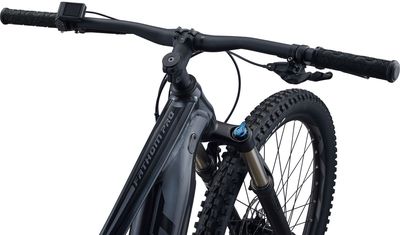

- Integrated design: 625Wh EnergyPak is integrated into the downtube. The RideControl ONE handlebar has EVO display compatibility and control buttons that connect with an E-bike-specific App for health, fitness and navigation functions.
- Total control: SyncDrive Pro motor technology gives you 360 percent tunable power so you can adjust your E-bike to ride just the way you like.
- Balanced, confident handling: Lightweight, durable aluminum frame is specially designed for 29-inch wheels and a 130mm suspension fork for smooth off-road control.
Specifications
- Motor: SyncDrive Pro, 80Nm, powered by Yamaha
- Controller: RideControl Dash, full color LCD screen
- Display: RideControl Dash, full color LCD screen
- Battery: EnergyPak Smart 625Wh EnergyPak Plus range extender compatible
- Charger: EnergyPak 4A smart charger compact
- Sizes: S, M, L, XL
- Colours: Gunmetal Black
- Frame: ALUXX Aluminum, Overdrive 1½ - 1?" head tube, 148x12mm Thru-Axle, integrated KS18 kickstand mount
- Fork: SR Suntour XCR 34 Boost Air LOR, 130mm travel, Tapered 1½ - 1?" steerer, lockout
- Shock: -
- Handlebar: Giant Connect TR Riser 31.8x780mm
- Grips: Giant Tactal Lock-On
- Stem: Giant Contact
- Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
- Saddle: Giant Sport
- Pedals: Aluminum Platform
- Shifters: Shimano Deore LinkGlide
- Front Derailleur: -
- Rear Derailleur: Shimano Deore, 10-speed, LinkGlide, Shadow+
- Brakes: Tektro HD-M275, hydraulic disc, 180mm [F/R]
- Brake Levers: Tektro HD-M275
- Cassette: Shimano Deore LinkGlide CS-M5130-10, 11-43T, 10-speed
- Chain: Shimano, CN-LG500, 9/10/11speed for LinkGlide
- Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
- Bottom Bracket: -
- Rims: Giant AM 29", Tubeless ready, 30mm inner width
- Hubs: Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
- Spokes: Stainless steel
- Tyres: Maxxis Minion DHF 29X2.5" 60TPI Foldable, TLR EXO [F] Maxxis Aggressor 29X2.5" 60TPI Foldable TLR EXO [R]
- Lighting: -
- Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Additional Information
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

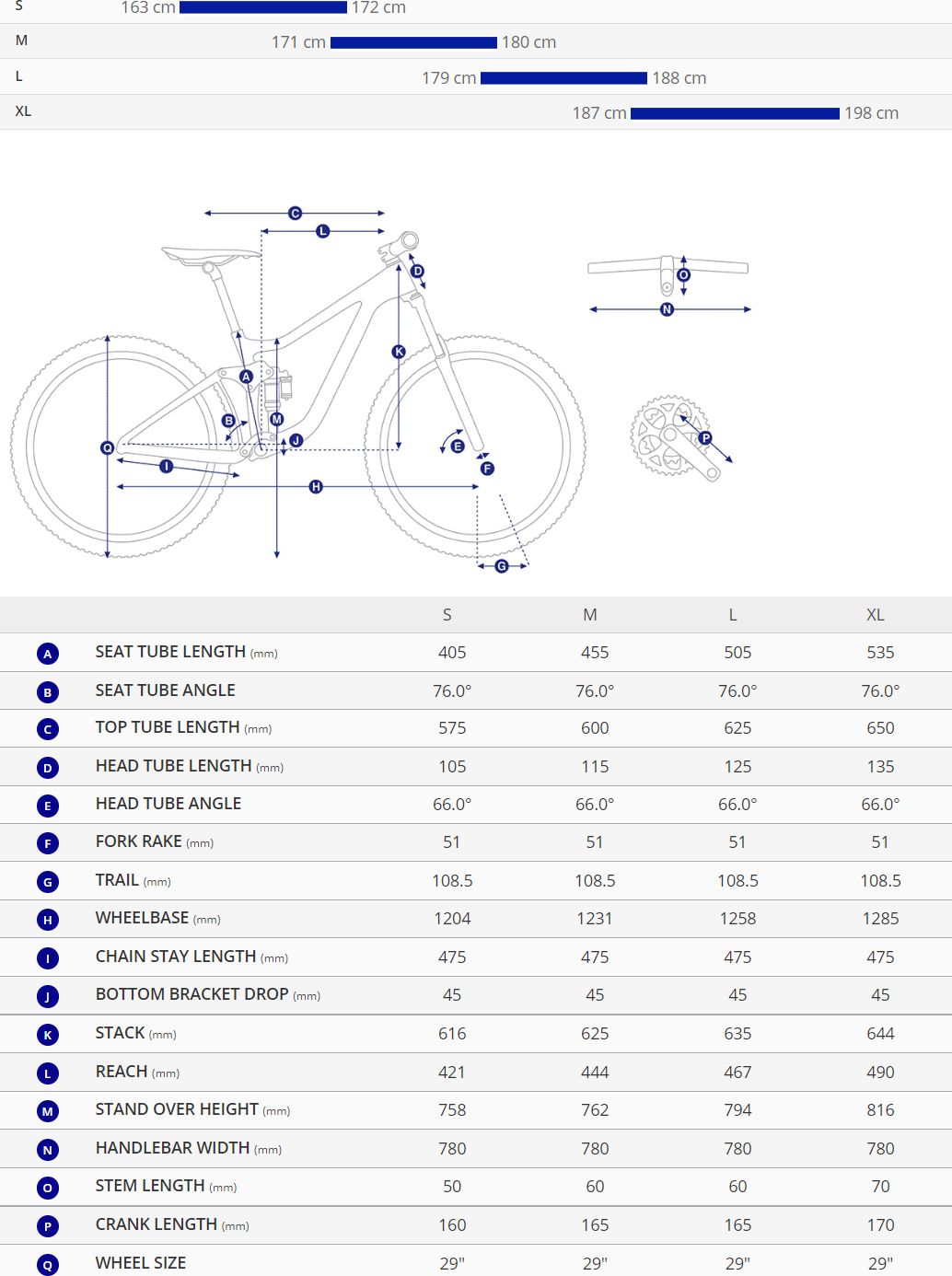

Geometry
Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
This could include but not limited to specification or colour
Manufacturer's Code: 2213342104, 2213342105, 2213342107, 2213342108
Barcodes: 4712878810211, 4712878810228, 4712878810235, 4712878810242
