Faster up the climbs, longer loops, more singletrack fun on any given day. Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding e-bike.

Features

• Smooth, powerful support: SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
• Trail-riding control: Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
• Adaptable to the terrain: New flip chip feature lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

How far can I expect to ride on a single battery charge?

• The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

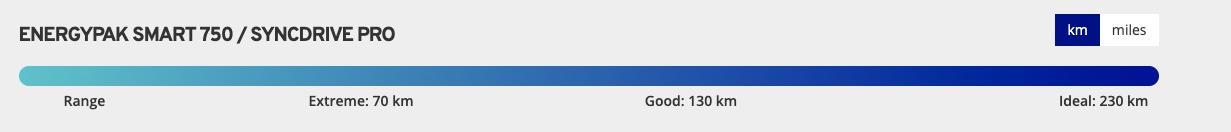

• The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Specifications

• Motor: SyncDrive Pro, 85Nm, powered by Yamaha
• Controller: RideControl Ergo 3, grip integrated
• Display: RideControl GO, frame integrated LED displayANT+ Wireless display compatible
• Battery: EnergyPak Smart 750Wh, EnergyPak Plus range extender compatible
• Charger: EnergyPak 6A smart charger
• Sizes: S, M, L, XL
• Colours: Gloss Amber Glow
• Frame: ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible
• Fork: Fox 36 Float Performance, 150mm travel, 44mm offset, Grip Damper, Boost 110x15QR, e-optimised
• Shock: Fox Float X Performance, EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount
• Handlebar: Giant Contact 35 Trail, 35x780mm
• Grips: Giant Tactal Pro-E, single lock-on
• Stem: Giant Contact SL 35
• Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
• Saddle: Giant Romero Trail
• Pedals: Flat pedal
• Shifters: Shimano Deore XT
• Front Derailleur: MRP HD2 co-moulded chain guide
• Rear Derailleur: Shimano Deore XT, 12-speed, Shadow+
• Brakes: Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm
• Brake Levers: Shimano Deore XT BL-M8100, I-spec EV
• Cassette: Shimano CS-M7100-12, 10-51T, 12-speed
• Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
• Crankset: Praxis WaveTM 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
• Bottom Bracket: -
• Rims: Giant AM 29", Tubeless ready, 30mm inner width
• Hubs: Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
• Spokes: Sapim E-Lite [R] Race [F]
• Tyres: Maxxis Assegai 29x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F] Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 120tpi 3C [R]
• Extras: Tubeless kit (liquid, valves, levers, manual, tool)
• Lock: Torx 25 Battery Lock with built-in Torque limiter
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
