Moterra Neo LT: When the only boundary left is gravity.

A long travel e-mountain bike with infinite capability. Go ride the unrideable. Again and again. Built to shine on rugged descents and technical climbs, it's happy to play wherever it’s pointed.

Moterra Neo LT 2 is a hard-charging enduro eMTB with 170/165mm travel, Bosch 750Wh system, Shimano XT/SLX & Magura MT5 brakes

Breaking Boundaries
With the new Bosch Performance Line CX & 750Wh battery, getting there was the easy part - now it's time for the fun! With 170mm/165mm of travel, piggy back shock and burly build, it's ready to give as much as you are.

Where it thrives
Whatever and wherever you didn't think possible

What it's built for
Handling, Traction, Efficiency, Durability

Highlights:

• Proportional Response Tuned carbon frame, 165mm travel / RockShox Zeb Select fork, 170mm travel
• Bosch SmartSystem - 750wh battery & Performance CX motor
• Shimano XT/SLX 12-speed drivetrain / Magura MT5 4-piston brakes

Specifications

• Frame: Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
• Fork: RockShox Zeb Select, Charger RC, 170mm, DebonAir, 15x110mm, 44mm offset
• Headset: Acros integrated sealed bearing, tapered

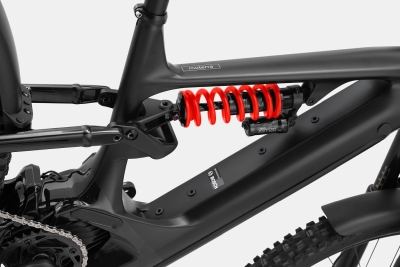

• Rear Shock: RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound
• Drive Unit: Bosch Performance Line CX 250W
• Battery: Bosch PowerTube 750Wh
• Charger: Bosch 4A
• Display: Bosch Kiox 300 w/ LED remote
• Rear Derailleur: Shimano XT
• Shifters: Shimano SLX, 12-speed
• Chain: Shimano SLX, 12-speed
• Crank: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Rear Cogs: Shimano SLX, 10-51, 12-speed
• Brakes: Magura MT5 4-piston hydraulic disc, Magura MDR-P 220/203mm, 6-bolt rotors
• Brake Levers: Magura MT5 Trail HC hydraulic disc
• Rims: WTB ST i30 TCS, 32h, tubeless ready
• Spokes: Stainless Steel, 14g
• Tires: (F) Maxxis Assegai, 29 x 2.6", 3C, EXO+, tubeless ready, (R) Maxxis DHR II, 27.5 x 2.6", 3C, EXO+, tubeless ready
• Tire Size: 2.6
• Hubs: (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
• Front Tire: Maxxis Assegai, 29 x 2.6", 3C, EXO+, tubeless ready
• Rear Tire: Maxxis DHR II, 27.5 x 2.6", 3C, EXO+, tubeless ready
• Handlebar: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
• Stem: Cannondale 2, 6061 Alloy, 35mm, 0°
• Grips: Fabric FunGuy
• Saddle: Fabric Scoop Shallow Sport, steel rails
• Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
• Wheel Sensor: Cannondale Wheel Sensor
• Extras: Pre-installed light cable

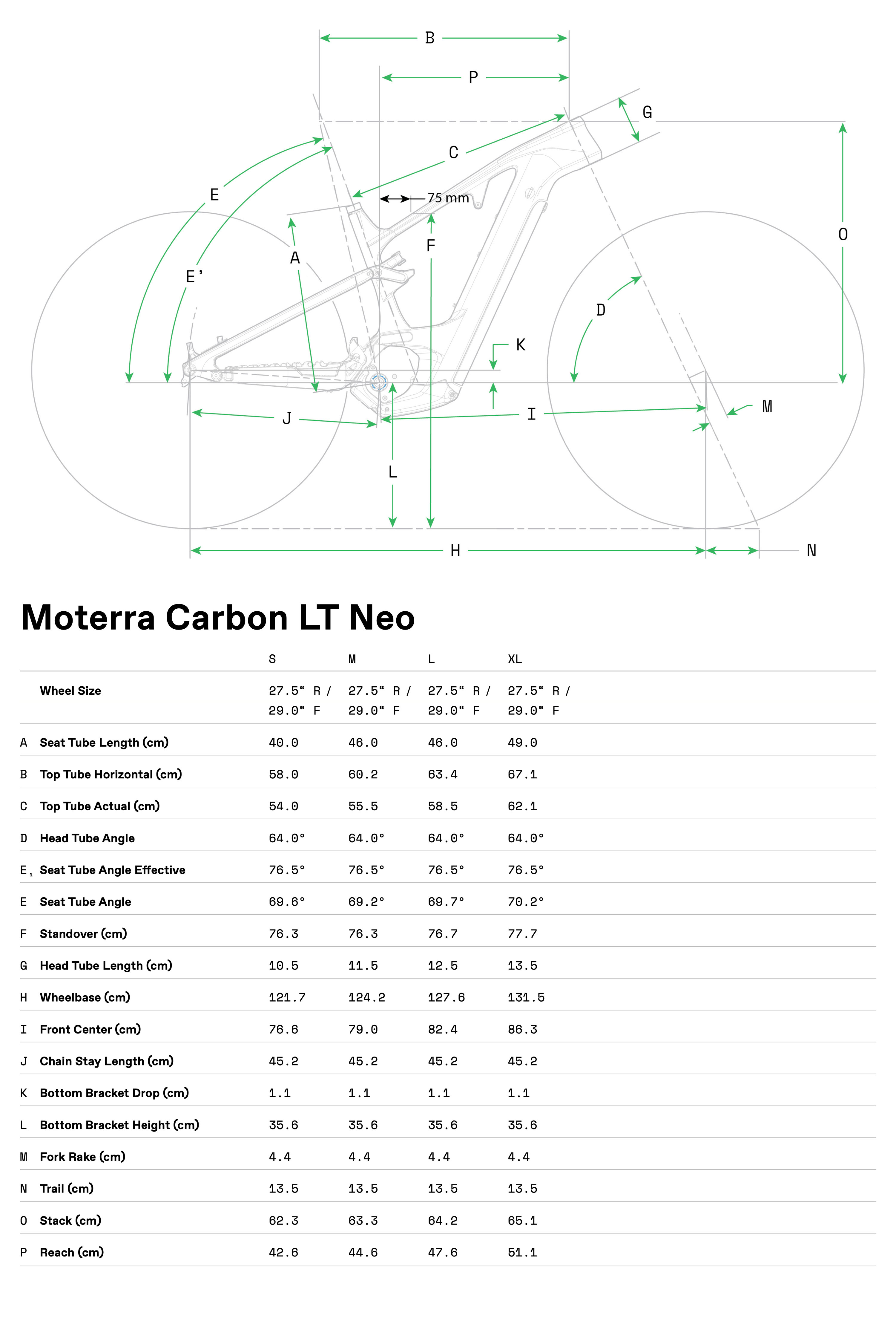

Geometry
