Why buy bike from us?

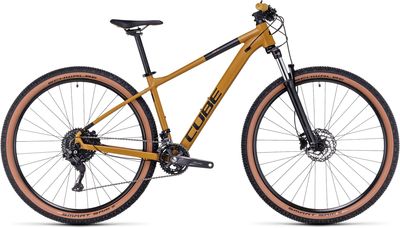

When the off-road bug bites you'll want a bike that won't let you down. That's why, for the Aim EX, we selected Shimano's easy-to-use and superbly reliable 2x10 gears.
Paired with the bump-swallowing ability of a 100mm suspension fork – with remote lockout – and tenaciously grippy 2.25in tyres, it's your guarantee of always having the right gear for any eventuality at your fingertips. Strong hydraulic disc brakes, our versatile SizeSplit system and a dropper post-ready frame are the icing on the cake. Where will it take you next?
Features

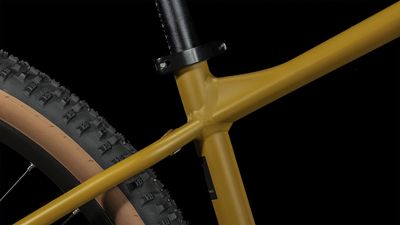

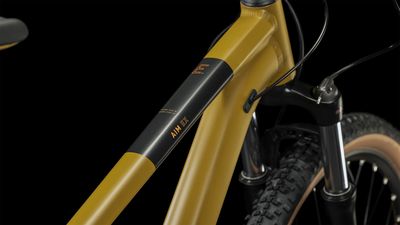

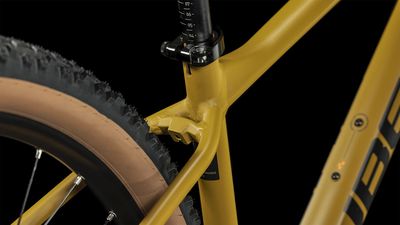

- Beauty is more than skin deep: the Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
- It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.
- There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
- Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
- Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Specifications
- Net weight (kg): 14,4

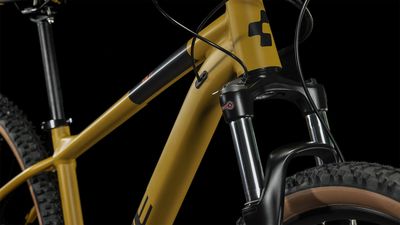

- Fork: SR Suntour XCM Disc, 100mm, Remote Lockout
- Headset: CUBE FPH868, Semi-Integrated
- Stem: CUBE Performance Stem Race, 31.8mm
- Handlebar: CUBE Rise Trail Bar, 680mm
- Grips: ACID React
- Rear derailleur: Shimano Deore RD-M5120-SGS, 10-Speed
- Front derailleur: Shimano Deore FD-M6025-H, Downswing, 31.8mm Clamp
- Shifters: Shimano Deore SL-M5100, Rapidfire-Plus
- Brake system: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)

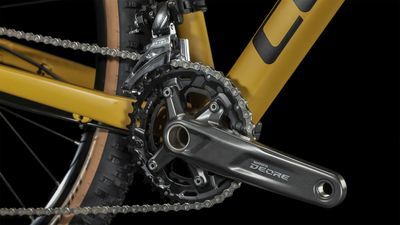

- Crankset: Shimano Deore FC-M4100, 36X26T
- Crankset chainring sizes: 36X26T
- Cassette: Sunrace CSM52, 11-42T
- Number of gears: 20
- Chain: KMC X10
- Rims: CUBE ZX20, 32H, Disc
- Front hub: Shimano HB-TX505, QR, Centerlock
- Rear hub: Shimano FH-TX505, QR, Centerlock
- Tires: Schwalbe Smart Sam, Active, 2.25
- Pedals: ACID PP MTB
- Saddle: Natural Fit Venec Lite
- Seat post: CUBE Performance Post, 27.2mm
- Seat post = dropper Yes/No: No
- Seat post clamp: CUBE Varioclose, 31.8mm
Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
This could include but not limited to specification or colour
Manufacturer's Code: 60146014, 60146016, 60145014, 60145016, 60146018, 60146020, 60146022, 60146024, 60145018, 60145020, 60145022, 60145024
Barcodes: 4054571385840, 4054571385857, 4054571385789, 4054571385796, 4054571385864, 4054571385871, 4054571385888, 4054571385895, 4054571385802, 4054571385819, 4054571385826, 4054571385833
