A hardtail is a versatile beast, so it helps to have the right kit to get the most out of that versatility. With the Analog we started by choosing Sram's Eagle 1x12 transmission.
With its huge range, ease of use and reliable performance, it's the go-to for many keen riders. Paired with powerful hydraulic disc brakes and a smooth RockShox suspension fork, it puts you firmly in control. Grippy 2.25in tyres, perfect sizing from our SizeSplit system and the option of a future dropper post upgrade complete the package.
Features

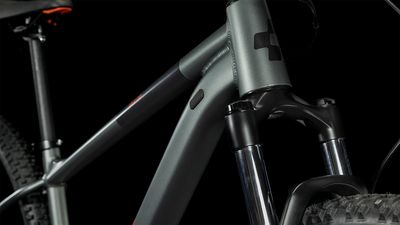

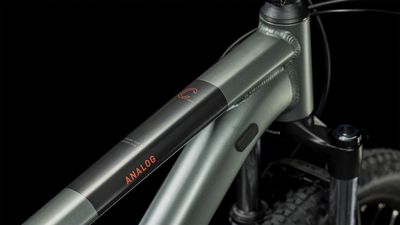

- The Analog's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
- It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.
- There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
- Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
- Our SizeSplit system has an expanded range too, so however tall you are there'll be an Analog that fits perfectly.
- And, as your skills increase, there's scope to fit a dropper post upgrade.
Specifications
- Wheel Size: Frame size XS and S: 27.5 Wheel. Frame size M, L, XL, XXL: 29 Wheel
- Net weight (kg): 13,9
- Fork: RockShox Judy Silver TK Coil, 100mm, Lockout
- Headset: CUBE FPH868, Semi-Integrated
- Stem: CUBE Performance Stem SLX, 31.8mm
- Handlebar: CUBE Rise Trail Bar, 680mm
- Grips: ACID React

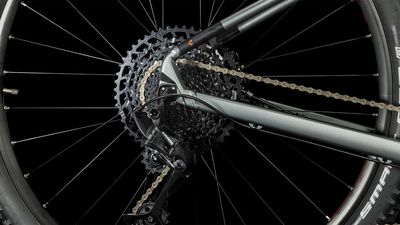

- Rear derailleur: Sram SX Eagle™, 12-Speed
- Shifters: Sram SX Eagle™ Trigger
- Brake system: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160)

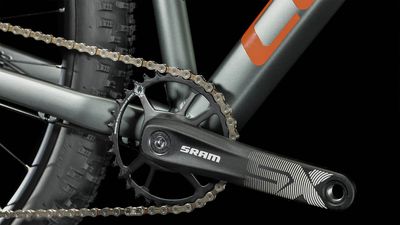

- Crankset: Sram SX Eagle™ Powerspline, 32T, 175mm
- Crankset chainring sizes: 32T
- Cassette: Sram PG-1210 Eagle™, 11-50T
- Number of gears: 12
- Chain: Sram SX Eagle™
- Rims: CUBE ZX20, 32H, Disc
- Front hub: Shimano HB-TX505, QR, Centerlock
- Rear hub: Shimano FH-TX505, QR, Centerlock
- Tires: Schwalbe Smart Sam, Active, 2.25
- Pedals: ACID PP MTB
- Saddle: Natural Fit Venec Lite
- Seat post: CUBE Performance Post, 27.2mm
- Seat post = dropper Yes/No: No

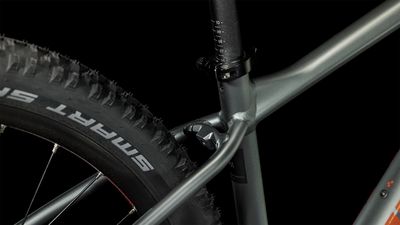

- Seat post clamp: CUBE Varioclose, 31.8mm
Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
This could include but not limited to specification or colour
Manufacturer's Code: 60210014, 60210016, 60211016, 60210018, 60210020, 60210022, 60210024, 60211018, 60211020, 60211022, 60211024
Barcodes: 4054571386144, 4054571386151, 4054571386212, 4054571386168, 4054571386175, 4054571386182, 4054571386199, 4054571386229, 4054571386236, 4054571386243, 4054571386250
