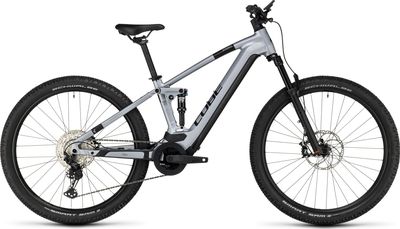

The Stereo Hybrid's sleek frame is full of clever touches to make our popular, Bosch-powered trail explorer better than ever.

Features

• The Modular Battery System tucks the Bosch battery – up to 750Wh – out of sight, and out of the way of dust and water. Integrated cable routing isn't just neat, it also means there are no cable holes in the head tube.
• The refined four-bar suspension system keeps you isolated from trail shocks for ride-all-day comfort, and the whole lot is wrapped in our Comfort Geometry – with a stiffness-enhancing Boost 148 rear end and 1.5in head tube – for easy handling, plus SizeSplit makes it simple for every rider to find their perfect match.
• We even made it simple to add accessories like mudguards, a luggage carrier and a kickstand. It's ready for pretty much anything. Are you?

Specifications

• FRAME: Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
• SIZE: Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
• SUSPENSION FORK: Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
• SHOCK: Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 30x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
• BATTERY: Bosch PowerTube 625
• REMOTE: Bosch LED Remote
• DISPLAY: Bosch Intuvia 100
• CHARGER: Bosch 4A
• BRAKE SYSTEM: Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano Deore SL-M6100, Rapidfire-Plus
• CRANKSET: ACID E-Crank, 38T, 170mm
• CASSETTE: Shimano Deore CS-M6100, 10-51T
• CHAIN: Shimano CN-M6100
• HANDLEBAR: Newmen Evolution SL 318.25, 760mm
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• GRIPS: ACID Hybrid Perform
• HEADSET: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• FRONT HUB: Shimano HB-MT400-B, 15mm, Boost, Centerlock
• REAR HUB: Shimano FH-MT410-B, 12mm, Boost, Centerlock
• RIMS: CUBE EX30, 32H, Disc, Tubeless Ready
• TYRES: Schwalbe Smart Sam, Active, 2.6
• SEAT POST: CUBE Performance Post, 30.9mm
• SADDLE: Natural Fit Sequence
• PEDALS: ACID PP MTB
• WEIGHT: 24,9 kg
