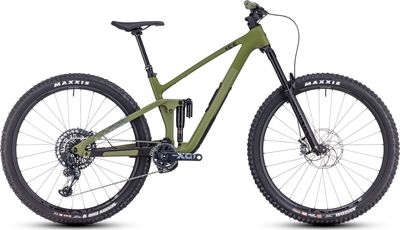

Elegant form or rugged function? With the new Stereo ONE55 C:62 you don't have to choose. The clean lines of the Advanced Twin Mold C:62® frame are the first thing you'll notice, but as always the devil is in the detail.

Features

• Built-in angle adjustment inserts give a choice of head tube angles, so you can tweak the performance to your liking.
• The threaded bottom bracket shell is tough and practical, complete with ISCG 05 chain guide mount.
• There's built-in down tube storage with room for a ACID multitool and lots else besides.
• With 155mm of travel at the rear and a 160mm fork up front, there's simply no better way to take on tough mountain trails and come out on top.

Specifications

• FRAME: C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 155mm travel
• SIZE: 29: S, M, L, XL
• SUSPENSION FORK: RockShox Lyrik Ultimate RC2, Tapered, 15x110mm, 160mm
• SHOCK: RockShox Super Deluxe Ultimate DebonAir, 205x60mm, Low Speed Compression & Rebound Adjust, Lockout
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 22x8mm
• BRAKE SYSTEM: Magura MT7, Hydr. Disc Brake (203/180)
• REAR DERAILLEUR: Sram X01 Eagle™ AXS, 12-Speed
• SHIFTERS: Sram Eagle AXS™ Controller
• BOTTOM BRACKET: Sram DUB MTB, 73mm BSA
• CRANKSET: Sram X01 Eagle™ Carbon 32T, Boost
• CHAIN GUIDE: MRP SXg Chain Guide
• CASSETTE: Sram XG-1295, 10-52T
• CHAIN: Sram PC-XO1 Eagle™
• INTEGRATED BAR/ STEM: CUBE Stereo Carbon Cockpit System
• GRIPS: SDG Thrice
• HEADSET: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• WHEELSET: Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TYRE: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
• REAR TYRE: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
• SEAT POST: SDG Tellis, Handlebar Lever, Internal Cable Routing, 30.9mm
• SADDLE: SDG Bel Air V3 Lux Alloy
• EXTRAS: ACID Downtube Storage Bag & HUSK24 Multi Tool
• WEIGHT: 13,6 kg
