GUNNING FOR THE RACE WIN OR DIGGING DEEP FOR A PR, THIS COMPOSITE ROAD RACING BIKE GIVES YOU THE SPEED, EFFICIENCY AND CONTROL TO PUSH IT TO THE LIMIT, AND THEN A LITTLE BIT MORE.

Features

• Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
• This is where the TCR’s most quantifiable gains can be found compared to previous generation models.
• Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
• Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions.
• Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.

Specifications

• Sizes: XS, S, M, M/L, L, XL
• Colors: Cold Night, Unicorn White
• Frame: Advanced-Grade Composite, disc
• Fork: Advanced-Grade Composite, full-composite OverDrive steerer, disc
• Shock: N/A

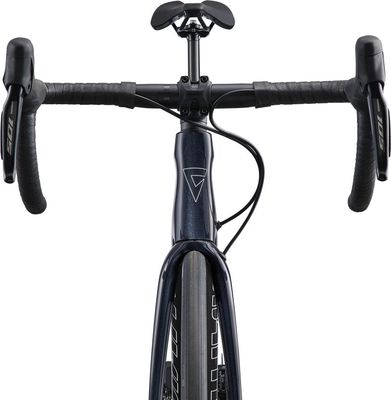

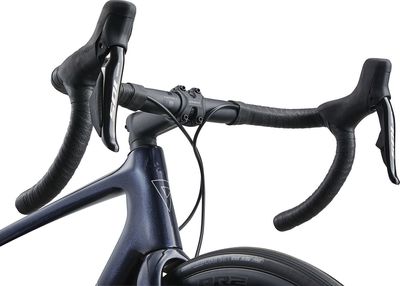

• Handlebar: Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost: Giant Variant, composite, -5/+15mm offset
• Saddle: Giant Approach
• Pedals: N/A
• Shifters: Shimano 105 Di2
• Front Derailleur: Shimano 105 Di2

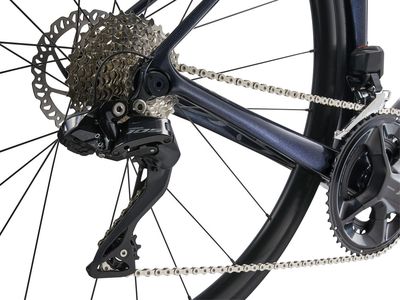

• Rear Derailleur: Shimano 105 Di2
• Brakes: Shimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
• Brake Levers: Shimano 105 Di2
• Cassette: Shimano 105, 12-speed, 11x34
• Chain: KMC X12

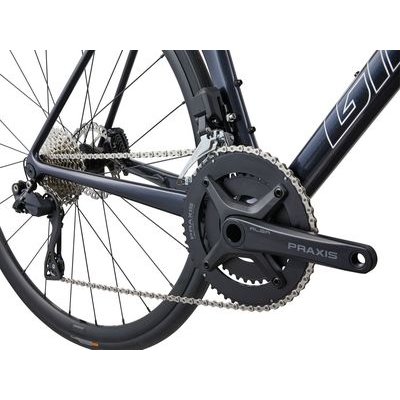

• Crankset: Praxis Alba X, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: Praxis M30, press fit
• Rims: Giant P-R2 Disc wheelset, alloy
• Hubs: Giant alloy, 12mm thru-axle
• Spokes: Sapim
• Tires: Giant Course 1, tubeless, 700x25c (28mm), folding
• Extras: tubeless prepared, 32mm max tire size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
