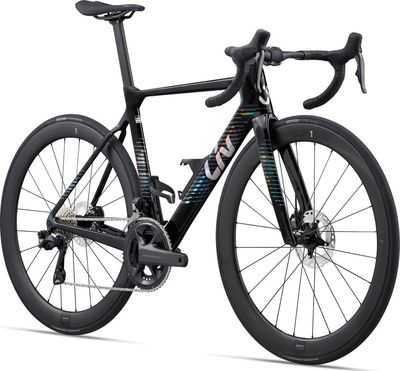

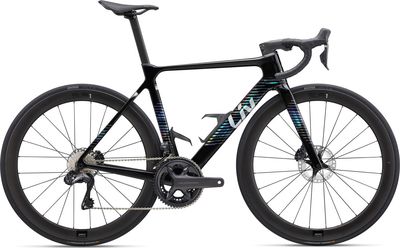

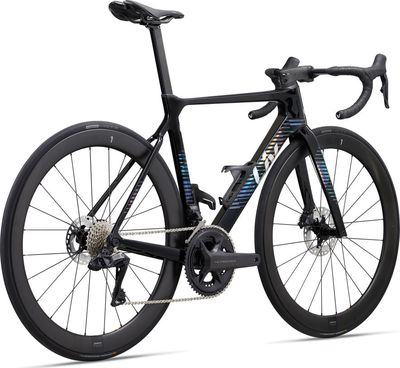

FROM THE STAGE RACE BREAKAWAY TO THE FINAL CRITERIUM LAP, THE ALL-NEW ENVILIV IS MADE TO BE OUT FRONT. WE’VE REDESIGNED OUR SIGNATURE SPRINTER FOR OPTIMISED AERODYNAMIC PERFORMANCE, GREATER STIFFNESS-TO-WEIGHT ADVANTAGE, AND MAXIMUM TROPHIES.

Features

• CFD analysis and wind-tunnel testing have led to the latest version of our AeroSystem Shaping Technology, optimising aerodynamic performance at every yaw angle.
• The truncated ellipse airfoil tube shapes and all-new Contact SL Aero cockpit produce solid overall aero performance.
• Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight.
• But the EnviLiv has found the sweet spot, with a new Advanced-Grade Composite frame and fork—resulting in 292 grams of weight savings over the previous generation.
• When every second matters, so does every detail.

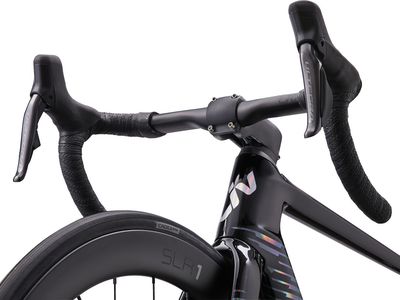

• So we developed a new way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance.

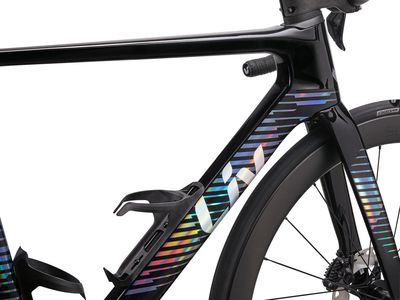

• Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Specifications

• Sizes: XS, S, M
• Colours: Gloss Crabon Smoke
• Frame: Advanced-Grade Composite, disc

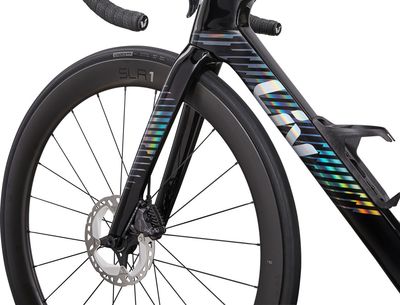

• Fork: Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc
• Shock: N/A

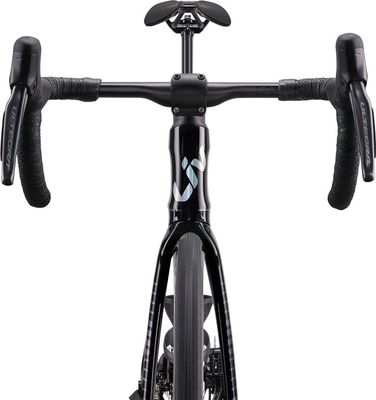

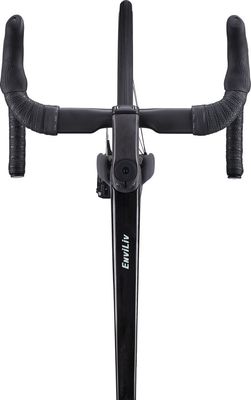

• Handlebar: Liv Contact SLR Aero
• Grips: Liv All Condition
• Stem: Giant Contact SLR Aero, OverDrive Aero
• Seatpost: Giant Vector, composite, -5/+15mm offset
• Saddle: Liv Alacra SLR CS
• Pedals: N/A
• Shifters: Shimano Ultegra Di2 ST-R8170 2x12
• Front Derailleur: Shimano Ultegra Di2 FD-R8150
• Rear Derailleur: Shimano Ultegra Di2 FD-R8150
• Brakes: Shimano Ultegra hydraulic, Shimano RT-MT800 rotors [F]160mm, [R]140mm
• Brake Levers: Shimano Ultegra hydraulic
• Cassette: Shimano Ultegra, 12-speed, 11x30
• Chain: Shimano Ultegra, CN-M8100

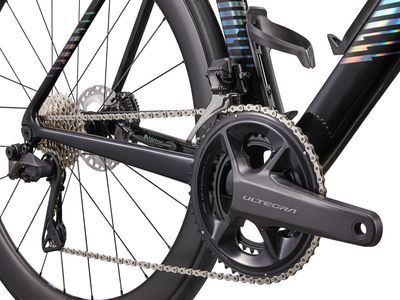

• Crankset: Shimano Ultegra, 36/52 with PowerPro power meter
• Bottom Bracket: Shimano, press fit
• Rims: Giant SLR 1 50 Carbon Disc WheelSystem (22.4mm inner width)
• Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
• Spokes: SAPIM CX-Ray
• Tyres: CADEX Race, tubeless, 700x25c (26.5mm effective width), folding
• Extras: Out front computer mount for Garmin, Wahoo and Giant head units , water bottle cages, factory tubeless set up, 30mm max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
