THIS ALL-NEW COMPOSITE CHASSIS IS BUILT STRONG, LIGHT AND FAST FOR GIANT ENDURO PROS. A NEW SUSPENSION SETUP BEEN DEVELOPED, TESTED AND RACED AT THE HIGHEST LEVELS. AND MORE ADJUSTABILITY LETS YOU TACKLE TECHNICAL TRAILS JUST THE WAY YOU LIKE.

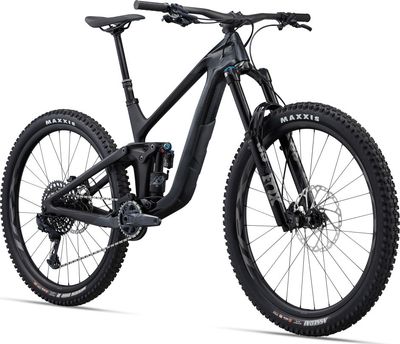

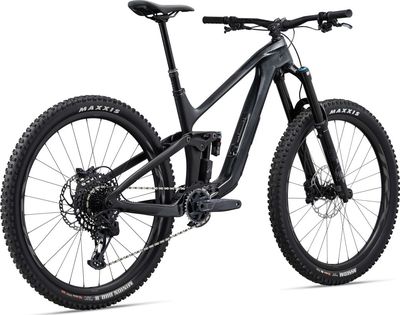

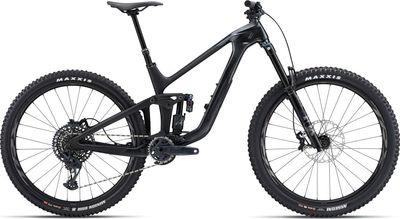

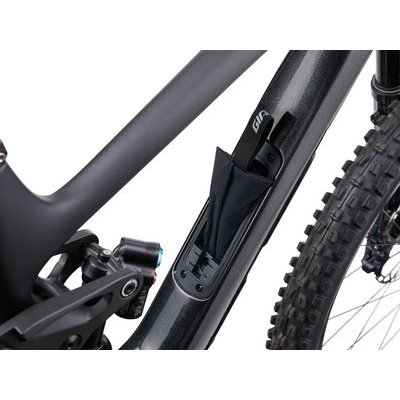

This full-composite frameset is engineered with enduro racing geometry and adjustability that lets you change the bike’s handling and riding characteristics with three flip chip settings. Also new is the ability to swap out the stock 29-inch rear wheel for a smaller 27.5-inch one. This “mullet” setup makes for an equally short chainstay length and a shorter reach, giving the bike a snappier feel on aggressive terrain. The updated Maestro suspension system has 160mm of rear wheel travel, paired with a 170mm fork up front. And new integrated down tube storage provides convenient carrying capacity for trail riding essentials.

Features

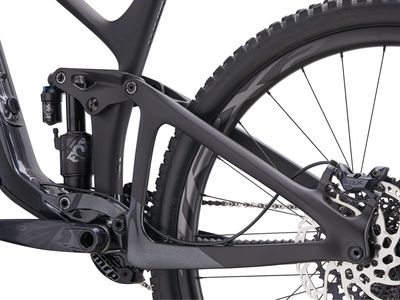

• A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races.

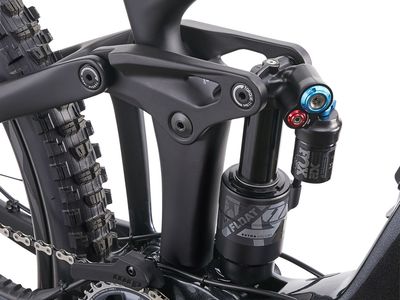

• The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation).
• And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
• New flip chip technology lets you switch between three settings depending on the terrain.
• You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.
• Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel.
• The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.

Specifications

• Sizes: S, M, L, XL
• Colours: Gloss Black Diamond/Matte Carbon

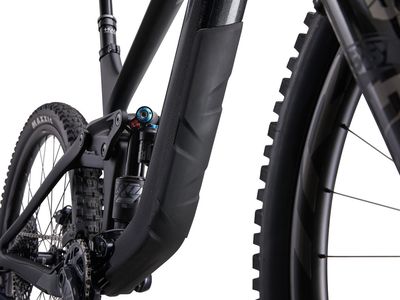

• Frame: Advanced-Grade Composite front and rear triangles, Advanced Forged Composite rocker link, 160mm Maestro suspension, OverDrive (1 1/8" - 1 1/2"), BB89.5, UDH, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage, 2.5" max tire size, 36t max chainring size, 3M tailgate protector, downtube and chainstay protection

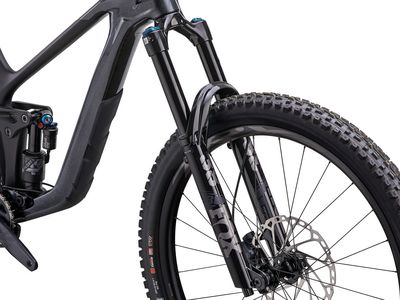

• Fork: Fox 38 Performance Elite, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset
• Shock: Fox Float X2 Performance Elite, 205/62.5mm

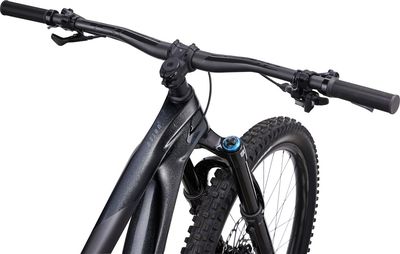

• Handlebar: Giant Contact SLR TR35, composite, 800x35mm, 20mm rise
• Grips: Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
• Seatpost: TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
• Saddle: Giant Romero SL
• Pedals: N/A
• Shifters: SRAM GX Eagle, 1x12
• Front Derailleur: N/A

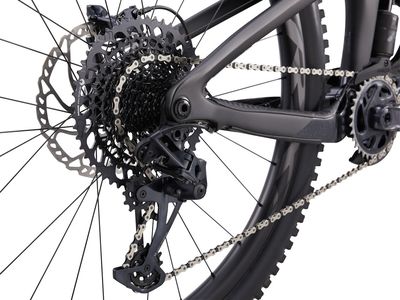

• Rear Derailleur: SRAM GX Eagle
• Brakes: Shimano SLX M7120, hydraulic Shimano RT-66 rotors [F]220mm, [R]203mm
• Brake Levers: Shimano SLX BL-M7100
• Cassette: SRAM GX XG-1275 Eagle, 10x-52T
• Chain: SRAM GX Eagle
• Crankset: SRAM GX, DUB, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant TRX 2 29 Carbon WheelSystem, ETRTO: 30-622, outer rim width 37mm, rim high 26mm, hookless clincher, tubeless ready (TL tape and valve included), 30mm inner width
• Hubs: [F] Giant MTB alloy, cartridge bearing, 6-bolt [R] Giant MTB alloy, cartridge bearing, 3-pawl driver (30T) SRAM XDR, 6-bolt
• Spokes: Sapim Laser
• Tyres: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
• Extras: Factory tubeless set up. Tubeless kit (2x60ml Giant sealant, valve tool, instruction) 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector, downtube and chainstay protection, internal DT storage bag
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
