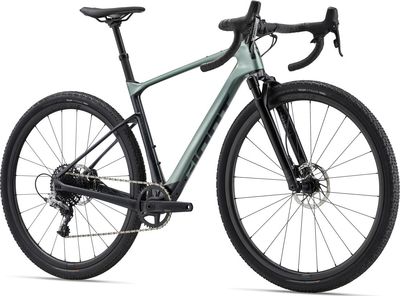

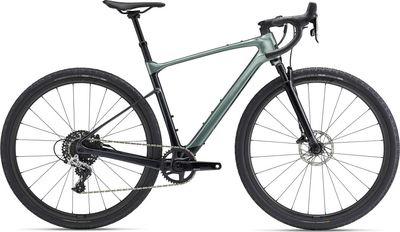

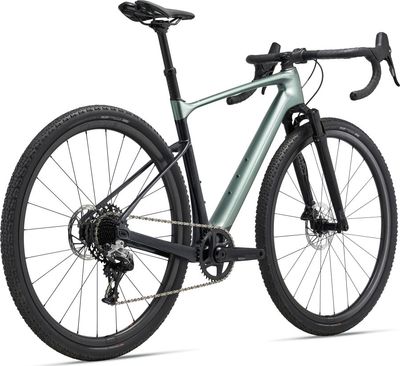

WASHBOARD DESCENTS, SKETCHY DIRT, GRAVEL AND ROCKS OF ALL SHAPES AND SIZES. YOU NEVER KNOW WHAT YOU’LL GET ON A GRAVEL RIDE. THIS NEW COMPOSITE GRAVEL MACHINE FEATURES A SUSPENSION FORK AND ENGINEERED COMPLIANCE TO HELP YOU FLOAT THROUGH ALL OF IT WITH SPEED AND CONTROL.

The Advanced composite frameset is designed with suspension-optimized geometry and paired with a 40mm travel fork, delivering a smooth, controlled ride quality on rugged gravel and dirt. A flip chip on the rear dropout lets you adjust the wheelbase and increase tire clearance up to 53mm. You can use the included dropper post, switch to a proprietary Giant D-Fuse seatpost for added compliance, or use a standard 30.9mm round seatpost. A Contact SL XR D-Fuse handlebar further minimizes fatigue by absorbing shocks and vibrations.

Features

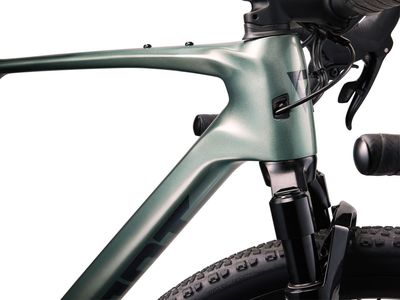

• Composite frameset is designed specifically for front suspension.

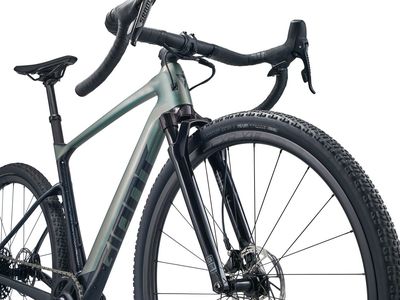

• With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.

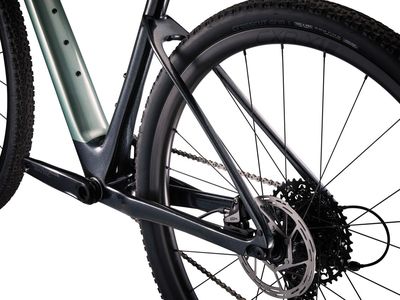

• Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations.

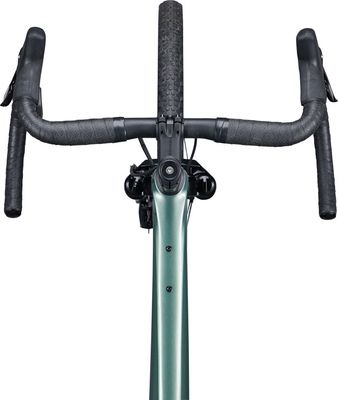

• A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

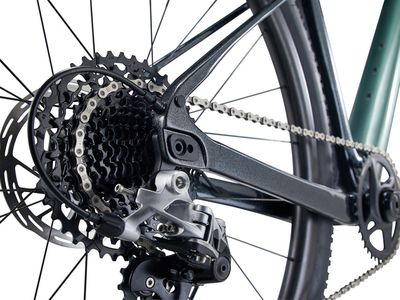

• A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed.
• The long setting also allows for larger diameter tires up to 53mm.

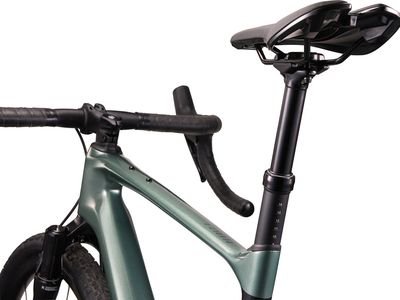

• You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Gloss Misty Forest/Matte Black Diamond
• Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork: RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
• Shock: N/A
• Handlebar: Giant Contact SL XR D-Fuse, 16-degree flare S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
• Seatpost: Postmodern, dropper, 30.9mm with 25mm of suspension 415mm length / 100mm drop
• Saddle: Giant Approach SL
• Pedals: N/A
• Shifters: SRAM Rival 1, 1x11
• Front Derailleur: N/A
• Rear Derailleur: SRAM Rival 1
• Brakes: SRAM Rival 1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers: SRAM Rival 1, left lever dropper switch
• Cassette: SRAM Rival, 11-speed, 11x42
• Chain: SRAM PC-1130
• Crankset: SRAM Rival D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
• Hubs: [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
• Spokes: Sapim CX-Ray
• Tyres: Giant CrossCut Grip 1, 700x45c, tubeless
• Extras: Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
