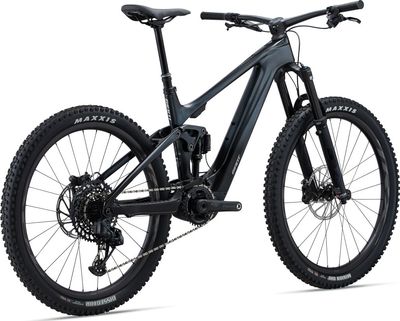

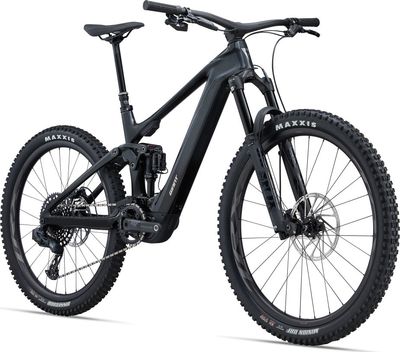

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. A NEW ULTRA-SLIM BATTERY MINIMISES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.

All-new composite frame features adjustable geometry with a new flip chip feature. The SyncDrive Pro motor delivers 85Nm of torque for a seamless boost of power even at low speeds and on technical trails. The new composite Giant Contact SLR Trail integrated handlebar has a sleek design for precision off-road control. It comes with two control centres, the RideControl Go multifunctional on/off button on the top tube, and the new RideControl Ergo 3 handlebar-mounted remote.

Features

• New EnergyPak 400 battery is designed to be ultra slim.
• You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
• RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar.
• The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

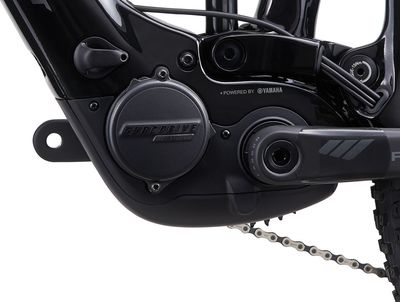

• New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg.
• The result is quicker acceleration and climbing capabilities on technical trails.

Specifications

• Motor: Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
• Controller: Giant RideControl Ergo3, grip integrated remote

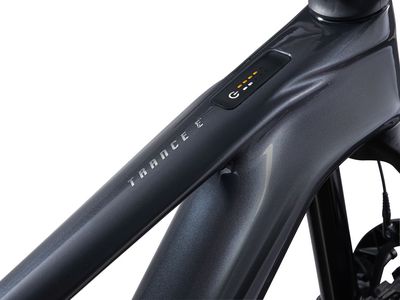

• Display: Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display"
• Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
• Charger: Giant EnergyPak 4A smart charger, 60% in 1:45
• Connectivity: Giant RideControl App enabled ANT+ wireless display signal with E-bike profile
• Sizes: S, M, L, XL
• Colours: Gunmetal Black/Black

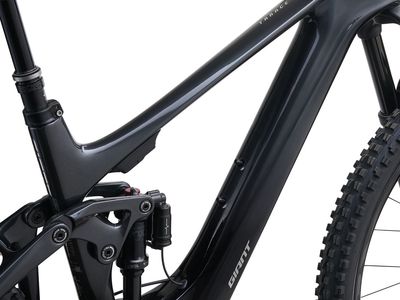

• Frame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
• Fork: Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, E-bike integrated

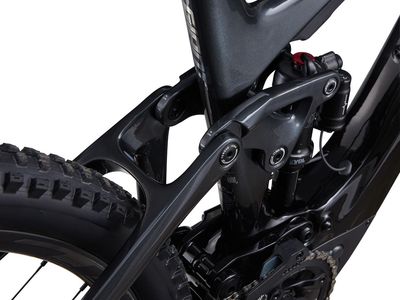

• Shock: Fox Float Performance Elite Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
• Handlebar: Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm, meets DH test standard
• Grips: Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL), Integrated for Ergo3 remote button left or right (optional)
• Stem: Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System
• Seatpost: Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
• Saddle: Giant Romero, Neutral
• Pedals: n/a
• Shifters: SRAM AXS Rocker Paddle, wireless electronic shifting
• Front Derailleur: MRP HD2 co-moulded chain guide
• Rear Derailleur: SRAM GX Eagle AXS
• Brakes: SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]
• Brake Levers: SRAM Code R
• Cassette: SRAM XG-1275, 10-52T, 12-speed
• Chain: SRAM GX Eagle PowerLock
• Crankset: Praxis Performance Carbon e-crank arms, (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring
• Bottom Bracket: n/a
• Rims: TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width
• Hubs: TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle
• Tyres: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
• Extras: Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
• Lighting: Optional: Giant Recon series E-bike lights available and direct connectable
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
