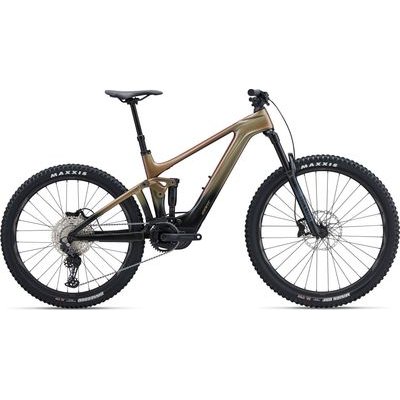

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. A NEW ULTRA-SLIM BATTERY MINIMISES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.

All-new composite frame features adjustable geometry with a new flip chip feature. The SyncDrive Pro motor delivers 85Nm of torque for a seamless boost of power even at low speeds and on technical trails. The new composite Giant Contact SLR Trail integrated handlebar has a sleek design for precision off-road control. It comes with two control centres, the RideControl Go multifunctional on/off button on the top tube, and the new RideControl Ergo 3 handlebar-mounted remote.

Features

• New EnergyPak 400 battery is designed to be ultra slim.
• You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.

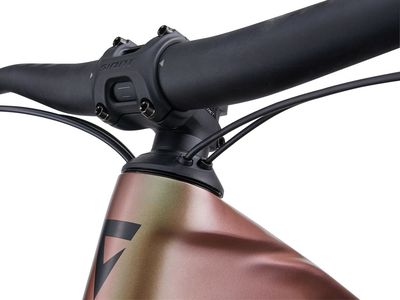

• RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar.
• The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

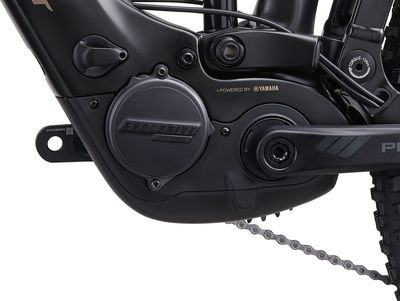

• New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg.
• The result is quicker acceleration and climbing capabilities on technical trails.

Specifications

• Motor: SyncDrive Pro, 85Nm, powered by Yamaha

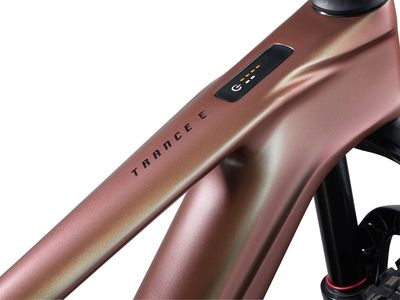

• Controller: RideControl GO integrated in TT, RideControl Ergo 3
• Display: ANT+ cycle computer compatible
• Battery: EnergyPak Smart 400 EnergyPak Plus range extender compatible
• Sizes: S, M, L, XL
• Colours: Messier/Panther

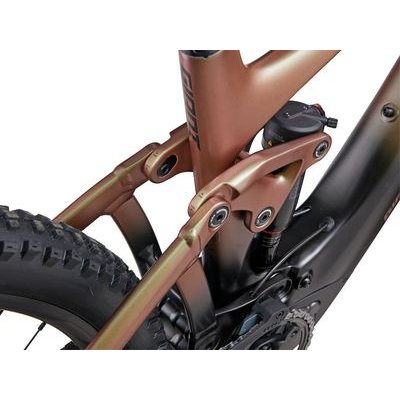

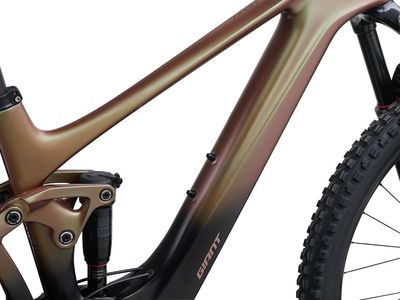

• Frame: Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
• Fork: RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized

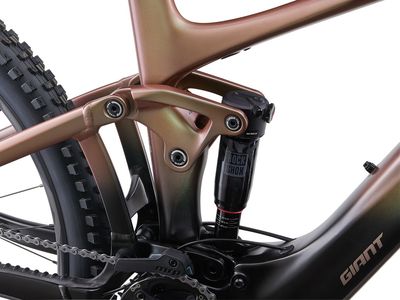

• Shock: Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned
• Handlebar: Giant Contact SL 35 Trail, 35x780mm
• Grips: Giant Tactal Pro-E, single lock-on
• Stem: Giant Contact SL 35
• Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
• Saddle: Giant Romero, Neutral
• Pedals: n/a
• Shifters: Shimano Deore
• Front Derailleur: MRP HD2 co-moulded chain guide
• Rear Derailleur: Shimano Deore 12-speed
• Brakes: Shimano BR-M420, 4-piston, hydraulic disc, 203mm
• Brake Levers: Shimano Deore, I-spec EV
• Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
• Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
• Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
• Bottom Bracket: n/a
• Rims: Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimized
• Hubs: Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
• Spokes: Sapim E-Lite [R] Race [F], e-bike optimized
• Tyres: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
• Extras: Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
• Lighting: Optional: - Giant Recon series e-bike lights available and direct connectable
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
