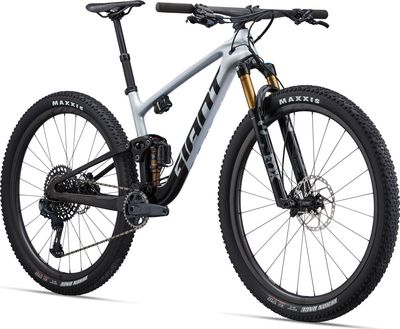

This World Cup-level XC flyer pairs FlexPoint Pro rear suspension with a super-light full composite frame and race-ready geometry. It’s the ultimate weapon for technical cross-country terrain.

Engineered with a full composite frameset, this 29er has 100mm of rear suspension travel and 110mm up front. The linkage-driven, single-pivot FlexPoint Pro rear suspension makes room for shorter chainstays to improve climbing capabilities and overall agility. Other updates include new 29er-specific XC race geometry with a longer reach and a slacker headtube angle plus a lightweight, stiff composite wheelset for quick, precise handling.

Features

• Next-generation Advanced composite mainframe and rear swingarm is 241g lighter than previous version. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.

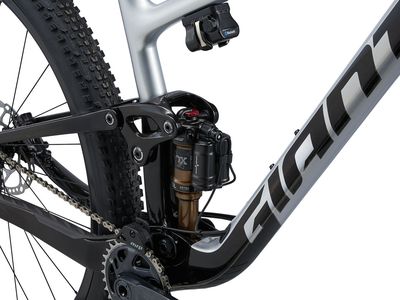

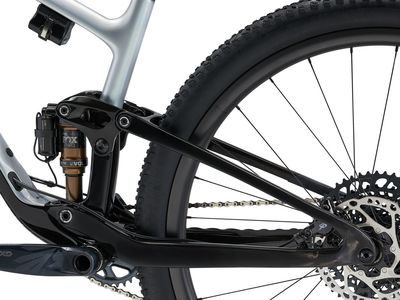

• FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.
• Frame geometry and suspension are optimised for fast and stable 29-inch wheels. A longer reach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.

Specifications

• Sizes: S, M, L, XL
• Colours: Gloss Carbon Smoke and Supernova
• Frame: Advanced-Grade Composite front and rear triangles, Flexpoint Pro Suspension, 100mm travel, 12x148mm thru-axle

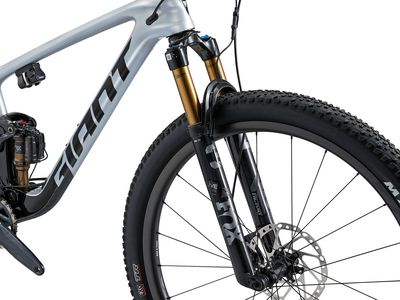

• Fork: Fox 34 Float SC Factory Live Valve, 110mm Travel, FIT4 Damper, 44mm offset, Boost 15x110 KaBolt, Tapered
• Shock: Fox Factory Live Valve, Trunnion Mount, 165x45, custom tuned for Giant

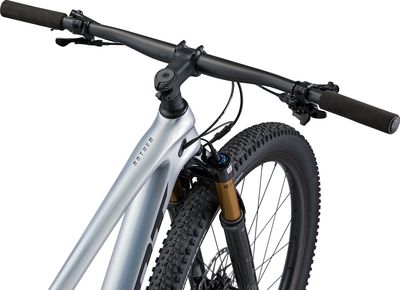

• Handlebar: NEW Giant Contact SLR XC Flat, Composite 760x35mm
• Grips: Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm
• Stem: NEW Giant Contact SL XC 35mm
• Seatpost: Giant Contact Switch dropper post with remote lever, 30.9mm
• Saddle: Fizik Antares R5 with Kium Rail
• Pedals: N/A
• Shifters: SRAM GX Eagle, 1x12
• Front Derailleur: N/A
• Rear Derailleur: SRAM GX Eagle
• Brakes: Shimano XT, BR-M8100, Hydraulic Disc, 2 piston, [F] 180 [R] 160
• Brake Levers: Shimano XT, BL-M8100
• Cassette: SRAM GX XG1275 10x52
• Chain: SRAM GX
• Crankset: SRAM GX XO, 32T, 55mm chainline, with custom Giant-MRP, 2 bolt, 1x CS chain guide
• Bottom Bracket: SRAM DUB, press fit
• Rims: Stronger than ever, the NEW XCR 1 29 hookless carbon wheelsystem with GIANT patented DBL (Dynamic Balanced Lacing) technology and 30mm rim inner width provides best-in-class strength, durability, stiffness, efficiency and lightweight tuned for the most demanding XC riding scenario
• Hubs: [F] Giant XC alloy, CenterLock, [R] Giant XC alloy, DT350 internal, 54t ratchet system, CenterLock
• Spokes: Sapim Laser
• Tyres: Maxxis Rekon Race 29X2,4" Foldable, TLR, 120tpi, EXO
• Extras: Custom Giant-MRP chain guide, Factory Tubeless Set Up, maximum tire size 2.4", maximum chainring size 34T
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

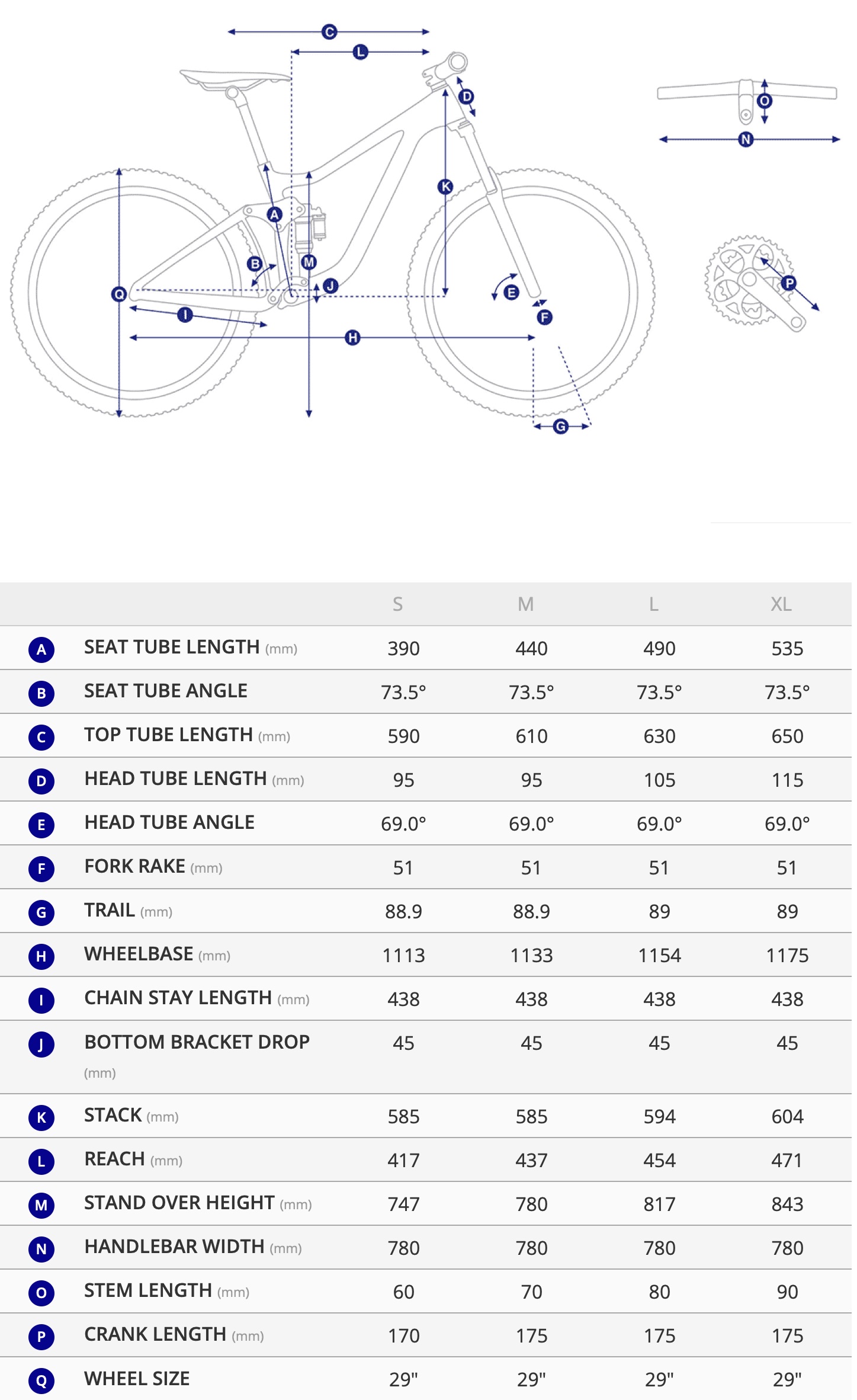

Geometry
