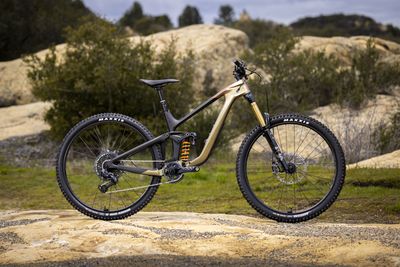

This all-new composite chassis is built strong, light and fast for Giant enduro pros. A new suspension setup been developed, tested and raced at the highest levels. And more adjustability lets you tackle technical trails just the way you like.

This full-composite frameset is engineered with enduro racing geometry and adjustability that lets you change the bike’s handling and riding characteristics with three flip chip settings. Also new is the ability to swap out the stock 29-inch rear wheel for a smaller 27.5-inch one. This “mullet” setup makes for an equally short chainstay length and a shorter reach, giving the bike a snappier feel on aggressive terrain. The updated Maestro suspension system has 160mm of rear wheel travel, paired with a 170mm fork up front. And new integrated down tube storage provides convenient carrying capacity for trail riding essentials.

Features

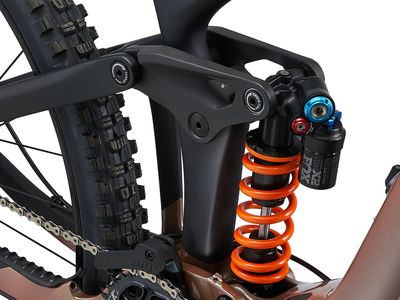

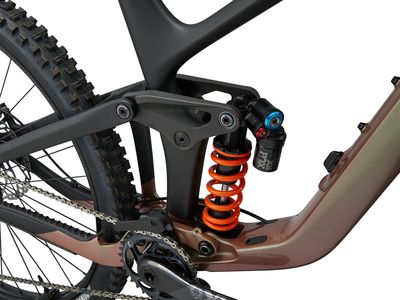

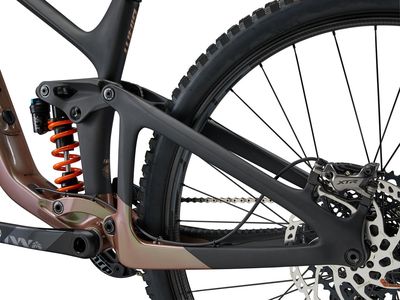

• A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
• New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.
• Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.

Specifications

• Sizes: S, M, L, XL
• Colours: Gloss Messier/Matt Carbon Smoke
• Frame: Advanced-Grade Composite front and rear triangles, Maestro Suspension, 160mm travel, 12x148mm thru-axle, integrated storage solution, 27.5" rear wheel compatible

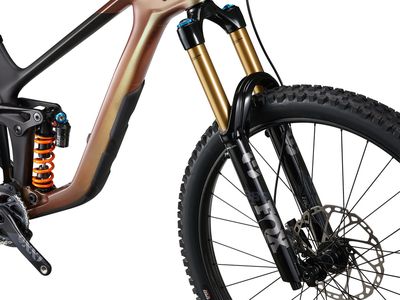

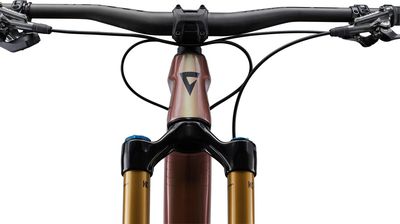

• Fork: FOX 38 Factory, GRIP2 ,170mm, ,15x110 Kabolt X, Tapered
• Shock: Fox DHX2 Factory , 2 position adjust, SLS Coil, Trunnion, 205x62,5 custom tuned for Giant
• Handlebar: Giant Contact SLR TR35, 800x35mm, 20mm rise, Carbon
• Grips: Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
• Seatpost: TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
• Saddle: Giant Romero SL
• Pedals: N/A
• Shifters: SRAM Eagle AXS Rocker 1x12
• Front Derailleur: N/A
• Rear Derailleur: SRAM XX1 Eagle AXS
• Brakes: Shimano XTR M9120, Hydraulic Disc, 4 piston [F] 220mm [R] 200mm
• Brake Levers: Shimano XTR, BL-M9120
• Cassette: SRAM X01 Eagle, 10x52
• Chain: SRAM X01 Eagle
• Crankset: SRAM XX1 Eagle AXS NGD, 34T, 55mm chainline, with MRP Amg Carbon Guide, Next Generation upper guide
• Bottom Bracket: SRAM DUB, press fit
• Rims: ZIPP 3ZERO MOTO, 30mm carbon hookless tubeless rim, with ZM2 hubs, 12 pawl leaf spring, 132 points of engagement, integrated tyrewizz.
• Hubs: ZIPP 3ZERO MOTO
• Spokes: ZIPP 3ZERO MOTO
• Tyres: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, 60 TPI, EXO+, TR, [R] MaxxisDHRII 29x2,4WT, 3C MaxxTerra, DD 2x60 120 TPI TR
• Extras: Factory tubeless set up including sealant, max tyre size 2.6", max chainring size 34T
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
