Unlock new terrain with this progressive new gravel bike featuring front suspension technology. The lightweight aluminium frame has suspension-optimised geometry and a flip chip that lets you adjust wheelbase and tyre clearance for any adventure.
An ALUXX aluminium frameset with suspension-optimised geometry is paired with a purpose-built short-travel (40mm) fork. A flip chip on the rear dropouts allows you to adjust the wheelbase and increase tyre clearance up to 53mm.You can use the included dropper seatpost, switch to a proprietary D-Fuse seatpost, or use a traditional 30.9mm round seatpost. A Contact SL D-Fuse handlebar minimises fatigue by further absorbing shocks and vibrations.
Features
- Lightweight aluminium frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster over rugged gravel and dirt.
- Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
- A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.
Specifications
- Sizes: S, M, M/L, L, XL
- Colours: Gloss Cold Night/Aged Denim
- Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
- Fork: RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
- Shock: N/A
- Handlebar: Giant Contact SL XR D-Fuse, 16-degree flare S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
- Grips: cork tape with gel
- Stem: Giant Contact, 8-degree :60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
- Seatpost: Postmodern, dropper, 30.9mm with 25mm of suspension 415mm length / 100mm drop
- Saddle: Giant Approach
- Pedals: PEDALS NOT SUPPLIED
- Shifters: SRAM Rival 1, 1x11
- Front Derailleur: N/A
- Rear Derailleur: SRAM Rival 1
- Brakes: SRAM Rival 1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
- Brake Levers: SRAM Rival 1, left lever dropper switch
- Cassette: SRAM Rival, 11-speed, 11x42
- Chain: SRAM PC-1130
- Crankset: SRAM Rival D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket: SRAM DUB, threaded
- Rims: Giant XCT-1 Disc WheelSystem
- Hubs: Shimano cup and cone
- Spokes: Stainless steel
- Tyres: Giant CrossCut Grip 1, 700x45c, tubeless
- Extras: Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
- Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

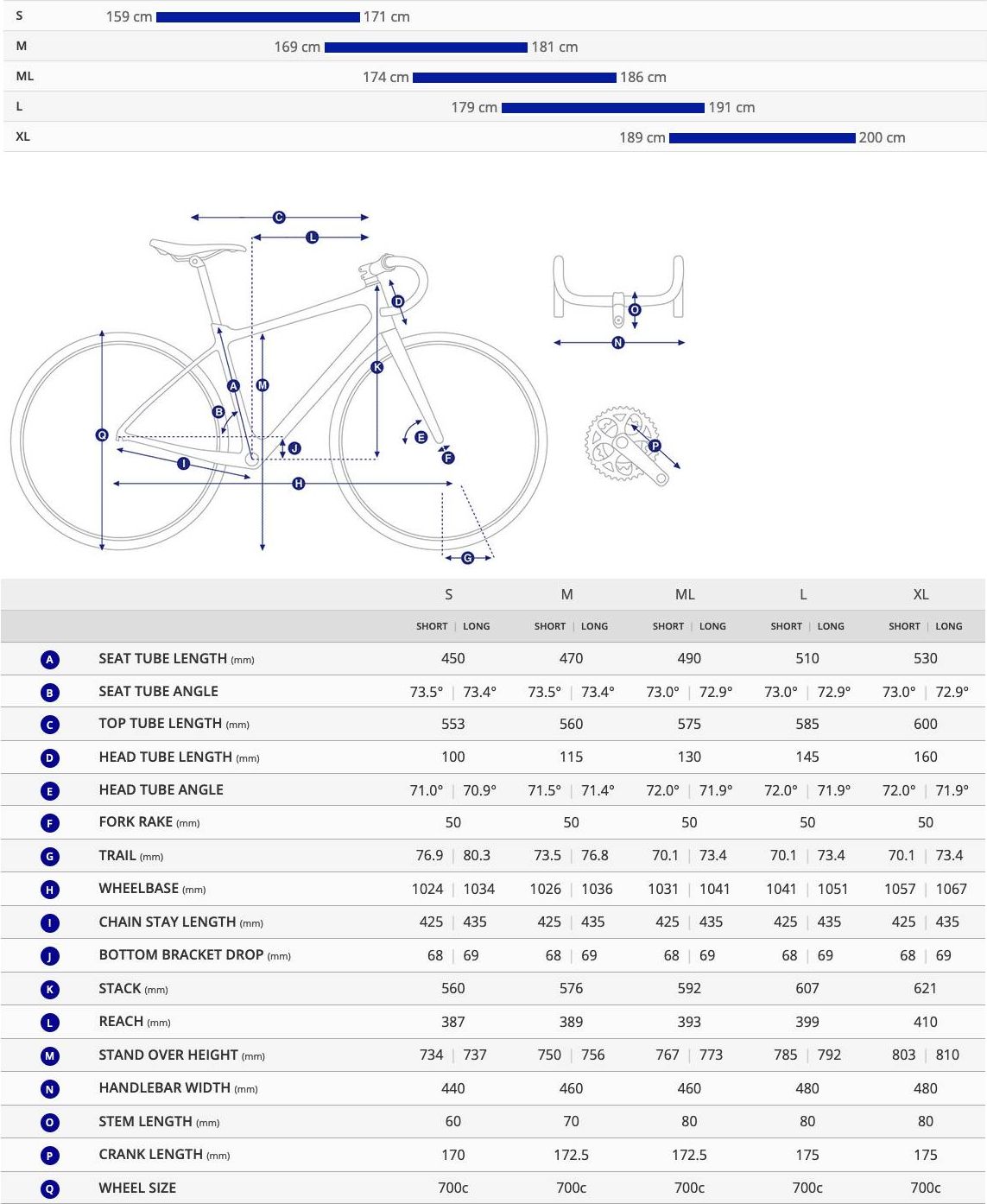

Geometry
Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
This could include but not limited to specification or colour
Manufacturer's Code: 2312026116, 2312026117, 2312026118, 2312026114, 2312026115
Barcodes: 4712878879027, 4712878879034, 4712878879041, 4712878879003, 4712878879010
