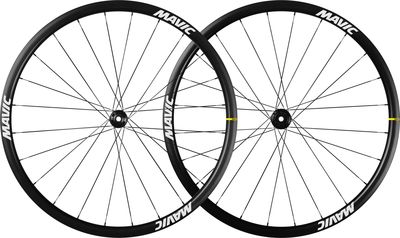

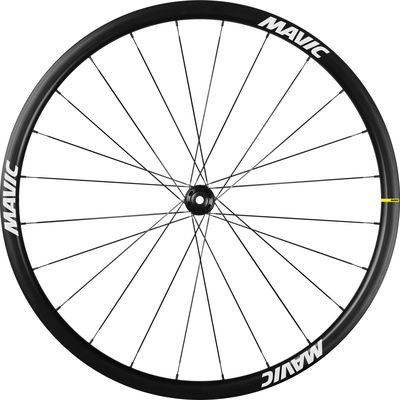

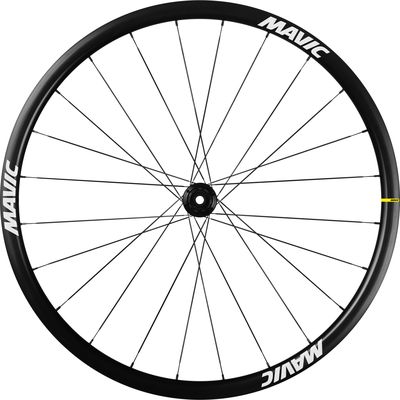

A 30mm deep tubeless friendly rim that’s light and dynamic, laced with double butted spokes on our state-of-the-art Infinity hub. All the Mavic quality and performance within reach

Features

• The Ksyrium 30 Disc is a perfect entry point into high-level race performance. This all-new UST Road Tubeless system delivers a smoother ride and improved puncture resistance while retaining a lightweight feel for climbing and accelerating.
• By removing the tube, we’ve also removed friction, so there’s less rolling resistance, which means it requires less energy to reach higher speeds.
• The 30mm deep rim optimizes aero performance and improves stability in crosswinds.
• The alloy rim benefits from our unrivaled experience creating light yet strong rim extrusions.
• We do this by carefully tuning the thickness of the rim wall to hit the sweet spot between stiffness, strength and weight.
• The bladed straight pull spokes are laced to our high-end Infinity hub platforms : optimal spoke tension balance is a guarantee for perfect stiffness and great durability, with only 1 spokes length for both wheels to worry about.
• The Instant Drive 360 ratchet freewheel system is quick to engage and offers low friction.
• This hub easily converts from Shimano/SRAM to Campagnolo or XD cassette and is compatible with Center Lock disc rotors.

Specifications

• Pair : 1776 g
• Front : 823 g
• Rear : 953 g

Rims

• Material: Maxtal
• Height: 30 mm
• Drilling: traditional
• Disc brake specific profile
• Tire: UST Tubeless and tubetype
• Internal width: 19 mm
• ETRTO size: 622x19TC
• UST tubeless technology
• Joint: SUP welding technology

Spokes

• Material: steel
• Shape: straight pull, flat, double butted
• Nipples: steel, ABS
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Front and rear bodies: aluminum
• Axle material: aluminum
• QRM Auto bearing preload technology
• Instant Drive 360 freewheel technology
• Front: Quick release and 12x100 through axle compatible
• Rear: Quick Release, 12x142 and 12x135 compatible
• Hub available for Center Lock brake rotors only
• Infinity hub design
• Versions
• Disc standard: Center Lock® only
• Freewheel: Shimano/Sram
• Compatibility
• Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional driver bodies
• Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
• Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
• Compatible Adapters and freewheel bodies
• 12 to 9mm front adapter for quick release (V2680301 sold separately)
• 12mm front hub cap (V2680501 sold separately)
• 12x142 rear axle adapters (V2510701 sold separately)
• 12 to 9mm rear adapter for quick release (V2510801 sold separately)
• ID360 Shimano / Sram Light freewheel body (V3850101 sold separately)
• ID360 Campagnolo freewheel body (V3440101 sold separately)
• ID360 XD-R freewheel body (V2580101 sold separately)
• ID360 Shimano / Sram freewheel body (V3430101 sold separately - Delivered on the wheel)
• ID360 N3W freewheel body (V4270101 sold separately)

Delivered with

• Front QR adapters
• Rear QR adapters for Instant Drive 360
• UST valve and accessories
• Pre-installed tubeless rim tape
• User guide

Intended use

• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
• Maximum tyre pressure: 6.75bar/97PSI with a 23mm tyre - 3.8bar/55PSI with a 62mm tyre
• Recommended tire sizes: 25 to 32 mm
• Max. Pressure: see indication on wheel and tire. If they differ, use the lowest of the 2
