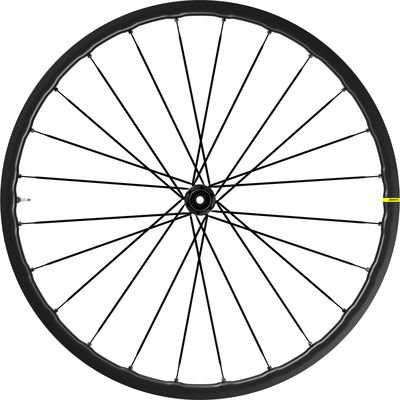

Ever wondered what the world’s best alloy road wheel might look like? Lightweight but durable, laterally stiff but vertically compliant, confident braking and easy tubeless compatibility—it’s all here in the all-new Ksyrium SL Disc

Features

• Ksyrium has always represented the best of aluminum wheel technology. Following in the footsteps of the venerable Ksyrium Elite and Ksyrium Pro, the all-new Ksyrium SL Disc lives up to that standard.
• If you're looking for one aluminum wheelset for weekend races and training mileage, wherever the road takes you, this is your best choice.
• This new wheel is superlight (120g lighter than the former Ksyrium Elite UST Disc) and durable as ever thanks to our patented ISM4D technology. This manufacturing process removes all excess material between each spoke hole while keeping the rim wall thick enough where spoke tension and stress is the highest.
• Those rims are made in France, in our aluminum rim factory.
• The double-butted spokes contribute to the weight reduction while making the wheel more responsive. These spokes also have a patented elliptical shape that can save 5 watts for added efficiency.
• Stiffness is optimized using Fore technology. The upper bridge is not drilled, so it remains strong and rigid and doesn’t require the use of a rim tape (another 30g saved per wheel). The rim bed’s new shape makes it easier than ever to mount and remove tires, and our UST Tubeless technology improves rolling resistance and grip while reducing the risk of punctures. Our new Infinity hub platform optimizes stiffness and power transfer with highly controlled spoke tension, while an Instant Drive 360 freewheel coupled with our automatic bearing preload adjustment (QRM Auto) delivers fast engagement and durability.
• Engineered specifically for disc brakes, the wheels are compatible with a 12x100 axle up front, and 12x142 rear and can convert to Quick Release with supplied adapters. For Center Lock disc rotors only. It's available for Shimano or Sram XD-Road cassettes and can convert to Campagnolo with an optional driver body.

Specifications

Weight

• Pair : 1575 g
• Front : 723 g
• Rear : 852 g

Rims

• Material: Maxtal
• Height: 22 mm
• Disc brake specific profile
• Weight reduction: ISM 4D
• Tire: UST Tubeless and tubetype
• Internal width: 19 mm
• ETRTO size: 622x19TC
• Drilling : Fore tapeless tubeless technology
• UST tubeless technology
• Joint: SUP welding technology

Spokes

• Material: steel
• Shape: straight pull, elliptical aero, double butted (patented)
• Nipples: Fore integrated aluminum
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Front and rear bodies: aluminum
• Axle material: aluminum
• Freewheel: Shimano/Sram
• QRM Auto bearing preload technology
• Instant Drive 360 freewheel technology
• Front: Quick release and 12x100 through axle compatible
• Rear: Quick Release, 12x142 and 12x135 compatible
• Hub available for Center Lock brake rotors only
• Infinity hub design
• Compatibility
• Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional driver bodies
• Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters and axle replacement
• Front axle: 12x100 thru axle, easily convertible to quick release with optional adapters. Not compatible with 15mm through axles
• Compatible Adapters and freewheel bodies
• 12 to 9mm front adapter for quick release (V2680301 sold separately)
• 12 to 9mm rear adapter for quick release (V2510801 with axle V2373401 sold separately)
• ID360 Shimano / Sram Light freewheel body (V3850101 sold separately)
• ID360 Campagnolo freewheel body (V3440101 sold separately)
• ID360 XD-R freewheel body (V2580101 sold separately)
• ID360 Shimano / Sram freewheel body (V3430101 sold separately - Delivered on the wheel)
• ID360 N3W freewheel body (V4270101 sold separately)

Delivered with

• UST valve and accessories
• User guide

Intended use

• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
• Maximum tyre pressure: 6.75bar/97PSI with a 23mm tyre - 3.8bar/55PSI with a 62mm tyre
• Recommended tire sizes: 25 to 32 mm
• Max. Pressure: see indication on wheel and tire. If they differ, use the lowest of the 2
