Climb, corner and descend with greater speed, more control and maximum efficiency. From the mountains to the flats, in all conditions, this lightweight composite road racer takes you to the next level.

Features

• Class-leading efficiency: Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.
• Advanced aerodynamics: This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
• Total control: Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling.

Specifications

• Sizes: S, M, M/L, L, XL
• Colours: Gloss Blue Dragonfly/Chrome
• Frame: Advanced-grade composite, disc
• Fork: Advanced-grade composite, full-composite OverDrive 2 steerer, disc
• Shock: N/A
• Handlebar: Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact SL S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost: Giant Variant, composite, -5/+15mm offset
• Saddle: Giant Fleet SL
• Pedals: N/A
• Shifters: SRAM Force AXS 2x12
• Front Derailleur: SRAM Force AXS
• Rear Derailleur: SRAM Force AXS

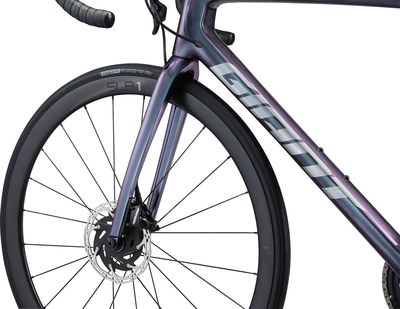

• Brakes: SRAM Force AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
• Brake Levers: SRAM Force eTap AXS hydraulic
• Cassette: SRAM Force, 12-speed, 10x33
• Chain: SRAM Force D1

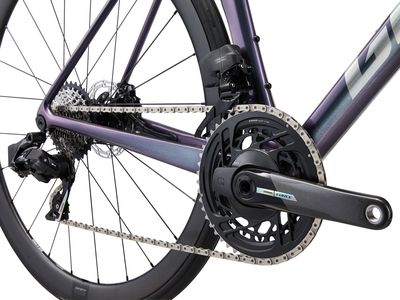

• Crankset: SRAM Force D1 DUB, 33/46 with Quarq Dzero power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
• Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
• Spokes: Sapim CX-Ray
• Tyres: CADEX Race, tubeless, 700x25c (26.5mm), folding
• Extras: computer mount, factory tubeless set up, 32mm max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
