From the Tour de France to your local KOM, this legendary race bike is a proven winner in all aspects of road racing. Ridden to victory by WorldTour pros like Simon Yates, it’s the ultimate all-rounder for the performance obsessed.

Features

• Class-leading efficiency: Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.
• Advanced aerodynamics: This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
• Total control: Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling.

Specifications

• Sizes: S, M, M/L, L
• Colours: Gloss Raw Carbon
• Frame: Advanced SL-grade composite, integrated seatpost, disc
• Fork: Advanced SL-grade composite, full-composite OverDrive 2 steerer, disc
• Shock: N/A

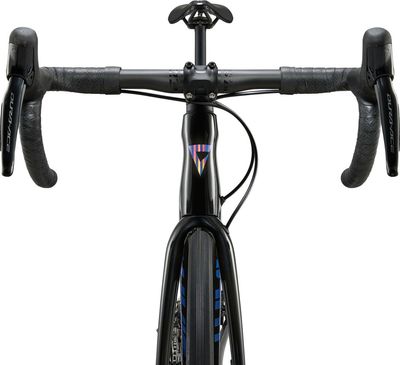

• Handlebar: Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact SLR S:90mm, M:100mm, M/L:110mm, L:110mm
• Seatpost: Advanced SL-grade composite, integrated design, -5/+15mm offset
• Saddle: Giant Fleet SLR
• Pedals: N/A
• Shifters: Shimano Dura-Ace Di2 ST-R9270 2x12
• Front Derailleur: Shimano Dura-Ace Di2 ST-R9250

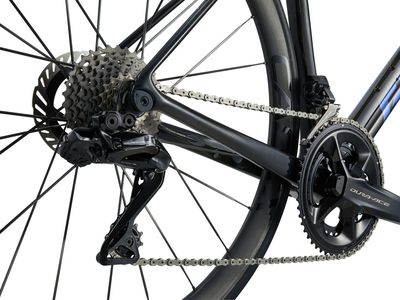

• Rear Derailleur: Shimano Dura-Ace Di2 ST-R9250
• Brakes: Shimano Dura-Ace Di2 hydraulic, Shimano RT-CL900 rotors [F]160mm, [R]140mm
• Brake Levers: Shimano Dura-Ace Di2 hydraulic
• Cassette: Shimano Dura-Ace, 12-speed, 11x34
• Chain: Shimano Dura-Ace M9100

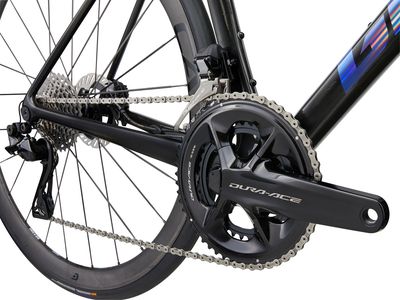

• Crankset: Shimano Dura-Ace, 36/52 with FC-9200P power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm
• Bottom Bracket: Shimano, press fit
• Rims: CADEX 36 Disc WheelSystem, [F] 36mm, [R] 36mm
• Hubs: [F] CADEX R1 Hub, CenterLock, 12mm thru-axle [R] CADEX R1-C30 Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
• Spokes: CADEX Aero Carbon
• Tyres: CADEX Race, tubeless, 700x25c (26.5mm), folding
• Extras: computer mount, factory tubeless set up, 32mm max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
