Inspired by riders who enjoy long days in the saddle, the DOGMA X is about more than just performance; the bike has been engineered from the ground up to heighten the emotional experience of cycling and reshape how we think about endurance and speed. It will redefine how we think about performance, offering real-world comfort.

Features

CARBON T1100 1K

High tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.

X STAYS

A new Pinarello technology capable of absorbing vibrations maintaining a light weight frame and a very reactive BB stiffness

ASYMMETRIC FRAME PINARELLO X

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

TYRE CLEARANCE UP TO 35MM

35mm tires to unlock the frames’ true potential in terms of both comfort and speed.

Specifications

• FRAME: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
• CRANKSET AND CHAINRINGS: Shimano Dura Ace Di2 12s POWER METER
• FRONT DERAILLEUR: Shimano Dura Ace Di2 FD-9200 11S
• REAR DERAILLEUR: Shimano Dura Ace Di2 RD-R9200 12s
• CASSETTE: Shimano Dura Ace CS-R9200 12S
• CHAIN: Shimano Dura Ace CN-HG 12S
• BOTTOM BRACKET: Shimano Dura Ace SM-BB9200
• FRONT BRAKE DISC: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
• REAR BRAKE DISC: Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor
• INTEGRATED HANDLEBAR: MOST Talon Ultra Light
• SADDLE: Most Lynx Ultrafast Superflow L Carbon Large 145mm
• SEATPOST: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
• SEAT CLAMP: Seatclamp Twinforce, titanium bolts
• TYRES DISC: Pirelli P ZERO Race TLR 35-622
• WHEELSET DISC: PRINCETON GRIT 4540 DB
• AXLES DISC: Ultra Light Custom Axle 12x100 & 12x142, tool free removal
• BOTTLES AND BOTTLE CAGES: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

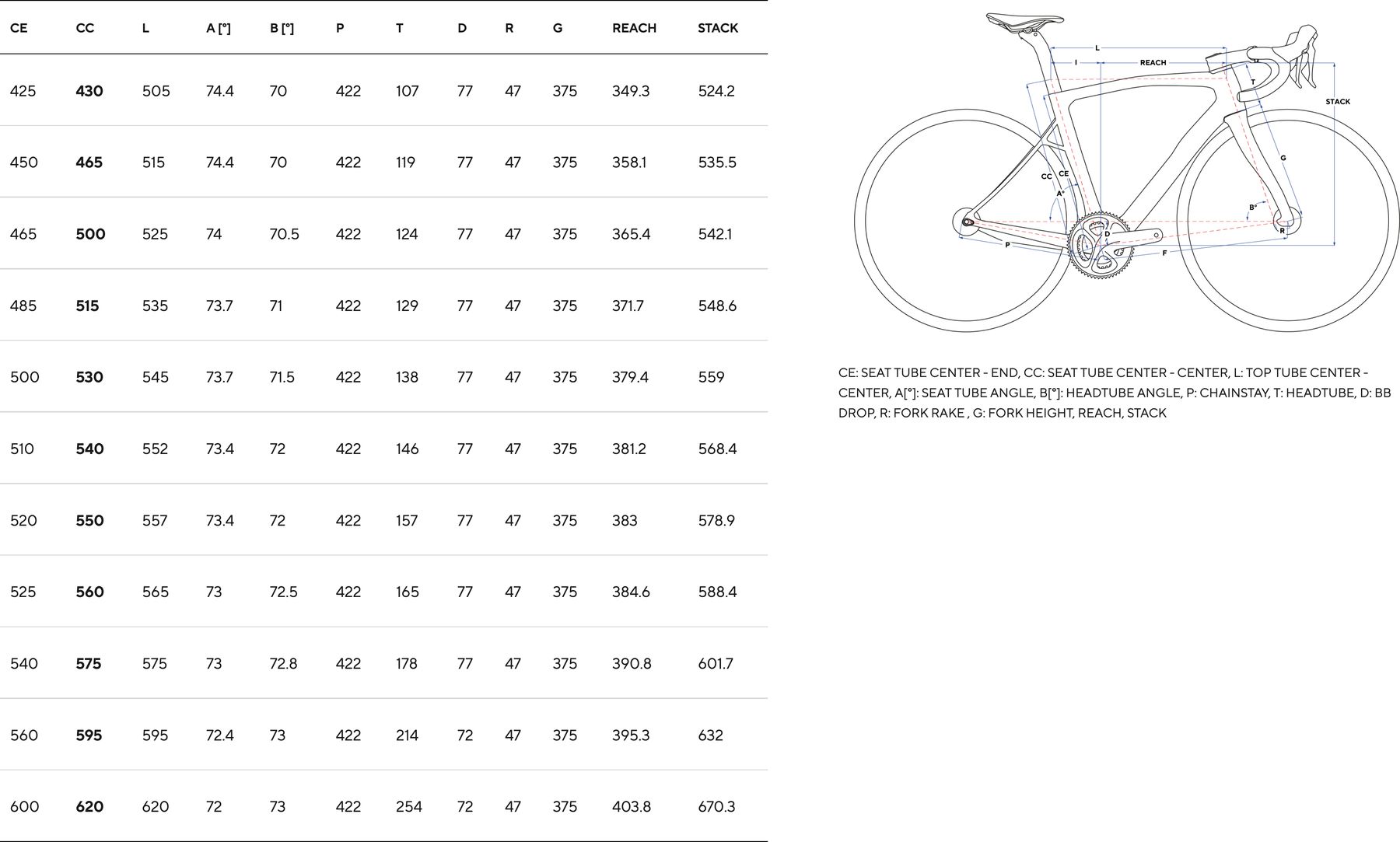

Geometry

• XXS: 43cm
• XS: 46,5cm
• S: 50cm
• S/M: 51,5cm
• M: 53cm
• M/L: 54cm
• L: 55cm
• L/XL: 56cm
• XL: 57,5cm
• XXL: 59,5cm
• XXL: 62cm
