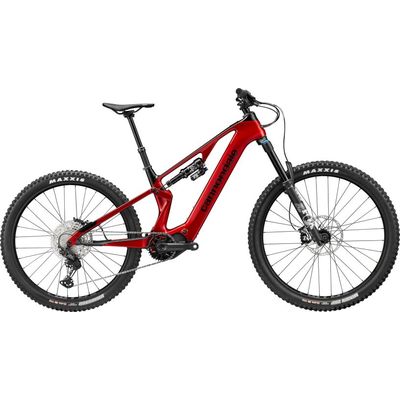

Moterra SL is the first 150mm trail bike to pack 85Nm of torque, 600W+ of peak output, and 601Wh of power into a machine weighing as little as 19.7kg /43.4lbs. Full-power fun meets lightweight agility – it’s in a class of its own. *eMTB with drive unit capable of at least 85Nm of torque and battery capacity of at least 600Wh.

Features

• Light and durable, full carbon, 150mm travel FlexPivot frame with Proportional Response suspension kinematics
• Premium Fox suspension - 160mm Performance Float 36 fork & Performance Elite Float X rear shock
• Reliable, smooth shifting, Shimano XT/Deore 12-speed w/ e*thirteen e*spec Plus cranks
• Powerful, dependable Magura MT5 4-piston hydraulic disc brakes
• Cannondale-tuned Shimano EP801 motor & custom, high-energy-density 601Wh internal battery

Specifications

• Frame: Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, 1-1/8” – 1.5” tapered headtube, angle adjust headset
• Fork: Fox Performance 36, 160mm travel, Grip Damper, 3-position adjust, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
• Rear Shock: Fox Float X Performance Elite, 2 pos adj, EVOL LV, 210x55mm
• Rims: WTB KOM Tough i30, 30mm inner width, TCS tubeless ready
• Hubs: (F) Formula DC-71132h, 15x110mm / (R) DT Swiss 370 Hybrid, 32h, 12x148mm
• Spokes: DT Swiss Champion
• Tires: (F) Maxxis DHF, 29x2.5 ", 2C, EXO, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 2C, EXO, tubeless ready
• Pedals: Not Included
• Crank: e*thirteen e*spec Plus, 165mm, 34T
• Chain: Shimano Deore 6100, 12-speed
• Rear Cogs: Shimano Deore 6100, 10-51, 12-speed
• Rear Derailleur: Shimano XT
• Shifters: Shimano Deore M6100, 12-speed
• Handlebar: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
• E-Bike Drive Unit: Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
• Grips: Cannondale TaperRidge
• E-Bike Battery: Custom 601Wh battery
• Stem: Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
• E-Bike Display: Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
• Headset: Acros Adjustable Angle (1.2°)
• E-Bike Charger: Custom 4A
• Brakes: Shimano Deore 6120 4-piston hydraulic disc, 203mm RT66 rotors
• Saddle: Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail 7x7mm
• Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)
• Sizes: SM, MD, LG, XL

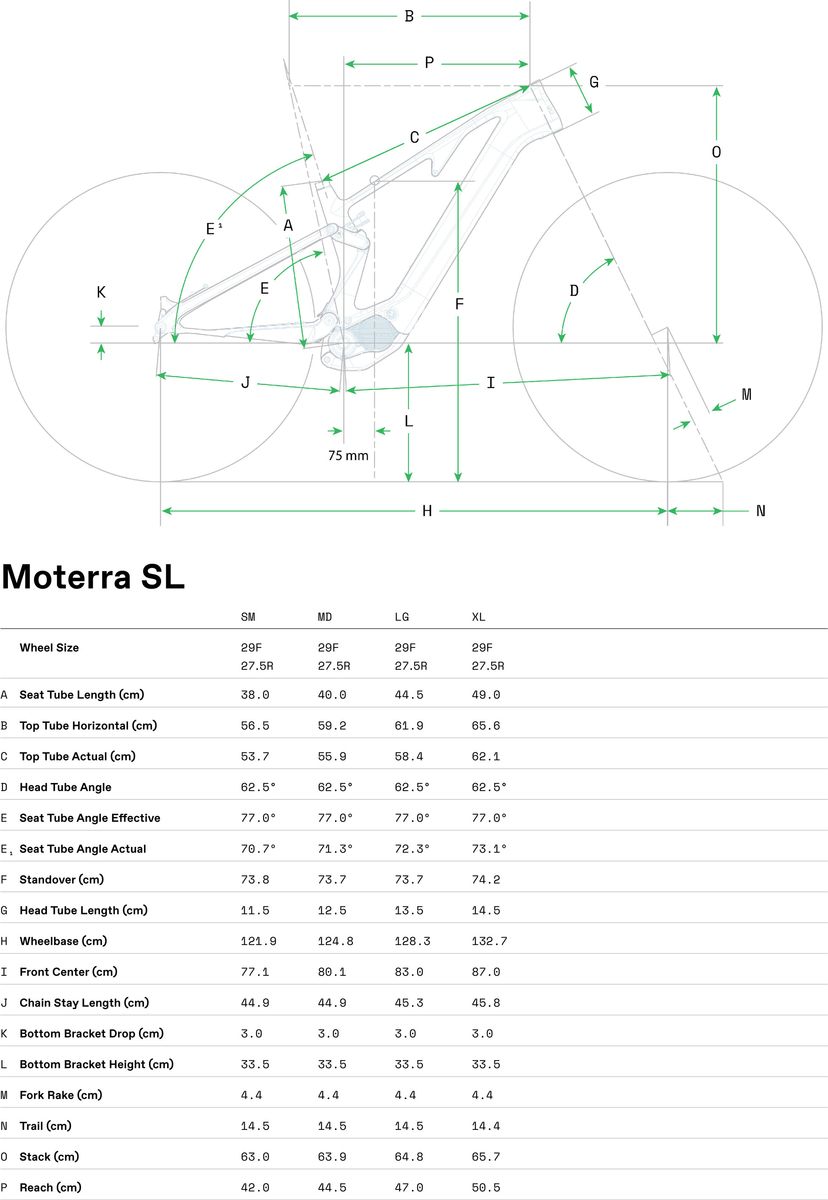

Geometry
