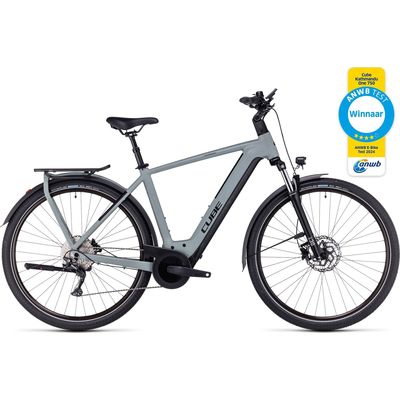

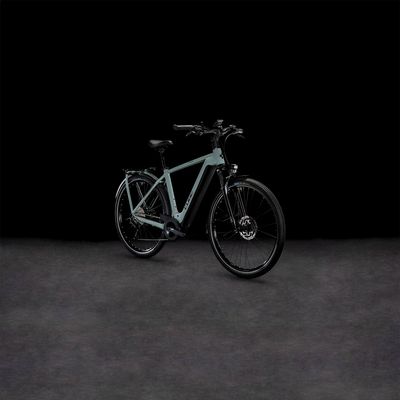

The Kathmandu Hybrid ONE is the bike to take you wherever your imagination leads you. With Bosch's smooth, powerful fourth-generation CX drive unit, a high-capacity battery and Shimano's easy-to-use, legendarily reliable 1x10 gears, you'll be able to make light work of any journey. Across town or across countries, the Suntour suspension fork, suspension seatpost and adjustable stem will keep you comfortable. Powerful Shimano hydraulic disc brakes give you the stopping power you need in all weathers. And a full complement of accessories, from lights and mudguards to the latest generation of our Integrated Carrier, means you're ready for anything.

Designed for comfort, versatility and durability, the Kathmandu's frame – whether you choose the Men's version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.

Specifications

• Net weight: 27.5 Kg

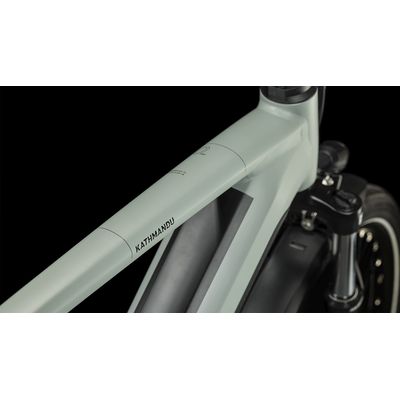

• Frame description: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
• Fork: SR SUNTOUR NVX30 Coil, 100mm
• Headset: Acros M/Z: AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• Stem: Cube Comfort Stem Pro, 31.8mm, Adjustable
• Handlebar: Cube Comfort Trail Bar, 700mm
• Handlebar tape/Grips: Acid Travel Comfort

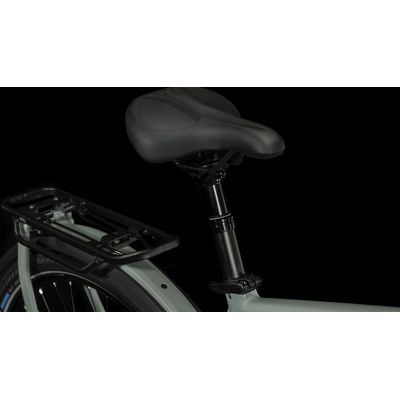

• Seatpost: Cube Suspension Seatpost HD, 30.9mm
• Seatpost clamp: Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: Screwlock Semi Integrated, 36mm)
• Saddle: Natural Fit Sequence Comfort
• Rear derailleur: Shimano Deore RD-M4120-SGS, 10-Speed
• Crankset: Acid Integrated Carrier 3.0, CUBE Adapter Compatible
• Cassette: Shimano Deore CS-M4100, 11-42T
• Chain: KMC X10
• Shifters: Shimano Deore SL-M4100-R, Rapidfire-Plus
• Front brake: Shimano BR-MT200, Hydr. Disc Brake (180/180)
• Rear brake: Shimano BR-MT200, Hydr. Disc Brake (180/180)
• Rims: Rodi Blackrock 23, 36H, Disc, Tubeless Ready
• Front hub: Shimano HB-TX505, QR, Centerlock
• Rear hub: Shimano FH-MT400-B, 12mm, Boost, Centerlock
• Front tyre: Schwalbe Big Ben, Performance, K-Guard, 55-622

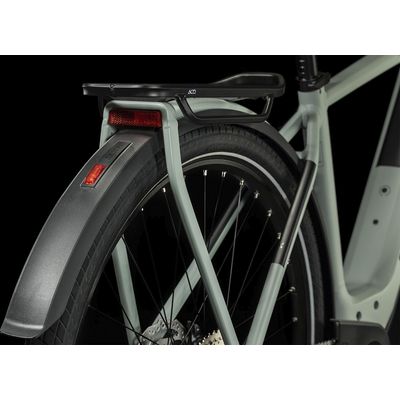

• Mudguards: Acid 65 Integrated Carrier 3.0
• Carrier: Acid Integrated Carrier 3.0, CUBE Adapter Compatible
• Rear light: Acid Mudguard Rear Light PRO-E, 12V, DC

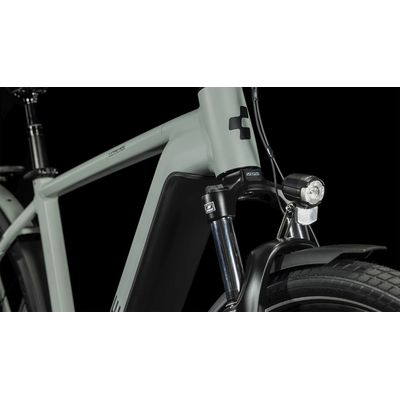

• Front light: Cube Shiny 50 Lux, 12V, DC
• Pedals: Acid PP Trekking
• Standard: Acid FM Pure Kickstand
• Engine: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System

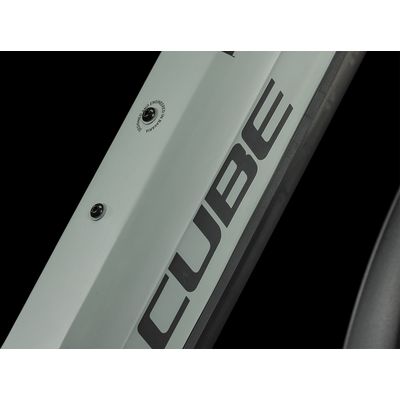

• Battery: Bosch PowerTube 750
• Display: Bosch Intuvia 100
