Drawing inspiration from our mountain bike hardtails, the Editor's frame uses double-butted aluminium tubes to create a structure that's strong, durable, light and lively. Neatly integrated luggage carrier and mudguard mounting points make it easy to customise, and the eccentric bottom bracket and split dropout accommodate the low-maintenance belt drive. The sleek rigid fork is the perfect accompaniment, offering crisp, precise steering to match its low weight and understated looks.

We've edited the ideal urban bike down to its purest form. With fast-rolling wheels, reassuringly nimble and precise handling, low maintenance gears and an understated paint finish, drivers will barely have time for an admiring glance before you're out of sight down the road...

Features

• Urban Geometry: City streets are the natural home of our urban bikes, so we gave them geometry to match. Nimble for weaving safely through traffic, with ideal weight distribution for great grip and safe braking and cornering, Urban Geometry is precisely what you need to help you navigate the mean streets safely... and beat the gridlock.

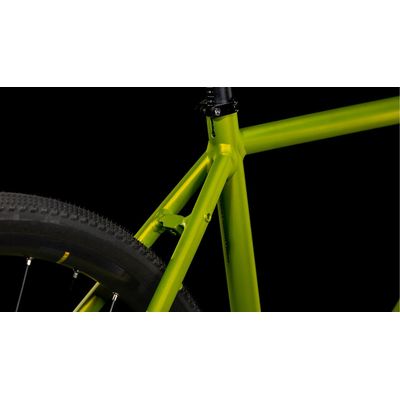

• Mounting Points: At CUBE we believe even a functional bike should be attractive. The carrier and mudguard mounting points for our Nature series are designed specifically to provide a strong, secure anchor point for these useful accessories. But they're also unobtrusive and elegant, so your bike still looks great.

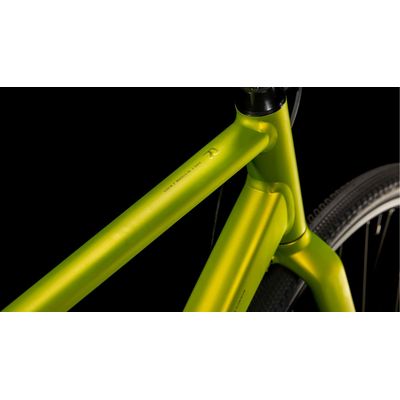

• Semi Internal Cable Routing: Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.

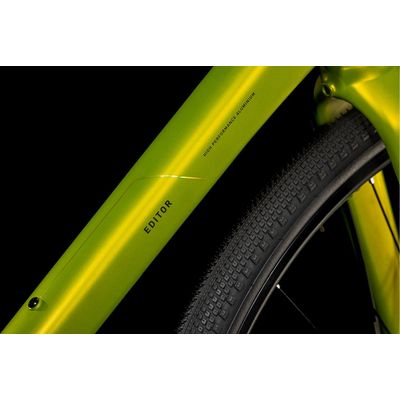

• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

• Frame: Aluminium Superlite, Urban, Double Butted
• Fork: Aluminium Rigid Fork
• Headset: VP Semi-Integrated, Top 1/18", Bottom 1 1/8", Sealed Bearing
• Stem: CUBE Performance Stem Pro, 31.8mm

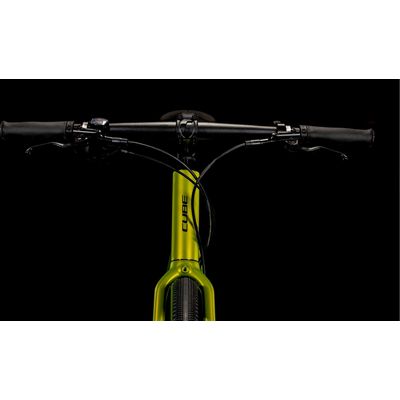

• Handlebar: CUBE Flat Race Bar, 660mm
• Grips: ACID Travel
• Shifters: Shimano Alfine SL-S7000
• Brakes: Shimano BR-MT200, Hydr. Disc Brake (160/160)
• Bottom Bracket: Thun Zumba

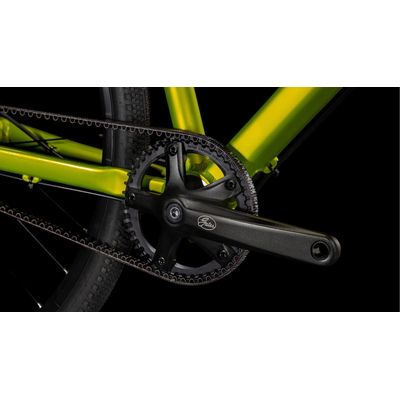

• Crankset: Gates S150 CDN, 46T, 45.5mm Beltline
• Chainring: 46T
• Gear Teeth: Gates Rear Sprocket CDC, 45.5mm Beltline, 22T
• Gears: 8
• Belt: Gates CDX, 113T
• Rims: CUBE EX25, 32H, Disc, Tubeless Ready
• Front Hub: Shimano HB-QC400, QR, Centerlock
• Rear Hub: Shimano Alfine SG-S700, 8-Speed
• Tyres: Schwalbe G-One, ActiveL, 40-622
• Pedals: CUBE PP MTB
• Saddle: ACID Nuance Lite
• Seatpost: CUBE Performance Post, 27.2mm
• Dropper: NO
• Seatpost Clamp: CUBE Screwlock, 31.8mm
• Bell: Knog Oi
• Net Weight (kg): 12,5
• Gross Weight (kg): 15,68
• Max. System Weight (kg): 140

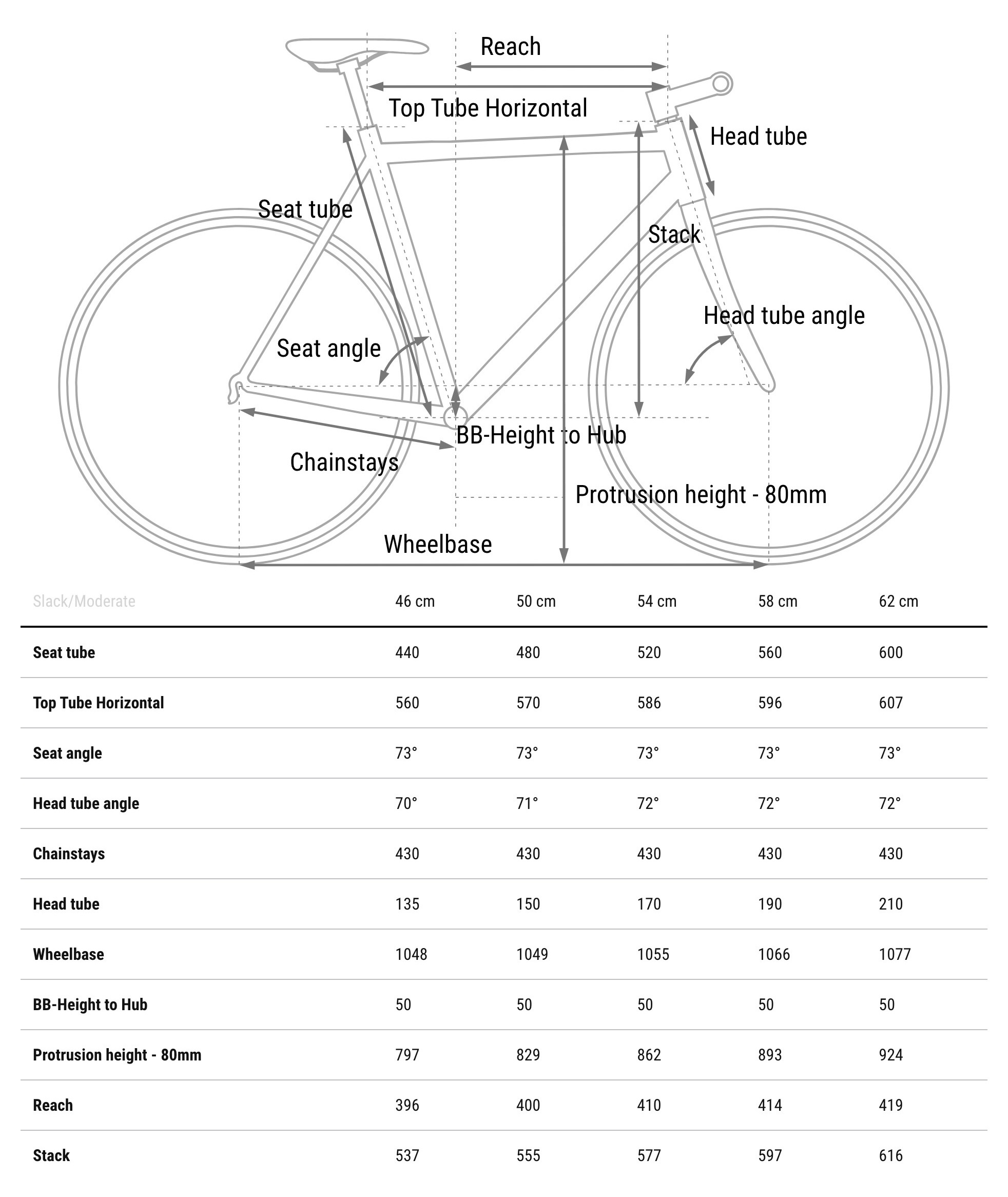

Geometry
