The heart of the Touring is its high-quality, low-weight, double-butted aluminium frame. Designed with our Efficient Comfort Geometry to make light work of even long days in the saddle, it'll surprise you with its nimble and intuitive handling. With a range of five sizes, there's bound to be a Classic frame that's the perfect fit for you. Each one features our semi-integrated luggage carrier, Flat Mount kickstand and gear cables routed inside the down tube, for long-lasting accurate gear shifts with minimal maintenance.

When you're out exploring you want a bike that's comfortable. So we designed the Touring ONE's frame with our Efficient Comfort Geometry, which does exactly what it says, whichever frame style you choose. With a full complement of practical accessories, including luggage carrier, mudguards, kickstand and lights, it's all you need for new adventures.

Features

• Trekking Comfort Geometry: Our trekking series is designed to take you wherever your curiosity leads you. So, of course, you'll want a comfortable ride. With a natural feeling seated position and handling that's stable and reassuring with or without a load, Trekking Comfort Geometry does exactly what it says no matter how much experience you have of cycling.
• Semi Internal Cable Routing: Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

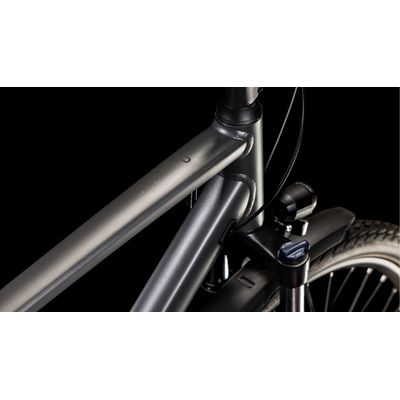

• Frame: Aluminium Superlite, Trekking Comfort, Double Butted
• Fork: SR Suntour NEX HLO, 63mm, Lockout
• Headset: CUBE H863, 1 1/8", Semi-Integrated

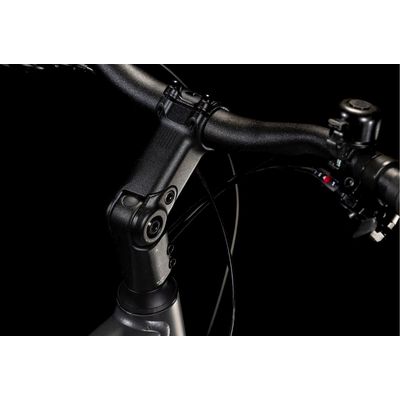

• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Grips: ACID Travel Comfort
• Rear Derailleur: Shimano Cues RD-U4020-SGS, 9-Speed
• Front Derailleur: Shimano Cues FD-U4010, Top-Swing, 31.8mm
• Shifters: Shimano Cues SL-U4010- Rapidfire-Plus
• Brakes: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/180)
• Bottom Bracket: Shimano BB-MT501, 68mm BSA

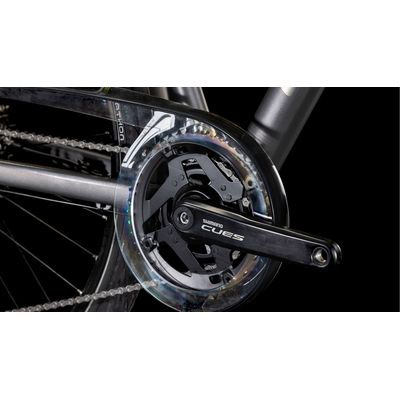

• Crankset: Shimano Cues FC-U4010, Hollowtech ll, 46x30T, Chainguard
• Chainring: 46X30T
• Cassette: Shimano CS-LG300, 11-36T
• Gears: 18
• Chain: KMC xGlide
• Rims: CUBE ZX20, 36H, Disc, Tubeless Ready
• Front Hub: Shimano DH-3D37, Hub Dynamo, QR, Centerlock
• Rear Hub: Shimano FH-QC300-HM, QR, Centerlock
• Tyres: Schwalbe Marathon Green, Perf, 47-622
• Pedals: CUBE PP MTB
• Saddle: Natural Fit Sequence
• Seatpost: CUBE Performance Post, 27.2mm
• Dropper: NO
• Seatpost Clamp: CUBE Screwlock, 31.8mm

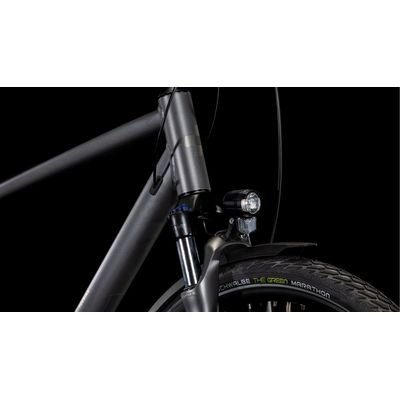

• Front Light: CUBE Shiny 50
• Rear Light: ACID Mudguard Rear Light PRO-D, 6V, AC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 53 BB-Mount
• Bell: Easy Bell

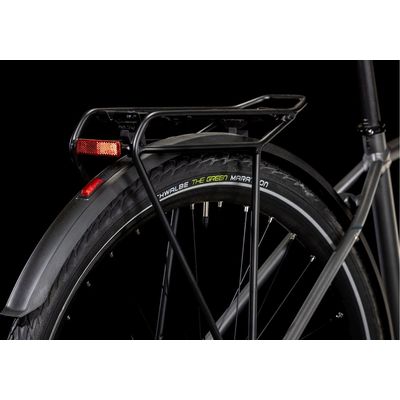

• Carrier: ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
• Net Weight (kg): 17,2
• Gross Weight (kg): 22,2
• Max. System Weight (kg): 120

Geometry
