Attention to detail is a CUBE obsession. That's why, with the Kathmandu's Integrated Carrier 3.0, we designed it to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush.

Ruggedness and elegance don't often go hand in hand, but the Kathmandu Pro from CUBE is the exception that proves the rule. With its Integrated Carrier 3.0, Smooth Welding and Internal Cable Routing, it's as practical as it is great to look at. And the flat mount kickstand, ACID mudguards and lighting set mean you're all set for anything. Where to next?

Features

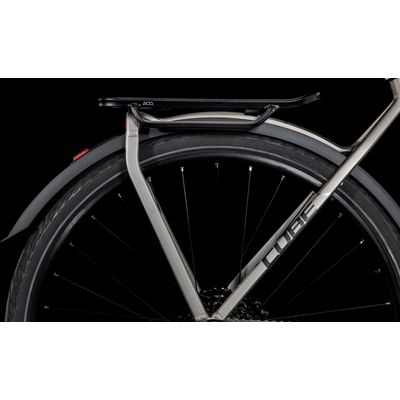

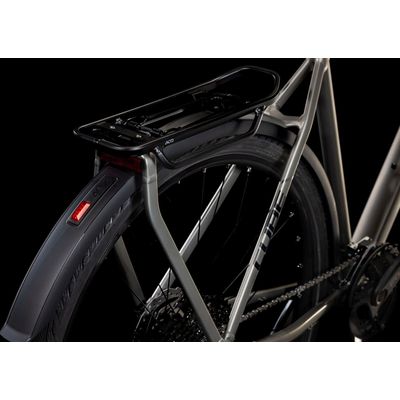

• Integrated Carrier 3.0: The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
• Trekking Comfort Geometry: Our trekking series is designed to take you wherever your curiosity leads you. So, of course, you'll want a comfortable ride. With a natural feeling seated position and handling that's stable and reassuring with or without a load, Trekking Comfort Geometry does exactly what it says no matter how much experience you have of cycling.

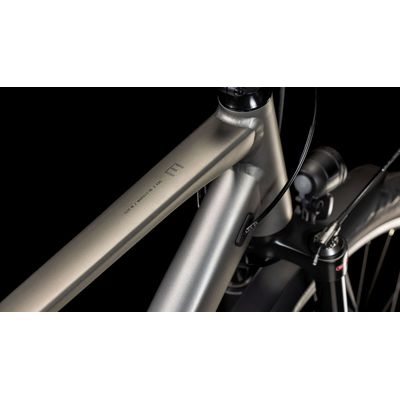

• Smooth Welding: Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.
• Semi Internal Cable Routing: Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

• Frame: Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted
• Fork: SR Suntour NCX E RL Air T, 63mm, Remote Lockout
• Headset: VP Integrated, Top 1 1/8", Bottom 1 1/2"
• Stem: CUBE Performance Stem Pro, 31.8mm
• Handlebar: CUBE Comfort Trail Bar, 680mm
• Grips: ACID Travel Comfort
• Rear Derailleur: Shimano Cues RD-U8020-SGS, 11-Speed
• Front Derailleur: Shimano Cues FD-U6010, Top-Swing, 31.8mm
• Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
• Brakes: Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180)
• Bottom Bracket: Shimano BB-MT501, 68mm BSA
• Crankset: Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard
• Chainring: 46X32T
• Cassette: Shimano Cues CS-LG700, 11-45T
• Gears: 22
• Chain: KMC xGlide
• Rims: CUBE EX25, 32H, Disc, Tubeless Ready
• Front Hub: Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
• Rear Hub: Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
• Tyres: Continental Pure Contact, 47x622, Foldable
• Pedals: CUBE PP MTB
• Saddle: ACID Sequence Pro 160
• Seatpost: CUBE Performance Post, 27.2mm
• Dropper: NO
• Seatpost Clamp: CUBE Screwlock, 31.8mm
• Front Light: CUBE IQ-XS-Friendly N plus
• Rear Light: ACID Mudguard Rear Light PRO-D, 6V, AC
• Kickstand: ACID FM Pure Kickstand
• Mudguard: ACID 56 Integrated Carrier 3.0
• Bell: Easy Bell
• Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
• Net Weight (kg): 16
• Gross Weight (kg): 21
• Max. System Weight (kg): 140

Size Guide

Geometry
