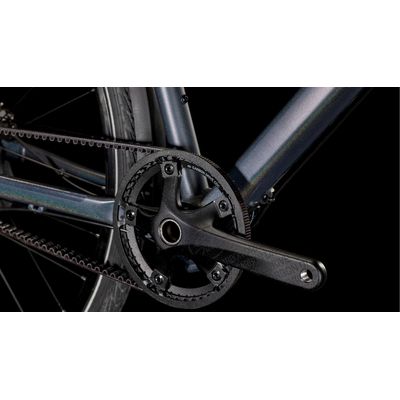

Scratch beneath the surface of its familiar appearance, and you'll find there's more to the Editor FE's trapeze frame than meets the eye. Take the eccentric bottom bracket and split dropout – they're there to accommodate the super-convenient, easy-to-live-with belt drive. You'll have spotted the included mudguards, luggage carrier, kickstand and lighting set. What you can't see is the double-butted tubing, but you'll appreciate its light weight and lively ride feel. And the rigid fork completes the package.

Lights, mudguards, carrier... action! The Editor Race FE has everything you need to beat the city traffic and get you to your destination in style and comfort – low-maintenance gears, hydraulic disc brakes and fully equipped for your daily commute and more.

Features

• Urban Geometry: City streets are the natural home of our urban bikes, so we gave them geometry to match. Nimble for weaving safely through traffic, with ideal weight distribution for great grip and safe braking and cornering, Urban Geometry is precisely what you need to help you navigate the mean streets safely... and beat the gridlock.
• Full Equipped: A bicycle is such a versatile tool. That's why many riders add accessories like a luggage carrier, mudguards, kickstand and lights. But with our Fully Equipped range you don't have to, because we've already taken care of all of that. With carefully selected accessories that match and integrate with each bike, you're all set for any journey from the weekday commute to a longer tour.
• Semi Internal Cable Routing: Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

• Frame: Aluminium Superlite, Urban, Double Butted
• Fork: Aluminium Rigid Fork
• Headset: VP Semi-Integrated, Top 1/18", Bottom 1 1/8", Sealed Bearing
• Stem: CUBE Performance Stem Pro, 31.8mm
• Handlebar: CUBE Comfort Trail Bar, 700mm
• Grips: ACID Travel
• Shifters: Shimano Alfine SL-S700
• Brakes: Shimano BR-MT410, Hydr. Disc Brake (160/160)
• Bottom Bracket: Gates BSA
• Crankset: Gates S301 CDC, 45.5mm Beltline
• Gear Teeth: Gates CDX, 45.5mm Beltline, 22T
• Gears: 11
• Belt: Gates CDX, 113T
• Rims: CUBE EX25, 32H, Disc, Tubeless Ready
• Front Hub: Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
• Rear Hub: Shimano Alfine SG-S7001, 11-Speed
• Tyres: Schwalbe Marathon Green, PerfL, 37-622
• Pedals: CUBE PP MTB
• Saddle: Natural Fit Sequence
• Seatpost: CUBE Performance Post, 27.2mm
• Dropper: NO
• Seatpost Clamp: CUBE Screwlock, 31.8mm

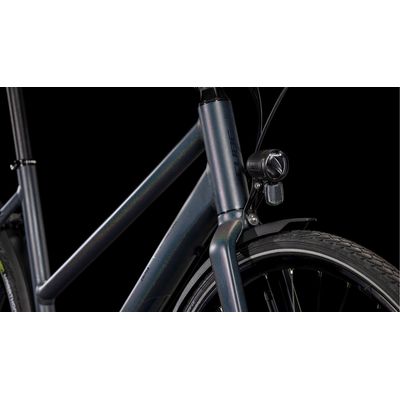

• Front Light: CUBE IQ-XS-Friendly N Plus
• Rear Light: ACID Mudguard Rear Light PRO-D, 6V, AC
• Kickstand: CUBEstand Pro, Adjustable
• Mudguard: ACID 45 BB-Mount
• Bell: Knog Oi

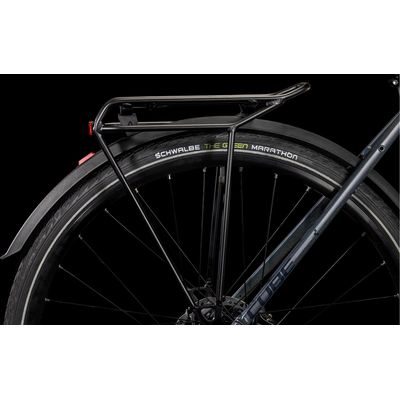

• Carrier: ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
• Net Weight (kg): 14,6
• Gross Weight (kg): 19,6
• Max. System Weight (kg): 140

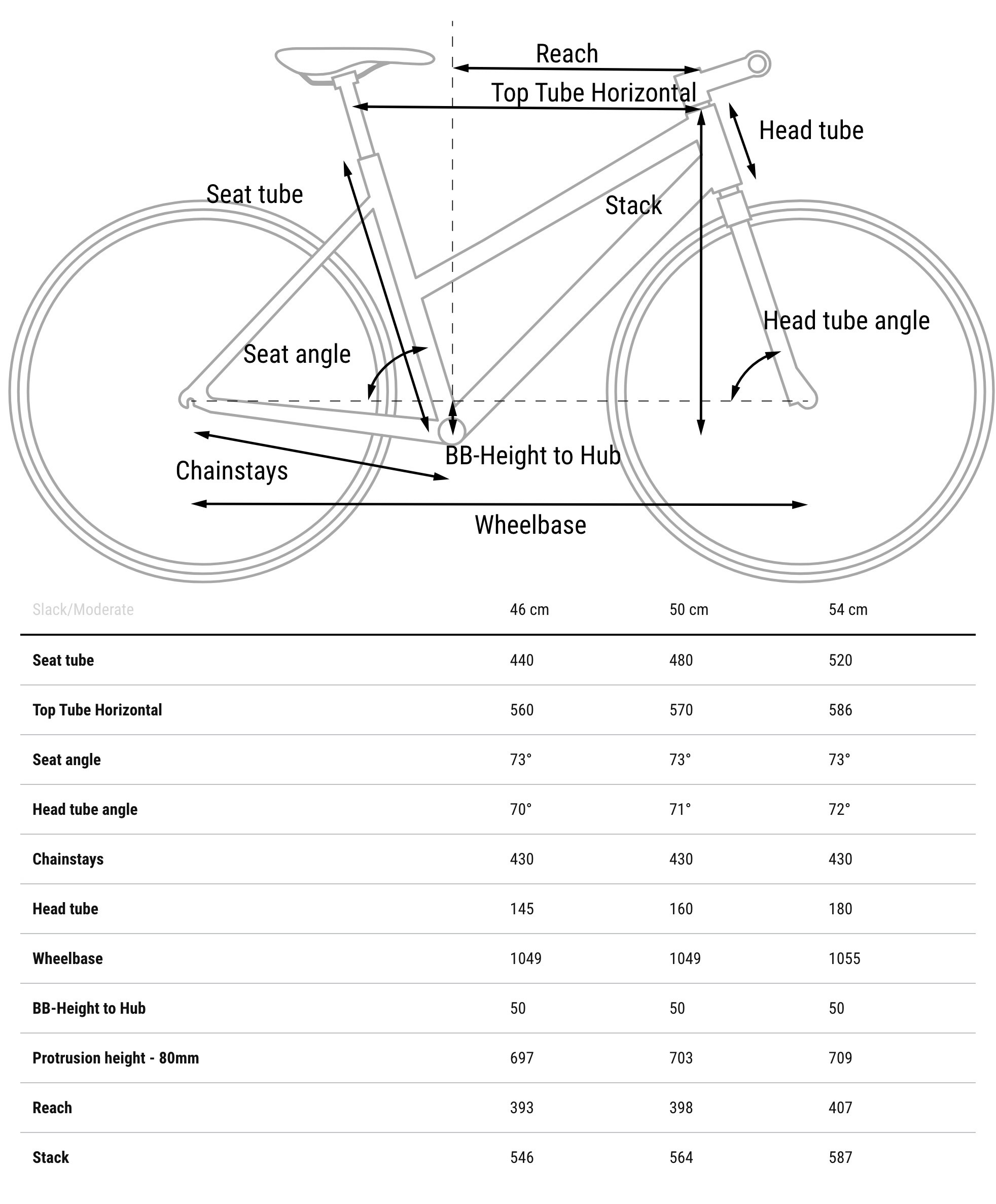

Geometry
