Versatile can be fast, and fast can be versatile, too. That's why, with the Nulane frame, we added mounting points for easy mudguard and carrier upgrades. There are even lowrider rack points on the full carbon fork, so it's practical as well as comfortable. Superlite double-butted aluminium frame tubes keep the weight down. We added flat mount disc attachment points for sleek looks and the best stopping performance. And finished off with thru axles front and rear to ensure safe and predictable handling, laden or unladen.

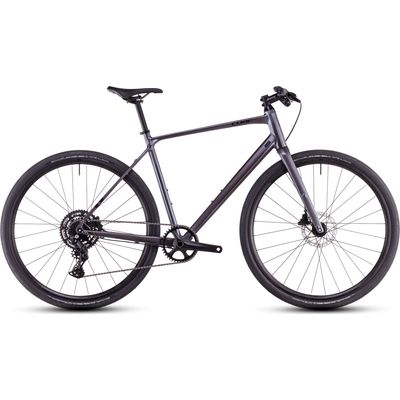

The Nulane takes the road bike rule book and throws it into the nearest gutter. Flat bars, road bike DNA, a responsive frame and carbon fork add up to easy speed. Luggage carrier and mudguard mounting points equal practicality. It's an urban assault speed machine and a rugged explorer, rolled into one.

Features

• Fender & Rack Option: A gravel bike is a supremely versatile beast, which is why all our gravel models have a fender and rack option. With generous frame clearances to fit comfortable, safe and grippy tyres even with full length mudguards, we also neatly integrated the rear rack into the mudguard design – and included a rear light, too.
• Gravel Comfort Geometry: Combining everything we know about building great-riding off-road bikes, Gravel Comfort Geometry is the secret ingredient that makes our gravel series such a blast to ride. Nimble enough to mix it up in the rough, stable enough for reassuring descents and with comfort for the long haul, we've got it all covered.
• Semi Internal Cable Routing: Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.
• Aluminium Superlite: CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Specifications

• Frame: Aluminium Superlite Trekking Sport, Flat Mount Disc, 12x142mm, AXH
• Fork: CUBE TS Disc, Full Carbon, Taper, Flat Mount, 12x100mm
• Headset: VP Semi-Integrated, 1 1/8", Bottom Integrated, 1 1/4"
• Stem: CUBE Performance Stem Pro, 31.8mm
• Handlebar: CUBE Flat Race Bar, 660mm
• Grips: ACID Travel

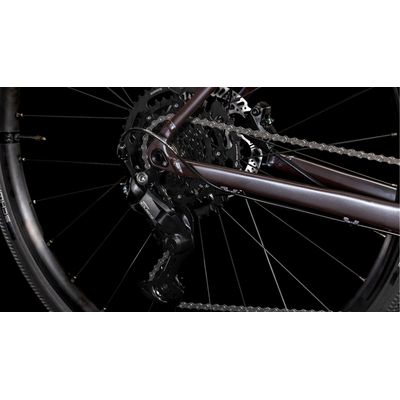

• Rear Derailleur: Shimano Cues RD-U4000-GS, 9-Speed
• Shifters: Shimano Cues SL-U4010- Rapidfire-Plus
• Brakes: Tektro HD-R280, Hydr. Disc, Flat Mount (160/160)
• Bottom Bracket: Shimano BB-MT500PA, 92mm Pressfit
• Crankset: ACID Gravel Pro, 40T
• Chainring: 40T
• Cassette: Shimano Cues CS-LG300, 11-46T
• Gears: 9
• Chain: KMC xGlide
• Wheelset: CUBE OR 2.5 Disc, Tubeless Ready
• Tyres: Schwalbe G-One Allround, Kevlar, 40-622
• Pedals: CUBE PP MTB
• Saddle: ACID Nuance Lite
• Seatpost: CUBE Performance Post, 27.2mm
• Dropper: NO
• Seatpost Clamp: CUBE Screwlock, 31.8mm
• Net Weight (kg): 10,3
• Gross Weight (kg): 13,1
• Max. System Weight (kg): 115

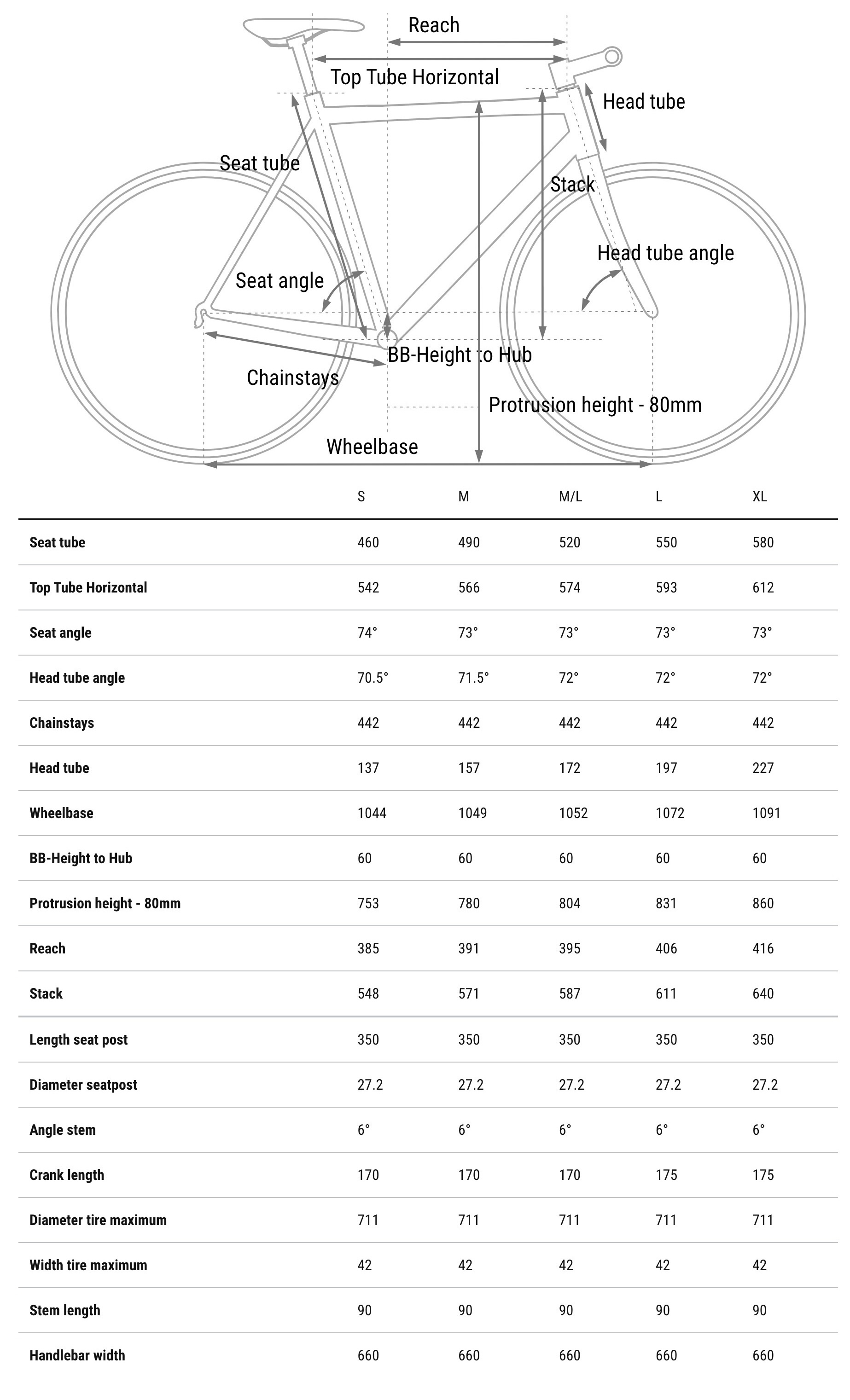

Geometry
