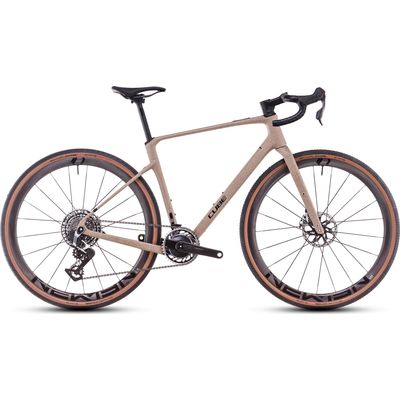

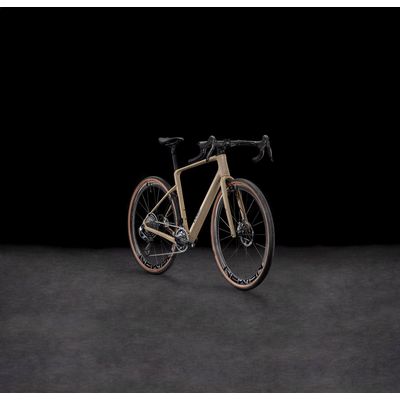

The Nuroad C:62 frame takes everything we know about carbon gravel frames and takes it up a notch. We increased tyre clearance up to 50mm (45mm with mudguards). There's an integrated seat clamp and semi-integrated cable routing to complement the frame's elegant, organic appearance. It's UDH-ready, for versatility and future-proofing. The C:62® carbon fork has two carrier mounting positions. And the frame weight for all this practical innovation? Just 1,150g for a mid-sized frame. So it's tough, but also extremely light. That's versatility, redefined for a new era of gravel exploration.

Nothing opens up possibilities like a gravel bike. And nothing rides quite like the distinctive carbon'n'gloss Nuroad C:62, which takes all of our gravel know-how and condenses it into a light, agile and comfortable exploring machine. Take the road less travelled, and see where it takes you...

Features

• C:62® Carbon Fiber Technology: Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

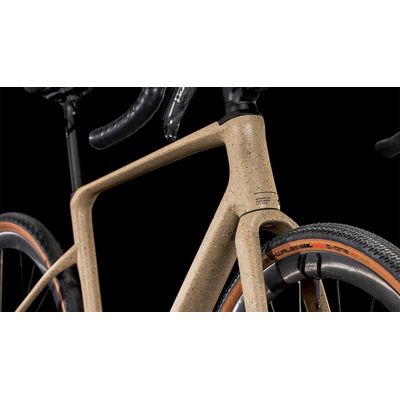

• Advanced Internal Cable Routing: Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

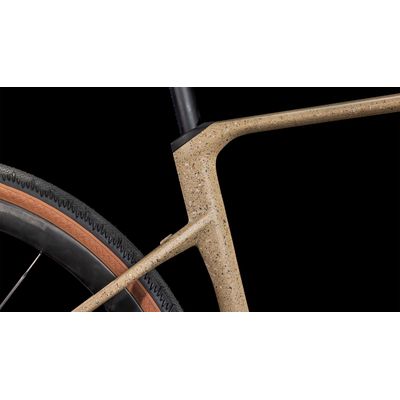

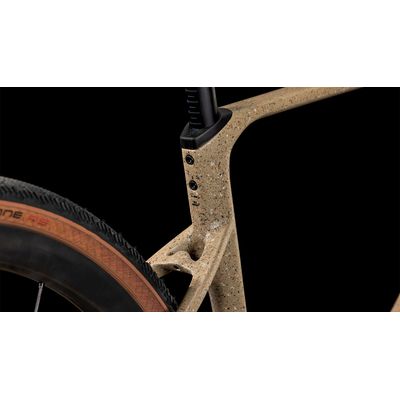

• Integrated Seatpost Clamp: Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...
• Fender/Rack & Kickstand Option: It's the little details that make the difference. With the option to easily fit full length mudguards, a luggage rack and kickstand you can make your bike that little bit more versatile and easier to live with. Wet roads, stuff to carry or nowhere to lean your bike up when you arrive? No problem – we've got it covered.
• Optional low rider: Adventure sometimes demands different kit. That's where our low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.
• Gravel Endurance Geometry: For gravel epics – or races – into the back country and beyond, our Gravel Endurance Geometry is designed with you in mind. With a ride position optimised for long days in the saddle and frame angles and dimensions geared towards the perfect balance of agility and stability, it's all you need for off-road adventure.
• Advanced Twin Mold: With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
• 3rd bottle cage mount: Because the Nuroad C:62 is built for adventure, we added a third bottle cage mount under the down tube. Use it for carrying tools and a spare inner tube, or carry another water bottle – the choice is yours. Either way, you're all set for extended exploring.
• Chain guide for 1x transmission: Rough roads and tracks shake everything up. To keep everything where it should be and avoid the hassle of a dropped chain, we fitted the Nuroad C:62 with a chain guide for a 1x transmission. Because it's purpose-designed for the job, there's almost no way to shake the chain off the chainring... so you can concentrate on the riding.

Specifications

• Frame: C:62® Advanced Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, UDH™
• Fork: CUBE C:62® Technology, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm
• Headset: ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/2"
• Stem: CUBE CIS Stem w/ Cable Routing
• Handlebar: Newmen Advanced Gravel Bar 318, Carbon, 31.8mm
• Handlebar Tape: ACID Bartape CX

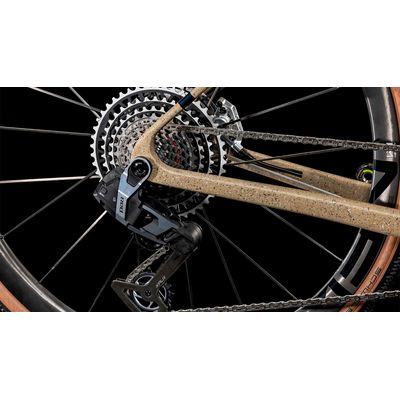

• Rear Derailleur: Sram Red XPLR AXS™, 13-Speed
• Brake Levers: Sram Red AXS™
• Brakes: Sram Red AXS™, Hydr. Disc Brake (160/160)
• Bottom Bracket: Sram DUB Road Wide, Pressfit

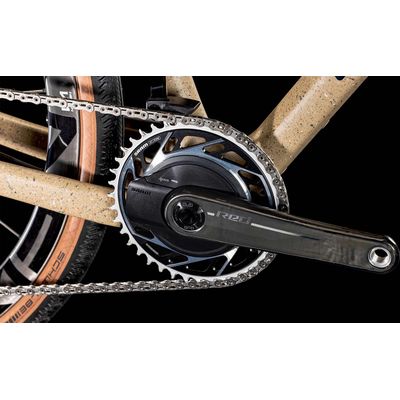

• Crankset: Sram Red XPLR Power Meter, Carbon, 40T
• Chainring: 40T
• Cassette: Sram Red XPLR XG-1391, 10-46
• Gears: 13
• Chain: Sram Red E1
• Wheelset: Newmen Advanced SL X.R.36 VONOA Carbon, 21/21 Carbon Spokes, 12x100mm/12x142mm, Tubeless Ready
• Tyres: Schwalbe G-One-R, Kevlar, 40-622
• Rear Tyre: Schwalbe G-One-RS, Kevlar, 40-622
• Saddle: ACID Nuance SLT X Carbon
• Seatpost: Newmen Advanced, Carbon, 27.2mm
• Dropper: NO
• Net Weight (kg): 7,5
• Gross Weight (kg): 11,6
• Max. System Weight (kg): 115
