When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1,600g. Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there are even Acros angle adjustment inserts to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.

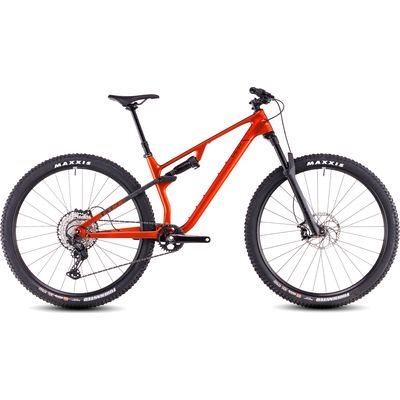

Fast, light, nimble and surprisingly hard-hitting: the AMS ONE11 C:68X Pro 29 is the bike that can do it all. From XC racing to fast trail riding and everything in between, its advanced carbon chassis and carefully selected components make this a fast and fun way to get from A to B off-road.

Features

• C:68X® Carbon Fiber Technology: Combining all our expertise from carbon frame building into the ultimate material, C:68X® carbon uses the optimum blend of fibre and nano particle-infused resin. Precision Advanced Twin Mold manufacturing means we can avoid bonded sleeves or inserts, too. It's the new benchmark for light, stiff and strong.
• FSP4Link: Suspension kinematics is vital to your bike's performance. At CUBE we use the FSP 4-Link for all our full suspension bikes, with a chainstay pivot and four bar suspension design. It's a proven method for creating active rear wheel travel independent of pedalling or braking forces. We carefully refine pivot placement for each bike depending on its intended use, so you can be sure of outstanding suspension performance on the trail.
• Adjustable headset angle: When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
• Universal Derailleur Hanger: One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
• Advanced Twin Mold: With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

Specifications

• Frame: C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
• Fork: RockShox Recon Gold RL Air, Tapered, 15x110mm, 120mm
• Shock: RockShox Deluxe Select+, 190x42.5mm
• Shock Hardware: Front: 26x8mm, Rear: 30x8mm
• Headset: ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
• Stem: Newmen Evolution 318.4, 31.8mm
• Handlebar: Newmen Evolution SL 318.25, 760mm
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• Shifters: Shimano XT SL-M8100-R
• Brakes: Magura MT Thirty, Hydr. Disc Brake (180/180)
• Bottom Bracket: Shimano BB-MT500PA, 92mm Pressfit
• Crankset: Shimano XT FC-M8100, 32T, Boost
• Chainring: 32T
• Cassette: Shimano SLX CS-M7100, 10-51T
• Gears: 12
• Chain: Shimano CN-M6100
• Wheelset: Newmen Performance 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Tyres: Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT
• Saddle: ACID Nuance Lite
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
• Dropper: YES
• Seatpost Clamp: CUBE Screwlock, 34.9mm
• Net Weight (kg): 12,9
• Gross Weight (kg): 17,3
• Max. System Weight (kg): 115

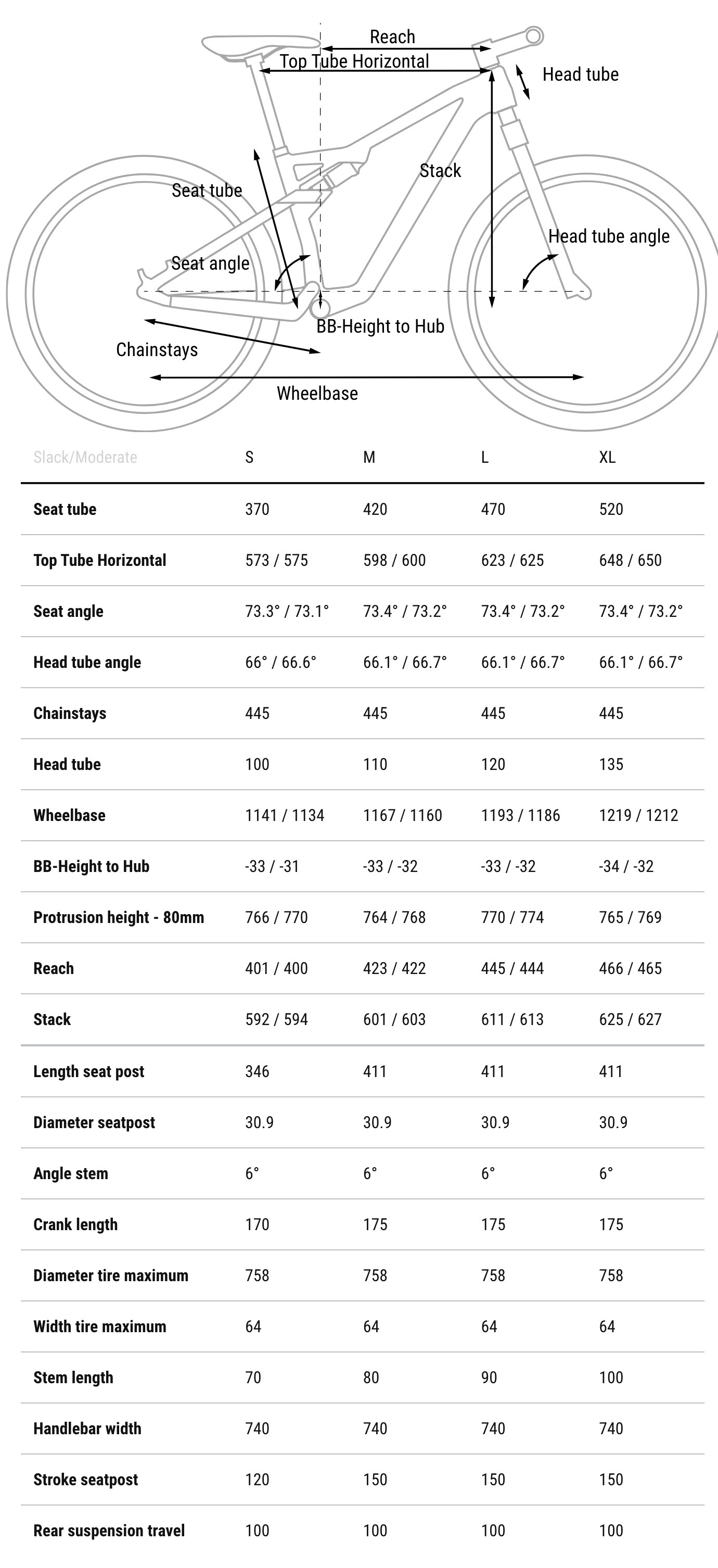

Geometry
