Like all our frames, the Stereo ONE22 is all about providing the best performance at the lowest possible weight. Hydroformed tubing is triple butted to save as much weight as possible without sacrificing strength. The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency. And it's all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times. There's even a Size Split XS option with 27.5in wheels for riders who are shorter in stature, but don't want to compromise on performance.

There's only one thing better than a great mountain bike, and that's a great mountain bike that's also comfortable. The Stereo ONE22 takes our renowned suspension kinematics and repackages it in a bike that's fun, easy to handle and comfortable for trail explorations, wherever they may be...

Features

• SizeSplit: The right bike should fit you perfectly. That's why we created SizeSplit. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.
• Boost148: A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
• Agile Trail Geometry: Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.
• Efficient Trail Control: Our Efficient Trail Control series works in the background so that everyone can have more fun on the trail. A low leverage ratio and linear compression rate are the technical way of saying that these bikes are very sensitive to trail obstacles, whilst remaining insensitive to pedal-induced bob and giving a full range of travel.
• Advanced Hydroforming: Our high end aluminium frame models are built using Advanced Hydroforming. This manufacturing process uses high pressure fluid to change an aluminium tube's shape, making the best use of the material's properties and maximising strength whilst miminising weight. It all helps reduce the number of welds, resulting in a frame that performs and looks better in every way.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, 2-Bolt ISCG05, Boost 148, UDH™

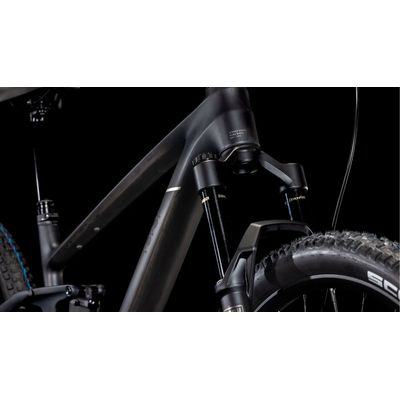

• Fork: RockShox Pike Select+, Charger 3.1 RC2, Tapered, 15x110mm, 130mm

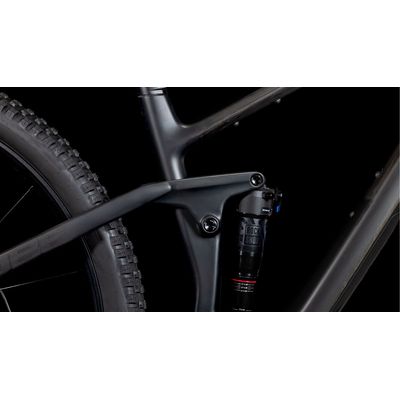

• Shock: RockShox Deluxe Select+ RT, 190x45mm, Rebound Adjust, Threshold
• Shock Hardware: Top: 40x8mm, Bottom: 22.2x8mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Stem: CUBE Stereo Stem w/ Cable Routing
• Handlebar: CUBE Rise Trail Bar, 760mm
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Sram X0 Eagle AXS™ Transmission, 12-Speed
• Shifters: Sram AXS™ Pod Controller
• Brakes: Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (180/180)
• Bottom Bracket: Sram DUB MTB Wide, 73mm BSA

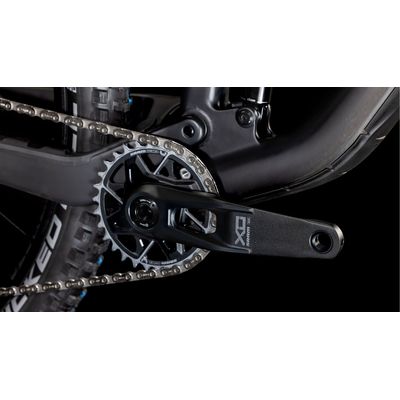

• Crankset: Sram X0 Eagle™ Transmission, 30T
• Chainring: 30T
• Cassette: Sram XS-1275, 10-52T
• Gears: 12
• Chain: Sram GX Eagle™ Transmission
• Wheelset: Newmen Beskar 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Front Tyre: Schwalbe Nobby Nic, Super Ground, Addix Speedgrip, Kevlar, 2.4
• Rear Tyre: Schwalbe Wicked Will, Super Ground, Addix Speedgrip, Kevlar, 2.4
• Saddle: ACID Nuance Lite
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
• Dropper: YES
• Seatpost Clamp: CUBE Semi-Integrated
• Net Weight (kg): 12,6
• Gross Weight (kg): 17,1
• Max. System Weight (kg): 115
