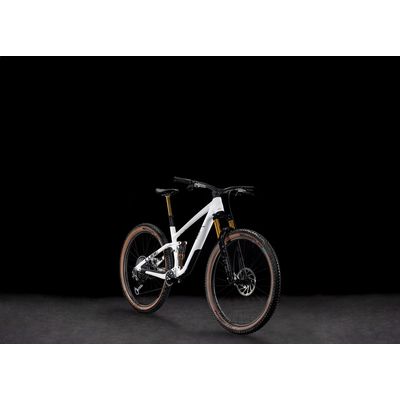

Like all our frames, the Stereo ONE22 is all about providing the best performance at the lowest possible weight. Hydroformed tubing is triple butted to save as much weight as possible without sacrificing strength. The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency. And it's all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times. There's even a Size Split XS option with 27.5in wheels for riders who are shorter in stature, but don't want to compromise on performance.

There's only one thing better than a great mountain bike, and that's a great mountain bike that's also comfortable. The Stereo ONE22 takes our renowned suspension kinematics and repackages it in a bike that's fun, easy to handle and comfortable for trail explorations, wherever they may be...

Features

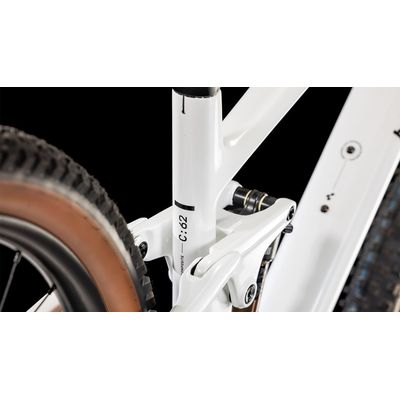

• C:62® Carbon Fiber Technology: Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.
• Adjustable headset angle: When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
• Boost148: A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
• Agile Trail Geometry: Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.
• Efficient Trail Control: Our Efficient Trail Control series works in the background so that everyone can have more fun on the trail. A low leverage ratio and linear compression rate are the technical way of saying that these bikes are very sensitive to trail obstacles, whilst remaining insensitive to pedal-induced bob and giving a full range of travel.
• Universal Derailleur Hanger: One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
• Advanced Twin Mold: With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

Specifications

• Frame: C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 140mm travel

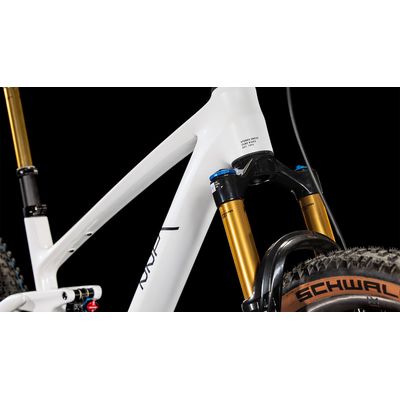

• Fork: Fox 34 Float Factory GRIP X, Tapered, 15x110mm, 140mm, Kashima Coated

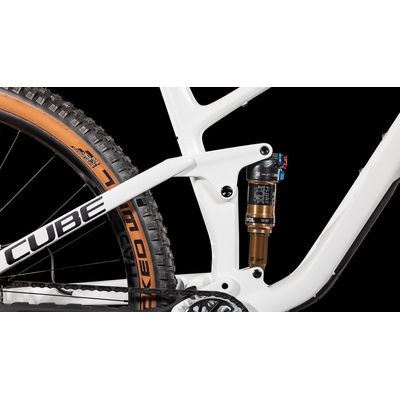

• Shock: Fox Float Factory, 185x52.5mm, 2-Pos. Lever, Kashima Coated
• Shock Hardware: Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

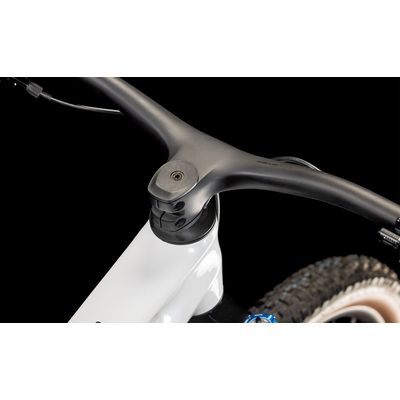

• Stem: CUBE Stereo Stem w/ Cable Routing
• Handlebar: Newmen Evolution SL 318.25, 780mm
• Grips: ACID Disrupt, Soft Compound
• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• Chain Guide: MRP 1X Chain Guide
• Shifters: Shimano XT SL-M8100-IR, Direct Attach
• Brakes: Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
• Bottom Bracket: Praxis M30, 73mm BSA, sealed Enduro™, Bearings

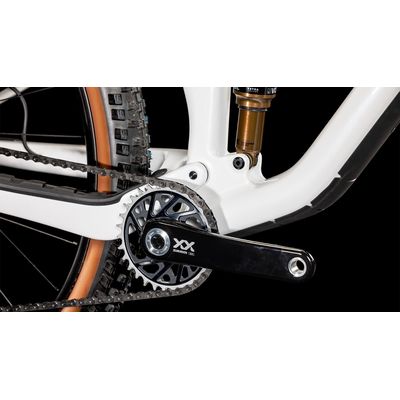

• Crankset: Praxis Girder Carbon, Boost, 30T, sealed Enduro™ Bearings
• Chainring: 30T
• Cassette: Shimano SLX CS-M7100, 10-51T
• Gears: 12
• Chain: Shimano CN-M6100
• Wheelset: Newmen Beskar 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Tyres: Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT
• Saddle: ACID Nuance Lite
• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
• Dropper: YES
• Seatpost Clamp: CUBE Semi-Integrated
• Net Weight (kg): 13,3
• Gross Weight (kg): 18,05
• Max. System Weight (kg): 115
